ARM Cortex-A76 Core User Manual

B2.82 LORN_EL1, LORegion Number Register, EL1
The LORN_EL1 register holds the number of the LORegion described in the current LORegion
descriptor selected by LORC_EL1.DS.
Bit field descriptions
LORN_EL1 is a 64-bit register and is part of the Virtual memory control registers functional group.
63 0
RES0
12
Num

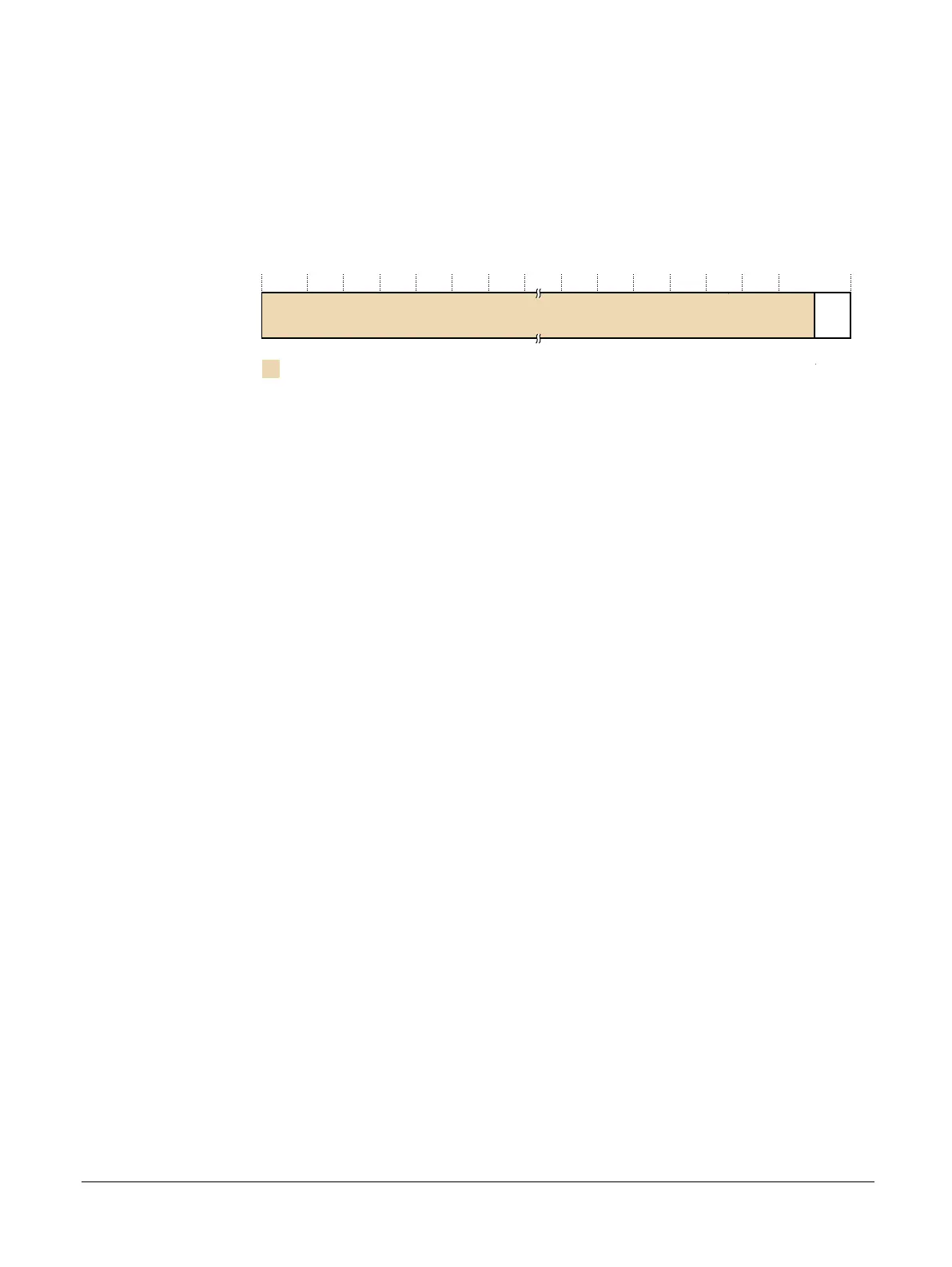

Figure B2-66 LORN_EL1 bit assignments
[63:2]
Reserved, RES0.
Num, [1:0]
Indicates the LORegion number.
Configurations
RW fields in this register reset to architecturally UNKNOWN values.
Bit fields and details that are not provided in this description are architecturally defined. See the
Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
