ARM Cortex-A76 Core User Manual

B4.11 ICC_SRE_EL3, Interrupt Controller System Register Enable register, EL3
ICC_SRE_EL3 controls whether the System register interface or the memory-mapped interface to the
GIC CPU interface is used for EL3.
Bit field descriptions
ICC_SRE_EL3 is a 32-bit register and is part of:
• The GIC system registers functional group.
• The Security registers functional group.
• The GIC control registers functional group.
31
0
12
3
SRE
DFB
DIB
RES0
4
Enable

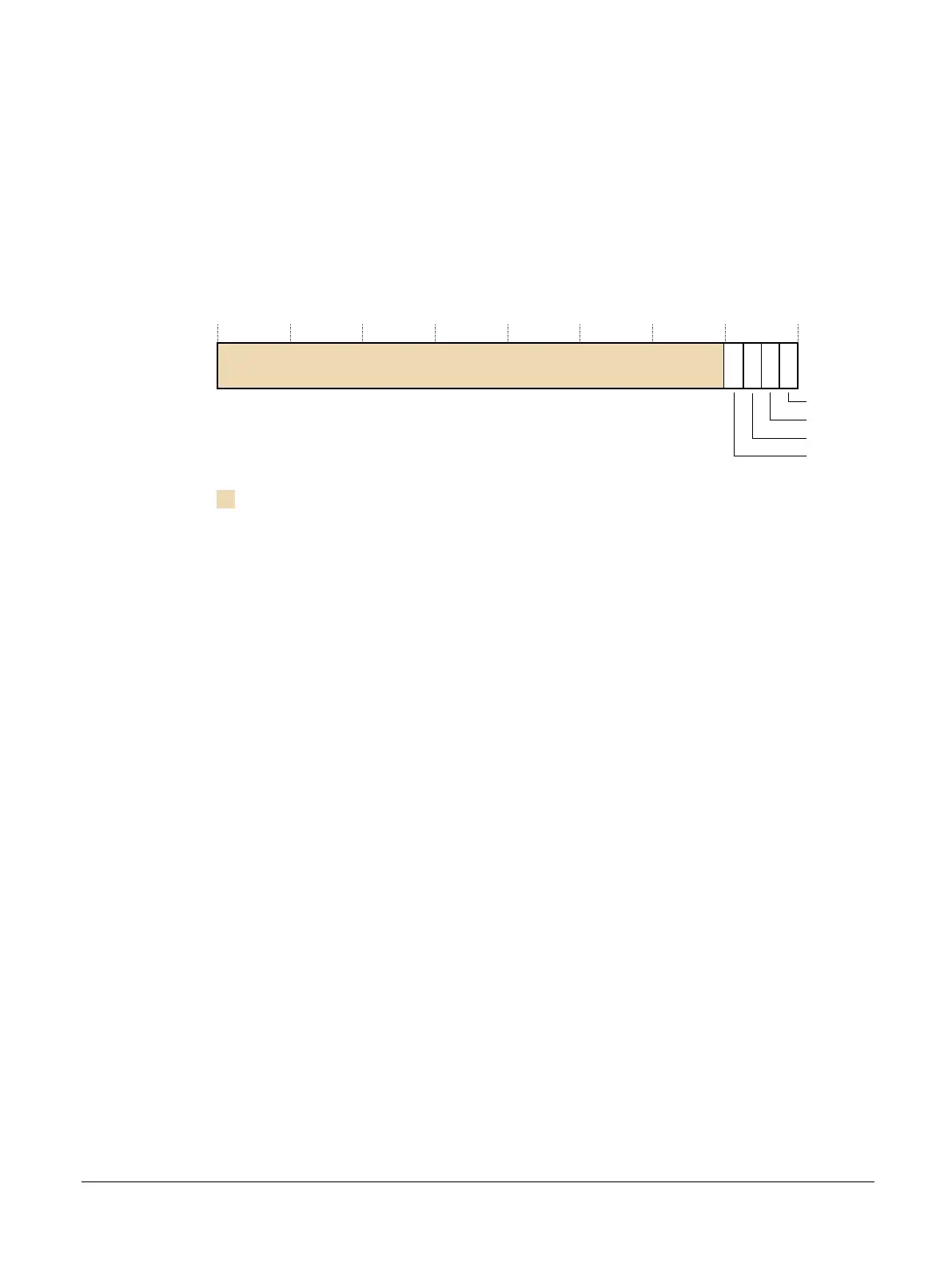

Figure B4-7 ICC_SRE_EL3 bit assignments
RES0, [31:4]
Reserved, RES0.
Enable, [3]
Enables lower Exception level access to ICC_SRE_EL1 and ICC_SRE_EL2. The value is:
1 • Secure EL1 accesses to Secure ICC_SRE_EL1 do not trap to EL3.
• EL2 accesses to Non-secure ICC_SRE_EL1 and ICC_SRE_EL2 do not trap to
EL3.
• Non-secure EL1 accesses to ICC_SRE_EL1 do not trap to EL3.
This bit is RAO/WI.
DIB, [2]
Disable IRQ bypass. The possible values are:
0 IRQ bypass enabled.
1 IRQ bypass disabled.
DFB, [1]
Disable FIQ bypass. The possible values are:
0 FIQ bypass enabled.
1 FIQ bypass disabled.
SRE, [0]
System Register Enable. The value is:
1 The System register interface for the current Security state is enabled.
B4 GIC registers
B4.11 ICC_SRE_EL3, Interrupt Controller System Register Enable register, EL3
