ARM Cortex-A76 Core User Manual

D9.48 TRCLSR, Software Lock Status Register
The TRCLSR determines whether the software lock is implemented, and indicates the current status of
the software lock.
Bit field descriptions
The TRCLSR is a 32-bit register.
31 1 0
SLK
2
SLI
3
nTT
RES0

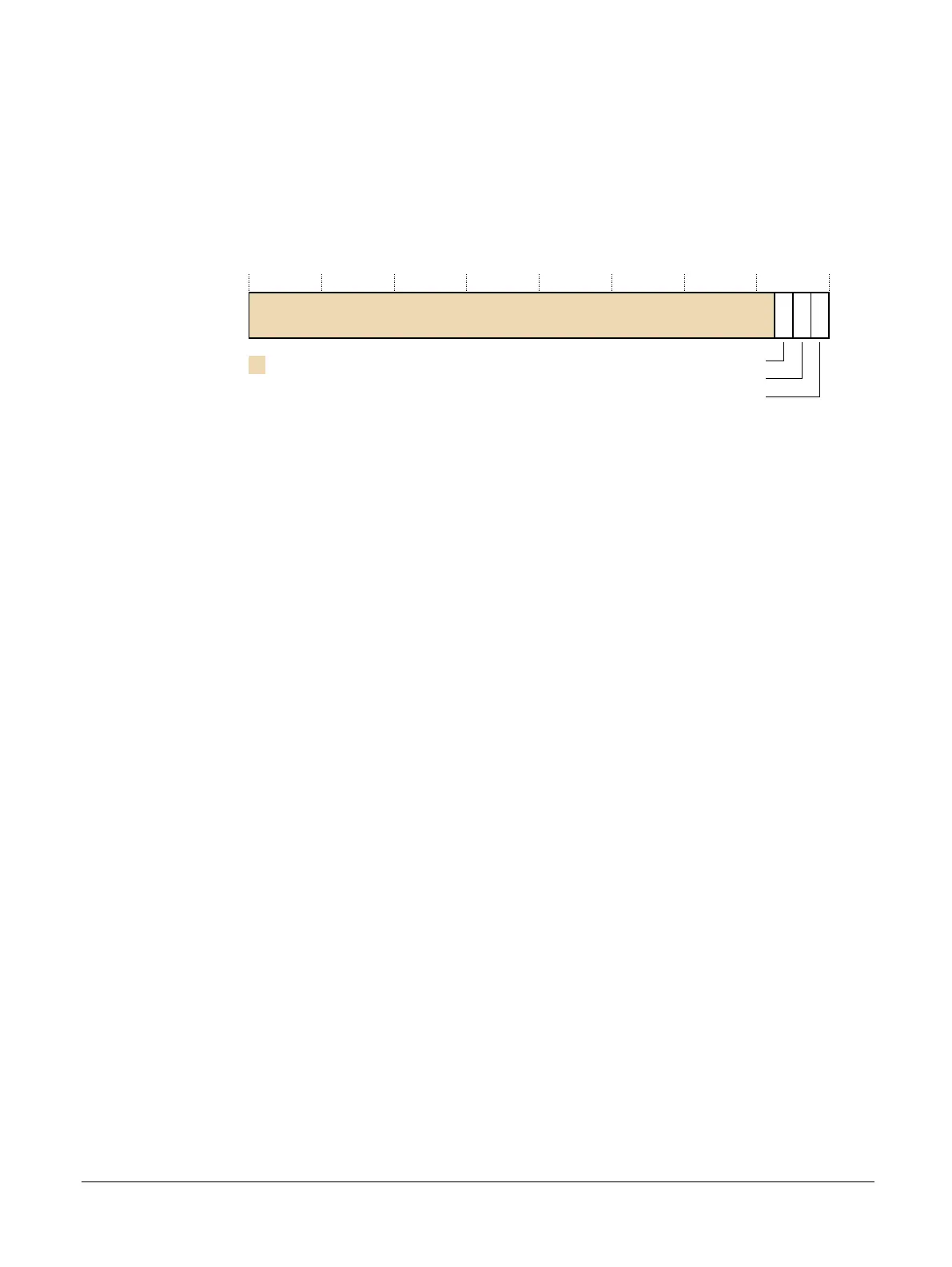

Figure D9-46 TRCLSR bit assignments
RES0, [31:3]
RES0 Reserved.
nTT, [2]
Indicates size of TRCLAR:
0 TRCLAR is always 32 bits.
SLK, [1]
Software lock status:
0 Software lock is clear.
1 Software lock is set.
SLI, [0]
Indicates whether the software lock is implemented on this interface.
1 Software lock is implemented on this interface.
Bit fields and details not provided in this description are architecturally defined. See the Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
The TRCLSR can be accessed through the external debug interface, offset 0xFB4.
D9 ETM registers
D9.48 TRCLSR, Software Lock Status Register
100798_0300_00_en Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
D9-558
Non-Confidential
