D9.68 TRCSTATR, Status Register

The TRCSTATR indicates the ETM trace unit status.

Bit field descriptions

The TRCSTATR is a 32-bit register.

31 1 0

IDLE

PMSTABLE

RES0

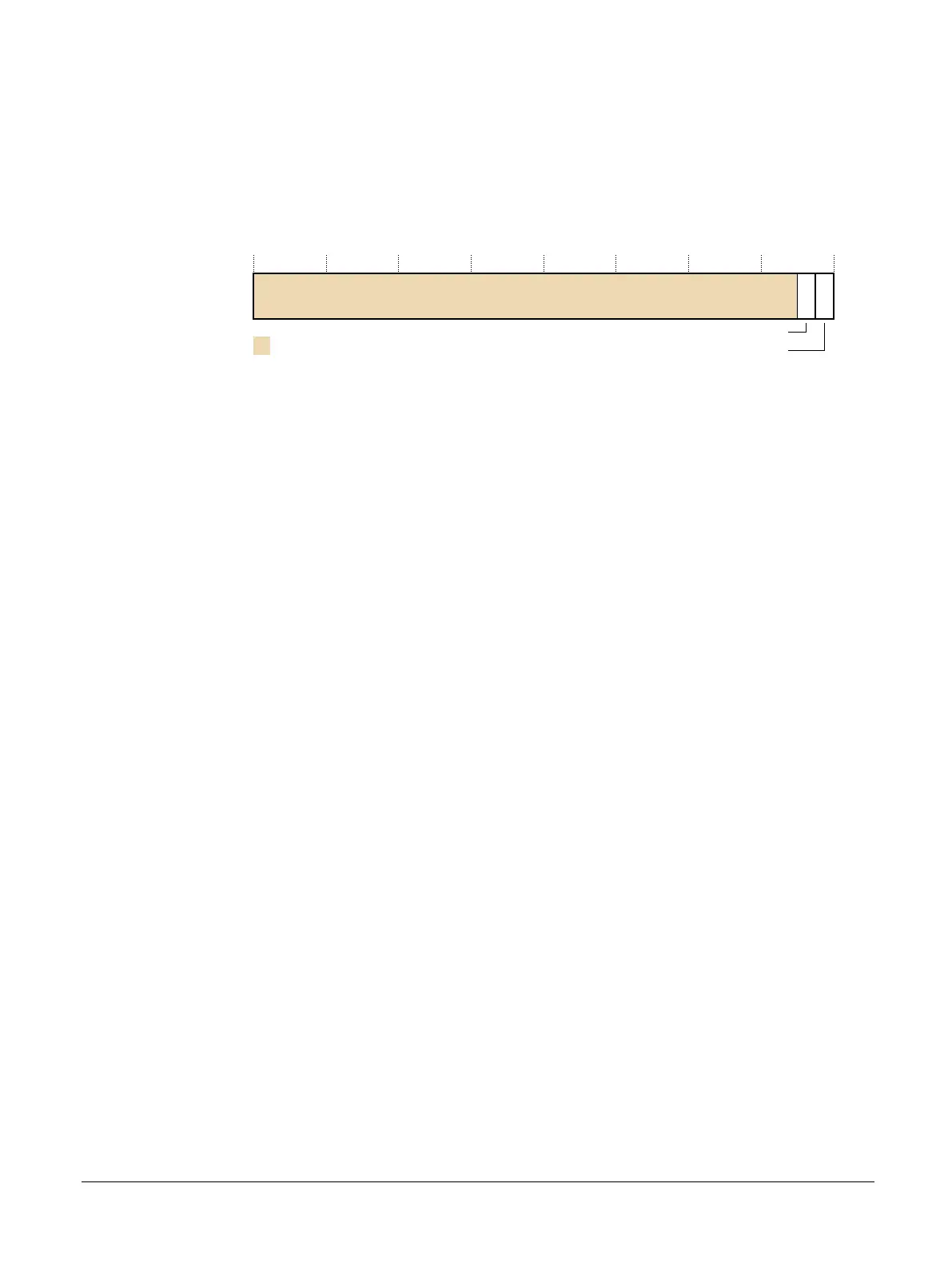

Figure D9-65 TRCSTATR bit assignments

RES0, [31:2]

RES0 Reserved.

PMSTABLE, [1]

Indicates whether the ETM trace unit registers are stable and can be read:

0 The programmers model is not stable.

1 The programmers model is stable.

IDLE, [0]

Idle status:

0 The ETM trace unit is not idle.

1 The ETM trace unit is idle.

Bit fields and details not provided in this description are architecturally defined. See the Arm

Architecture Reference Manual Armv8, for Armv8-A architecture profile.

The TRCSTATR can be accessed through the external debug interface, offset 0x00C.

D9 ETM registers

D9.68 TRCSTATR, Status Register

reserved.

D9-579
