ARM Cortex-A76 Core User Manual

B2.32 CSSELR_EL1, Cache Size Selection Register, EL1
CSSELR_EL1 selects the current Cache Size ID Register (CCSIDR_EL1), by specifying:
• The required cache level.
• The cache type, either instruction or data cache.
For details of the CCSIDR_EL1, see B2.18 CCSIDR_EL1, Cache Size ID Register, EL1 on page B2-159.
Bit field descriptions
CSSELR_EL1 is a 32-bit register, and is part of the Identification registers functional group.
InD
31 4 3 1 0
Level
RES0

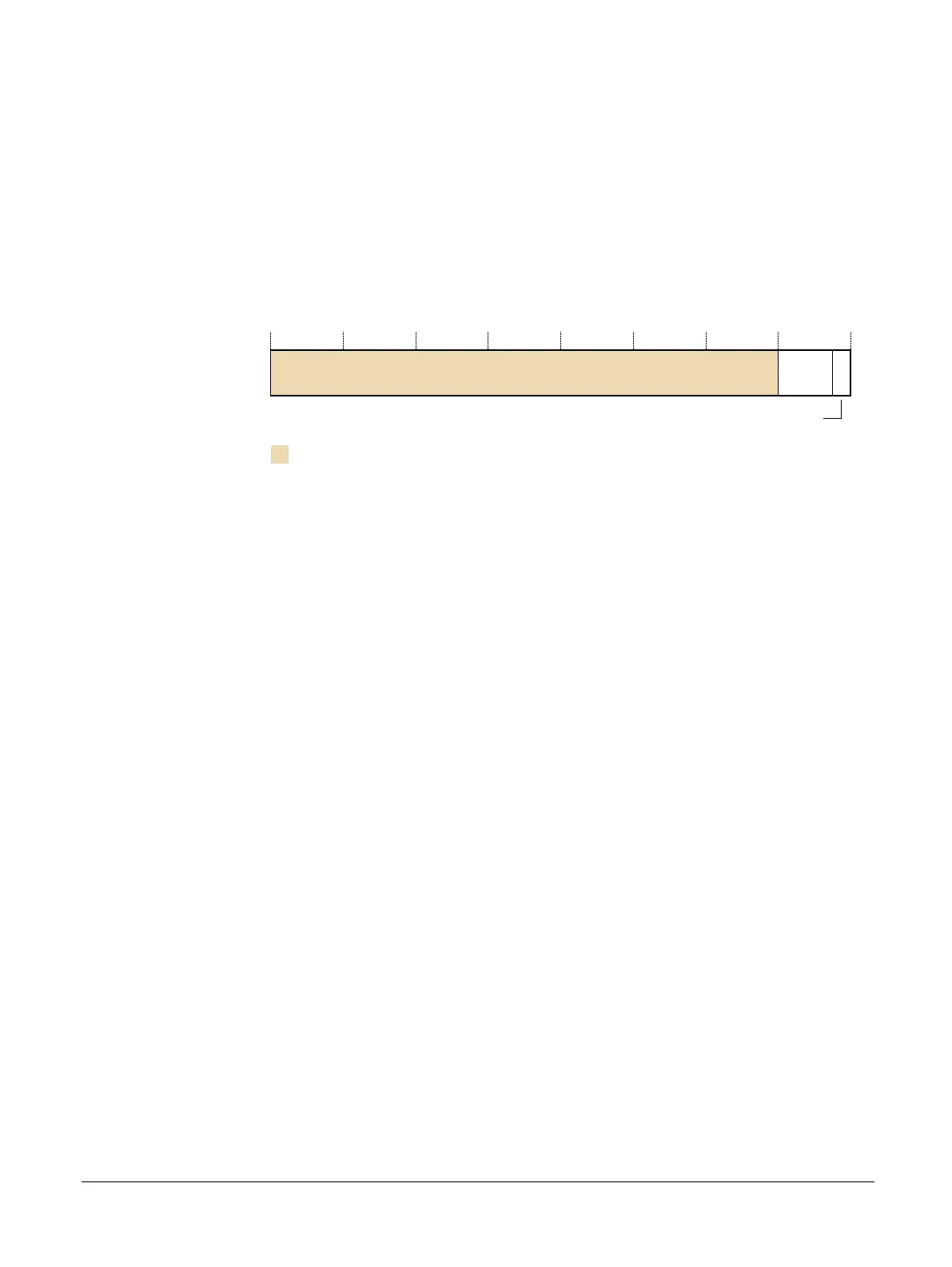

Figure B2-28 CSSELR_EL1 bit assignments
[31:4]
RES0 Reserved.
Level, [3:1]
Cache level of required cache:
000 L1.
001 L2.
010 L3, if present.
The combination of Level=001 and InD=1 is reserved.
The combinations of Level and InD for 0100 to 1111 are reserved.
InD, [0]
Instruction not Data bit:
0 Data or unified cache.
1 Instruction cache.
The combination of Level=001 and InD=1 is reserved.
The combinations of Level and InD for 0100 to 1111 are reserved.
Configurations
If a cache level is missing but CSSELR_EL1 selects this level, then a CCSIDR_EL1 read
returns an UNKNOWN value.
Bit fields and details not provided in this description are architecturally defined. See the Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
B2 AArch64 system registers
B2.32 CSSELR_EL1, Cache Size Selection Register, EL1
100798_0300_00_en Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
B2-190
Non-Confidential

ARM Cortex-A76 Core Specifications

General

Architecture	ARMv8.2-A
Microarchitecture	Cortex-A76
Pipeline Depth	13 stages
Frequency	Up to 3.0 GHz
Process Technology	7nm
Core Type	Out-of-order
NEON	Yes
Power Efficiency	Improved over Cortex-A75
Performance Improvement	35% over Cortex-A75
Core Count	1-4 cores per cluster
ISA Support	AArch64 and AArch32
Branch Prediction	Yes
L1 Data Cache	32KB, per core
L2 Cache	256KB or 512KB, per core
L3 Cache	Up to 4MB
Memory Support	LPDDR4, LPDDR4X, DDR4
DynamIQ Shared Unit (DSU)	DynamIQ Shared Unit (DSU)
Cryptography Extensions	Yes
Virtualization Support	Yes
L1 Cache	64 KB per core
