ARM Cortex-A76 Core User Manual

D9.32 TRCIDR3, ID Register 3
The TRCIDR3 indicates:
• Whether TRCVICTLR is supported.
• The number of cores available for tracing.
• If an exception level supports instruction tracing.
• The minimum threshold value for instruction trace cycle counting.
• Whether the synchronization period is fixed.
• Whether TRCSTALLCTLR is supported and if so whether it supports trace overflow prevention and
supports stall control of the core.
Bit field descriptions
The TRCIDR3 is a 32-bit register.
31 025 24 16 15 1112 5 4
CCITMIN
30 28 20 192327 26
EXLEVEL_S
EXLEVEL_NS
NOOVERFLOW
NUMPROC
SYSSTALL
STALLCTL
SYNCPR
TRCERR
RES0

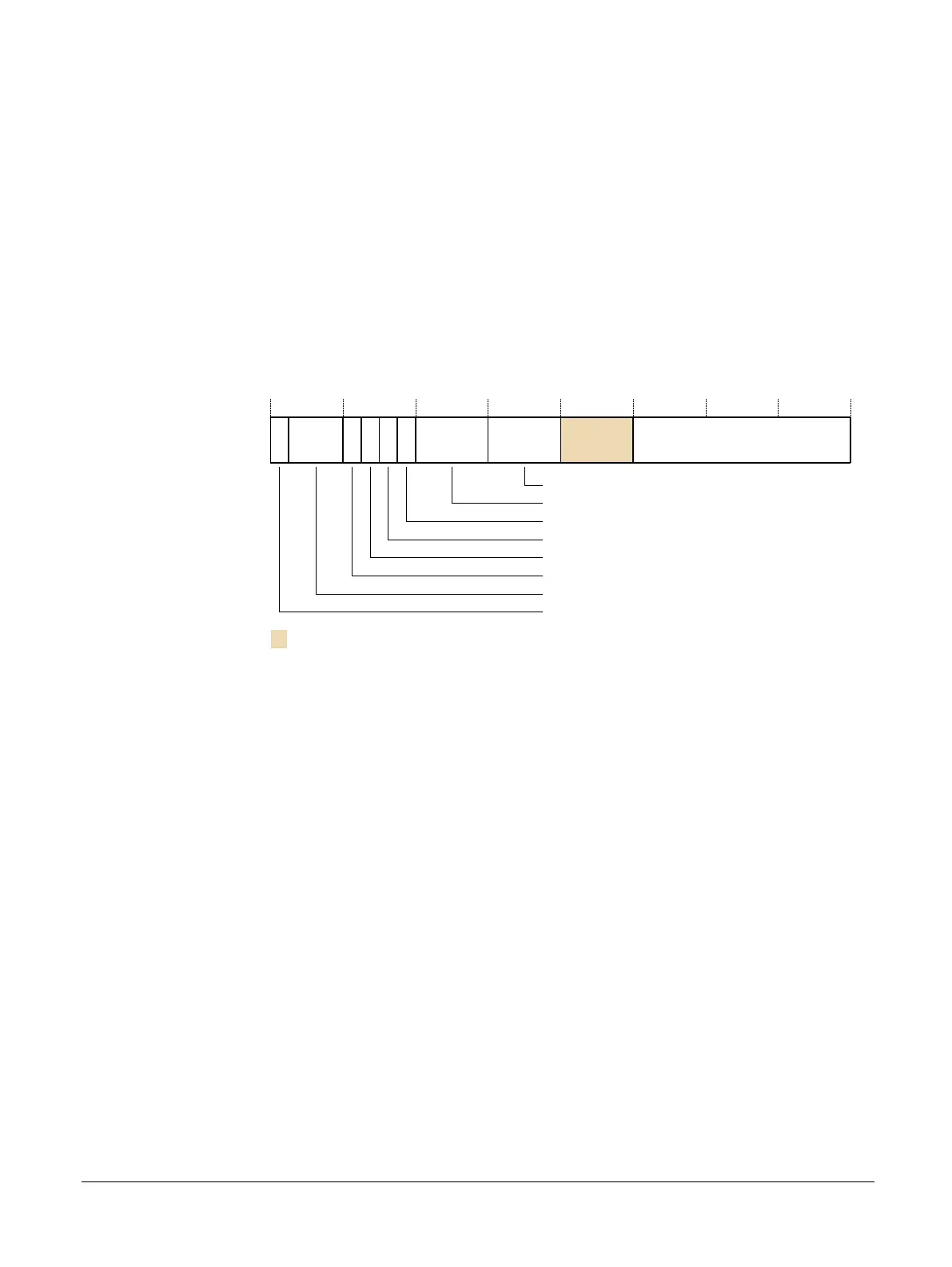

Figure D9-30 TRCIDR3 bit assignments
NOOVERFLOW, [31]
Indicates whether TRCSTALLCTLR.NOOVERFLOW is implemented:
0 TRCSTALLCTLR.NOOVERFLOW is not implemented.
NUMPROC, [30:28]
Indicates the number of cores available for tracing:
0b000 The trace unit can trace one core, ETM trace unit sharing not supported.
SYSSTALL, [27]
Indicates whether stall control is implemented:
1 The system supports core stall control.
STALLCTL, [26]
Indicates whether TRCSTALLCTLR is implemented:
1 TRCSTALLCTLR is implemented.
This field is used in conjunction with SYSSTALL.
SYNCPR, [25]
Indicates whether there is a fixed synchronization period:
D9 ETM registers
D9.32 TRCIDR3, ID Register 3
100798_0300_00_en Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
D9-539
Non-Confidential

ARM Cortex-A76 Core Specifications

General

Architecture	ARMv8.2-A
Microarchitecture	Cortex-A76
Pipeline Depth	13 stages
Frequency	Up to 3.0 GHz
Process Technology	7nm
Core Type	Out-of-order
NEON	Yes
Power Efficiency	Improved over Cortex-A75
Performance Improvement	35% over Cortex-A75
Core Count	1-4 cores per cluster
ISA Support	AArch64 and AArch32
Branch Prediction	Yes
L1 Data Cache	32KB, per core
L2 Cache	256KB or 512KB, per core
L3 Cache	Up to 4MB
Memory Support	LPDDR4, LPDDR4X, DDR4
DynamIQ Shared Unit (DSU)	DynamIQ Shared Unit (DSU)
Cryptography Extensions	Yes
Virtualization Support	Yes
L1 Cache	64 KB per core
