D9.53 TRCPDSR, Power Down Status Register
The TRCPDSR indicates the power down status of the ETM trace unit.
Bit field descriptions
The TRCPDSR is a 32-bit register.
31 6 5 4 2 1 0
OSLK
STICKYPD
POWER
RES0

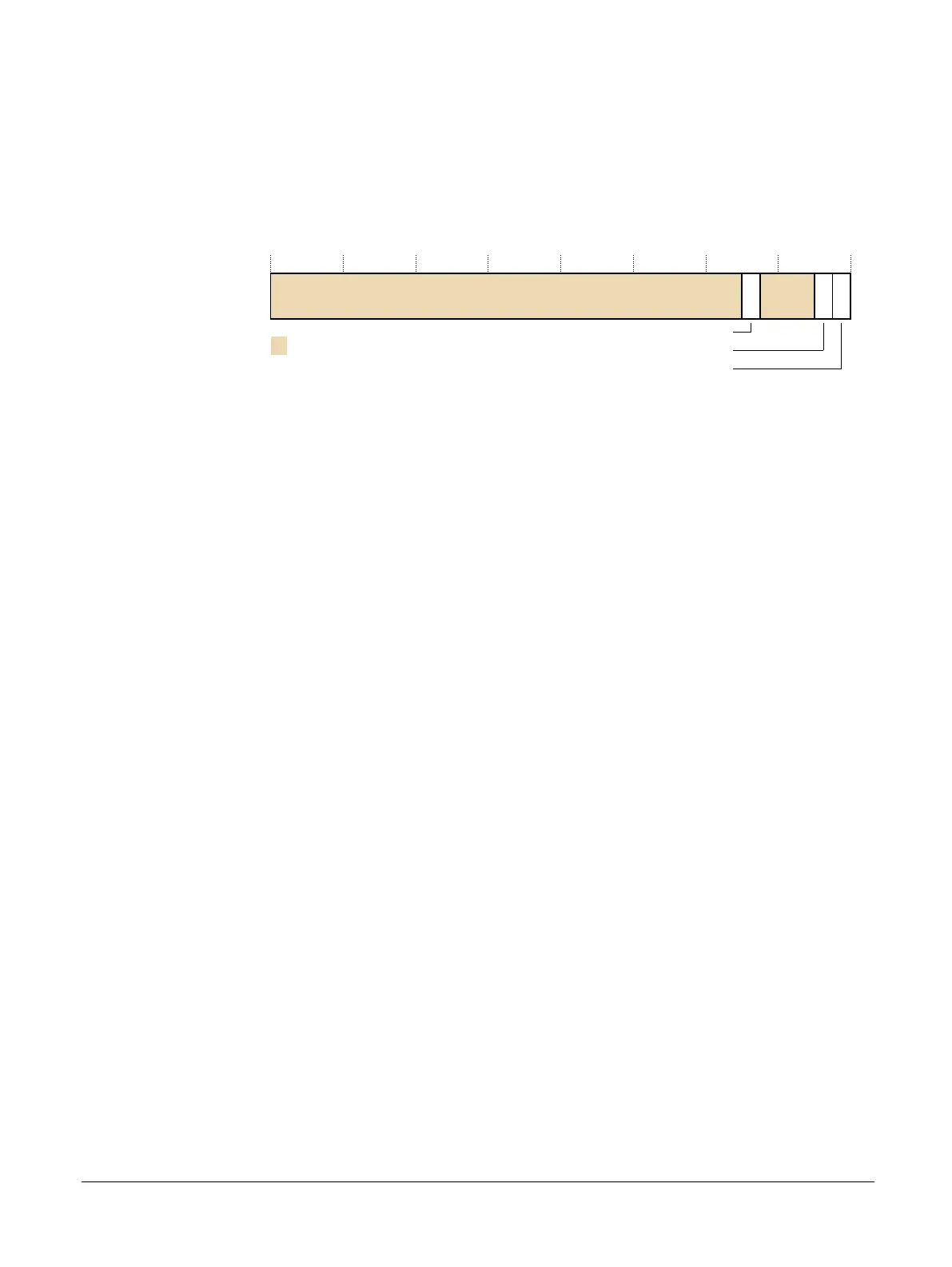

Figure D9-51 TRCPDSR bit assignments
RES0, [31:6]
RES0 Reserved.
OSLK, [5]
OS lock status.
0 The OS Lock is unlocked.
1 The OS Lock is locked.
RES0, [4:2]
RES0 Reserved.
STICKYPD, [1]
Sticky power down state.
0 Trace register power has not been removed since the TRCPDSR was last read.
1 Trace register power has been removed since the TRCPDSR was last read.
This bit is set to 1 when power to the ETM trace unit registers is removed, to indicate that
programming state has been lost. It is cleared after a read of the TRCPDSR.
POWER, [0]
Indicates the ETM trace unit is powered:
0 ETM trace unit is not powered. The trace registers are not accessible and they all
return an error response.
1 ETM trace unit is powered. All registers are accessible.
If a system implementation allows the ETM trace unit to be powered off independently of the
debug power domain, the system must handle accesses to the ETM trace unit appropriately.
Bit fields and details not provided in this description are architecturally defined. See the Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
The TRCPDSR can be accessed through the external debug interface, offset 0x314.
