ARM Cortex-A76 Core User Manual

B4.8 ICC_CTLR_EL3, Interrupt Controller Control Register, EL3
ICC_CTLR_EL3 controls aspects of the behavior of the GIC CPU interface and provides information
about the features implemented.
Bit field descriptions
ICC_CTLR_EL3 is a 32-bit register and is part of:
• The GIC system registers functional group.
• The Security registers functional group.
• The GIC control registers functional group.
31
0
125678101113141516
CBPR_EL1S
CBPR_EL1NS
PMHE
PRIbitsIDbits
SEIS
A3V
RES0
341718
nDS
EOImode_EL3
EOImode_EL1S
EOImode_EL1NS
RM

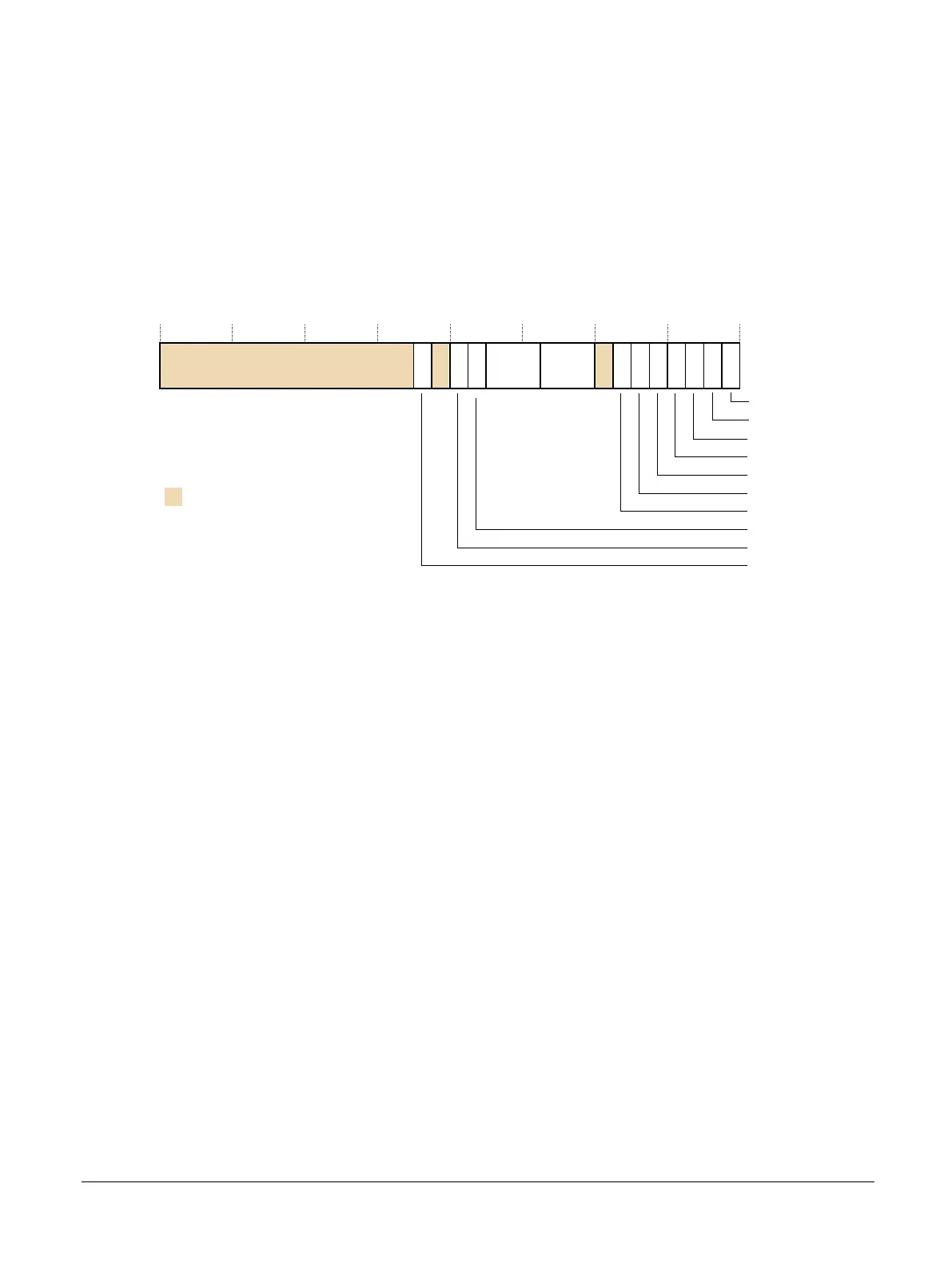

Figure B4-4 ICC_CTLR_EL3 bit assignments
RES0, [31:18]
Reserved, RES0.
nDS, [17]
Disable Security not supported. Read-only and writes are ignored. The value is:
1 The CPU interface logic does not support disabling of security, and requires that
security is not disabled.
RES0, [16]
Reserved, RES0.
A3V, [15]
Affinity 3 Valid. This bit is RAO/WI.
SEIS, [14]
SEI Support. The value is:
0 The CPU interface logic does not support generation of SEIs.
IDbits, [13:11]
Identifier bits. The value is:
0x0 The number of physical interrupt identifier bits supported is 16 bits.
This field is an alias of ICC_CTLR_EL3.IDbits.
B4 GIC registers
B4.8 ICC_CTLR_EL3, Interrupt Controller Control Register, EL3
100798_0300_00_en Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
B4-321
Non-Confidential

ARM Cortex-A76 Core Specifications

General

Architecture	ARMv8.2-A
Microarchitecture	Cortex-A76
Pipeline Depth	13 stages
Frequency	Up to 3.0 GHz
Process Technology	7nm
Core Type	Out-of-order
NEON	Yes
Power Efficiency	Improved over Cortex-A75
Performance Improvement	35% over Cortex-A75
Core Count	1-4 cores per cluster
ISA Support	AArch64 and AArch32
Branch Prediction	Yes
L1 Data Cache	32KB, per core
L2 Cache	256KB or 512KB, per core
L3 Cache	Up to 4MB
Memory Support	LPDDR4, LPDDR4X, DDR4
DynamIQ Shared Unit (DSU)	DynamIQ Shared Unit (DSU)
Cryptography Extensions	Yes
Virtualization Support	Yes
L1 Cache	64 KB per core
