ARM Cortex-A76 Core User Manual

D6.2 PMCFGR, Performance Monitors Configuration Register
The PMCFGR contains PMU specific configuration data.
Bit field descriptions
The PMCFGR is a 32-bit register.
31 17 16 15 14 13 8 7 0
N
EX
CCD
CC
Size
RES0

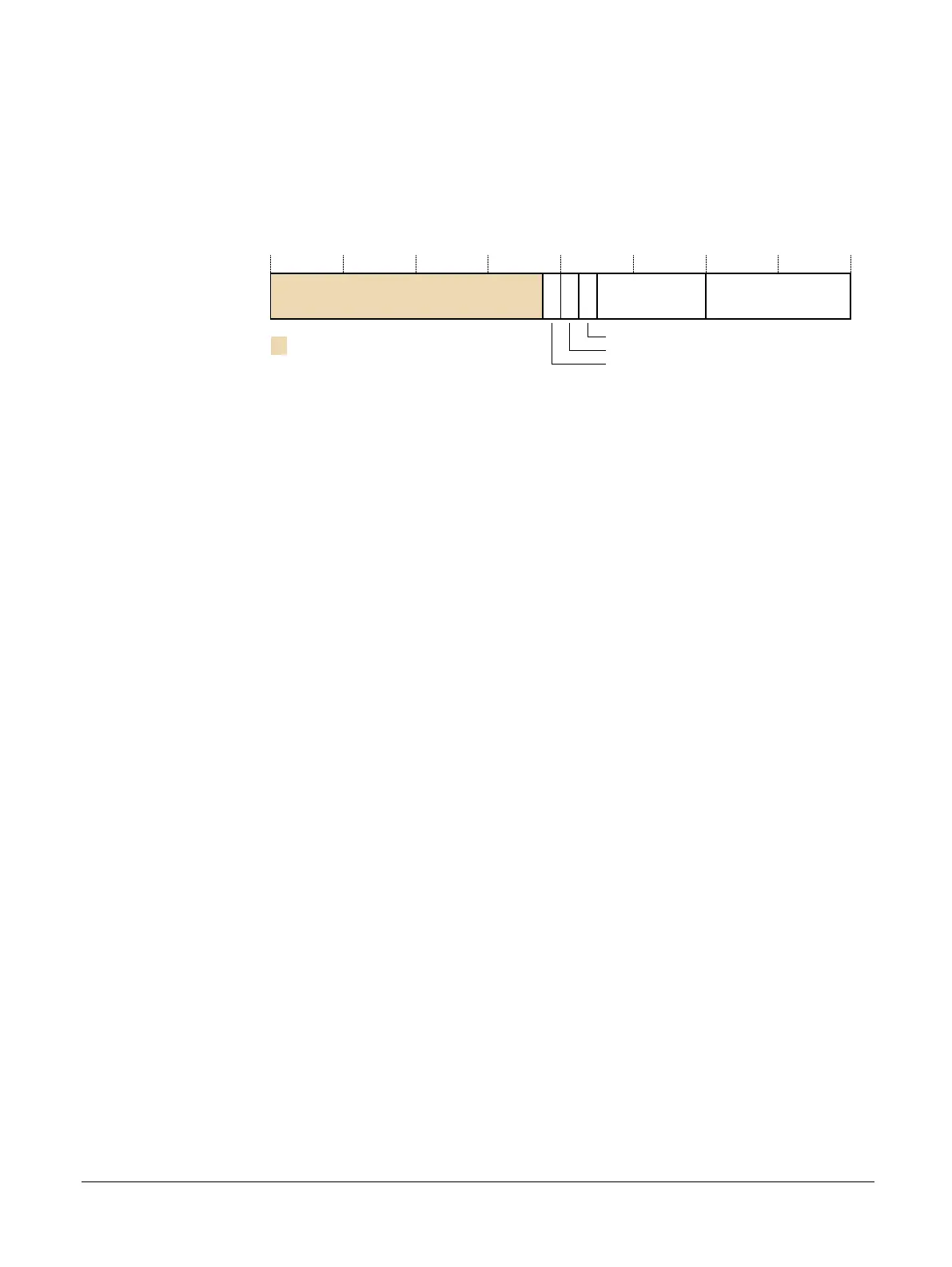

Figure D6-1 PMCFGR bit assignments
RES0, [31:17]
RES0 Reserved.
EX, [16]
Export supported. The value is:
1 Export is supported. PMCR_EL0.EX is read/write.
CCD, [15]
Cycle counter has pre-scale. The value is:
1 PMCR_EL0.D is read/write.
CC, [14]
Dedicated cycle counter supported. The value is:
1 Dedicated cycle counter is supported.
Size, [13:8]
Counter size. The value is:
0b111111 64-bit counters.
N, [7:0]
Number of event counters. The value is:
0x06 Six counters.
Bit fields and details not provided in this description are architecturally defined. See the Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
The PMCFGR can be accessed through the external debug interface, offset 0xE00.
