ARM Cortex-A76 Core User Manual

B5.8 FPSCR, Floating-Point Status and Control Register
The FPSCR provides floating-point system status information and control.
Bit field descriptions
FPSCR is a 32-bit register.
N
30 29 28 6 5 4 3 2 1
Z C V
31 08 716 1527 26 25 24 23 22 21 20 19 18
Len
AHP
DN
FZ
RMode
Stride
QC IOC
DZC
OFC
UFC
IXC
IDCFZ16
RES0

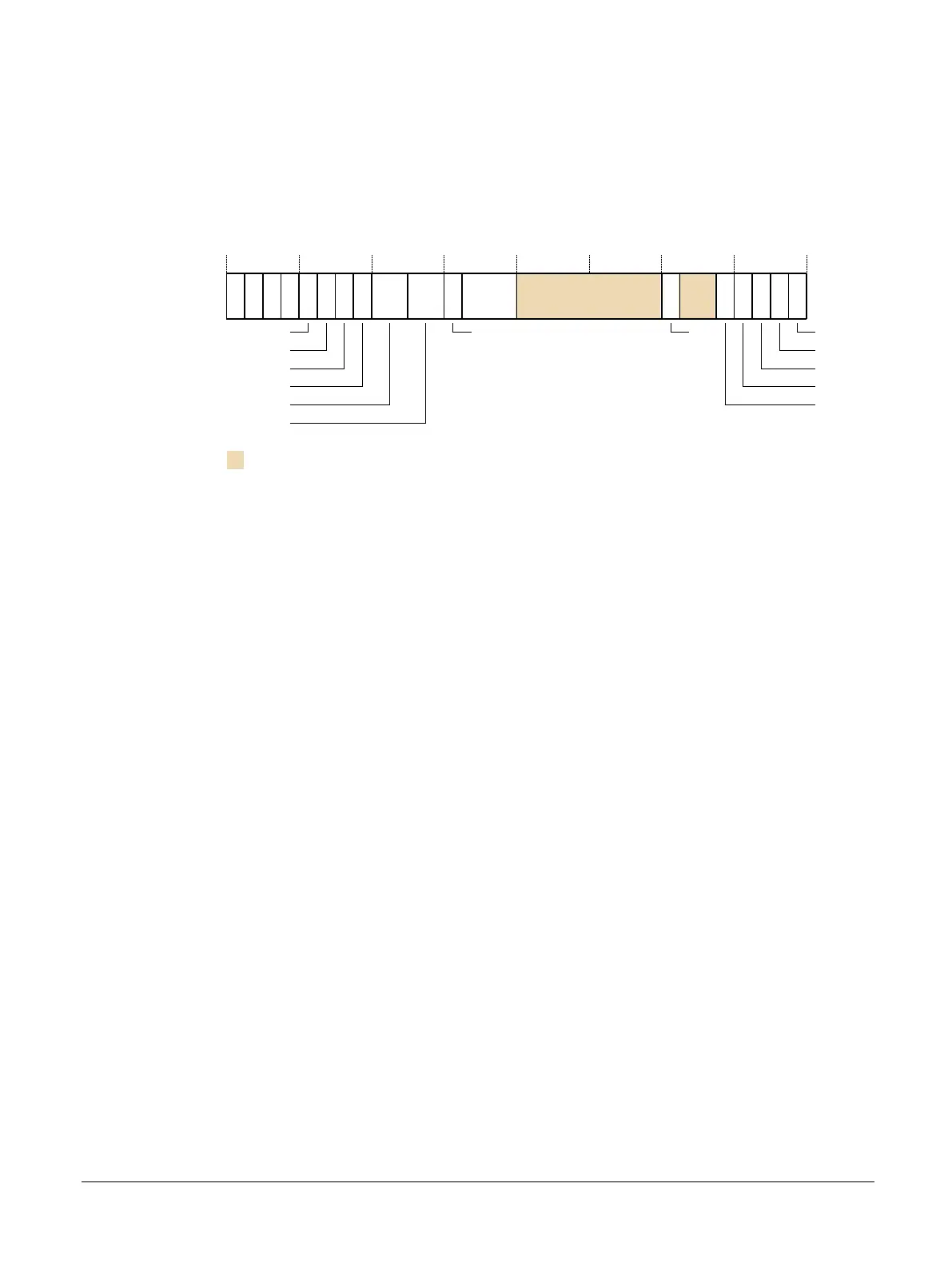

Figure B5-6 FPSCR bit assignments
N, [31]
Floating-point Negative condition code flag.
Set to 1 if a floating-point comparison operation produces a less than result.
Z, [30]
Floating-point Zero condition code flag.
Set to 1 if a floating-point comparison operation produces an equal result.
C, [29]
Floating-point Carry condition code flag.
Set to 1 if a floating-point comparison operation produces an equal, greater than, or unordered
result.
V, [28]
Floating-point Overflow condition code flag.
Set to 1 if a floating-point comparison operation produces an unordered result.
QC, [27]
Cumulative saturation bit.
This bit is set to 1 to indicate that an Advanced SIMD integer operation has saturated after 0 was
last written to this bit.
AHP, [26]
Alternative Half-Precision control bit:
0 IEEE half-precision format selected. This is the reset value.
1 Alternative half-precision format selected.
DN, [25]
Default NaN mode control bit:
B5 Advanced SIMD and floating-point registers
B5.8 FPSCR, Floating-Point Status and Control Register
100798_0300_00_en Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
B5-358
Non-Confidential

ARM Cortex-A76 Core Specifications

General

Architecture	ARMv8.2-A
Microarchitecture	Cortex-A76
Pipeline Depth	13 stages
Frequency	Up to 3.0 GHz
Process Technology	7nm
Core Type	Out-of-order
NEON	Yes
Power Efficiency	Improved over Cortex-A75
Performance Improvement	35% over Cortex-A75
Core Count	1-4 cores per cluster
ISA Support	AArch64 and AArch32
Branch Prediction	Yes
L1 Data Cache	32KB, per core
L2 Cache	256KB or 512KB, per core
L3 Cache	Up to 4MB
Memory Support	LPDDR4, LPDDR4X, DDR4
DynamIQ Shared Unit (DSU)	DynamIQ Shared Unit (DSU)
Cryptography Extensions	Yes
Virtualization Support	Yes
L1 Cache	64 KB per core
