ARM Cortex-A76 Core User Manual

B2.102 VSESR_EL2, Virtual SError Exception Syndrome Register
The VSESR_EL2 provides the syndrome value reported to software on taking a virtual SError interrupt
exception.
Bit field descriptions
VSESR_EL2 is a 64-bit register, and is part of:
• The Exception and fault handling registers functional group.
• The Virtualization registers functional group.
If the virtual SError interrupt is taken to EL1, VSESR_EL2 provides the syndrome value reported in
ESR_EL1.
VSESR_EL2 bit assignments
63 25 24
ISS
23 0
RES0
IDS

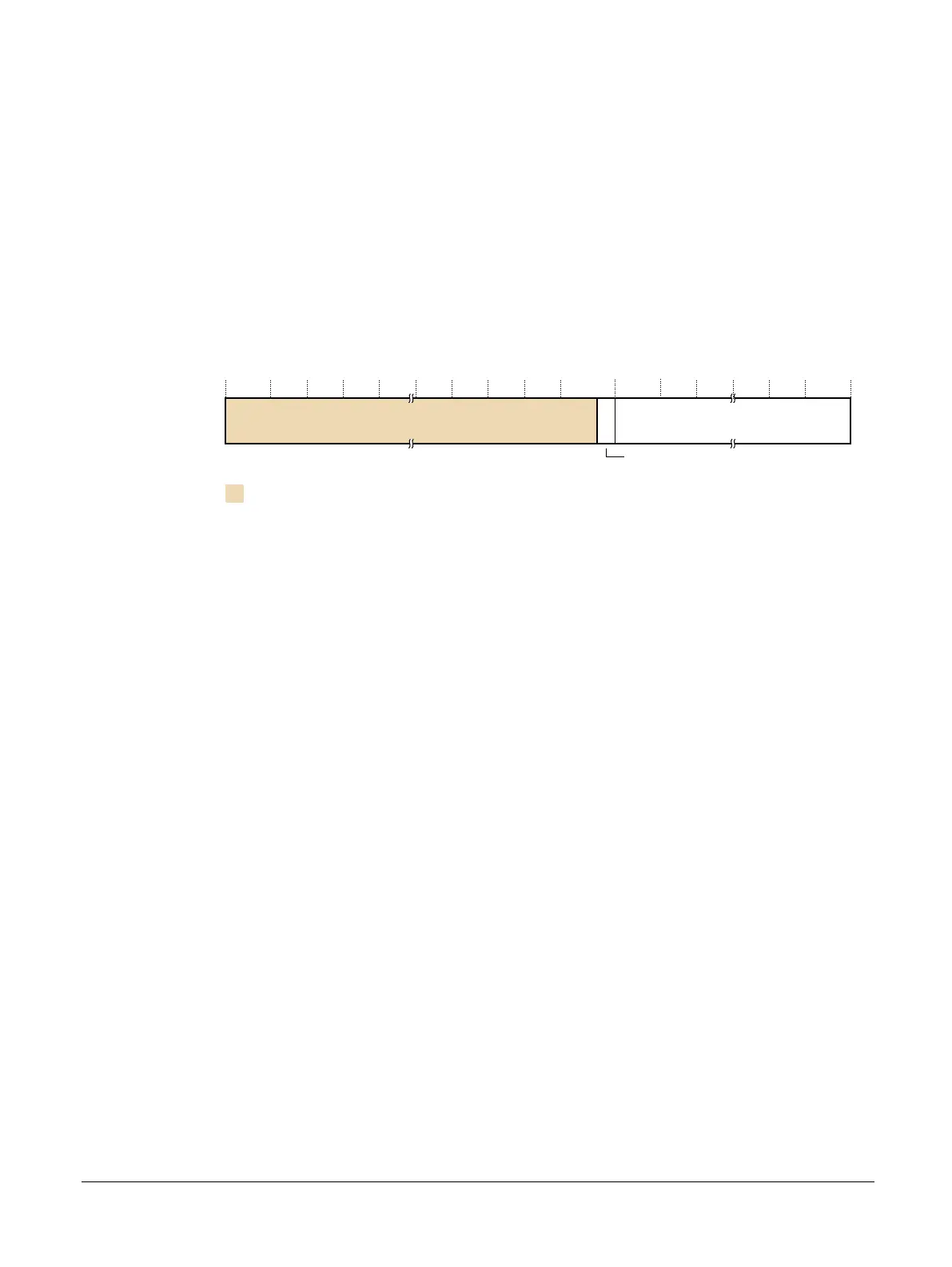

Figure B2-85 VSESR_EL2 bit assignments
RES0, [63:25]
RES0 Reserved.
IDS, [24]
Indicates whether the deferred SError interrupt was of an IMPLEMENTATION DEFINED type. See
ESR_EL1.IDS for a description of the functionality.
On taking a virtual SError interrupt to EL1 using AArch64 because HCR_EL2.VSE == 1,
ESR_EL1[24] is set to VSESR_EL2.IDS.
ISS, [23:0]
Syndrome information. See ESR_EL1.ISS for a description of the functionality.
On taking a virtual SError interrupt to EL1 using AArch32 due to HCR_EL2.VSE == 1,
ESR_EL1 [23:0] is set to VSESR_EL2.ISS.
Configurations
There are no configuration notes.
Bit fields and details that are not provided in this description are architecturally defined. See the
Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
B2 AArch64 system registers
B2.102 VSESR_EL2, Virtual SError Exception Syndrome Register
