ARM Cortex-A76 Core User Manual

B2.31 CPUPWRCTLR_EL1, Power Control Register, EL1
The CPUPWRCTLR_EL1 provides information about power control support for the core.
Bit field descriptions
CPUPWRCTLR_EL1 is a 32-bit register, and is part of the IMPLEMENTATION DEFINED registers functional
group.
31 7 610 9 0
CORE_PWRDN_EN
4
WFI_RET_CTRL
WFE_RET_CTRL
RES0
3 1

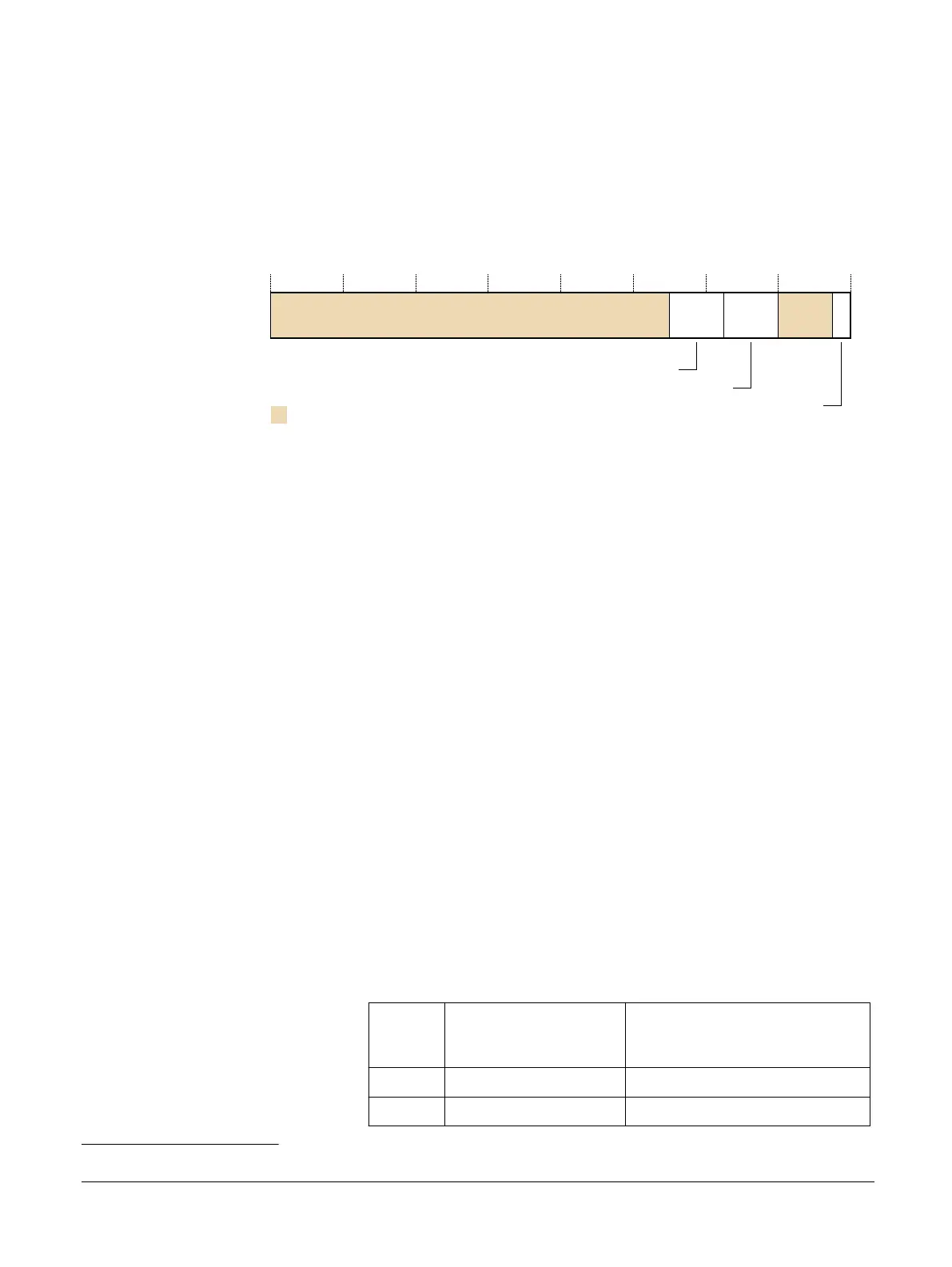

Figure B2-27 CPUPWRCTLR_EL1 bit assignments
RES0, [31:10]
RES0 Reserved.
WFE_RET_CTRL, [9:7]
CPU WFE retention control:
000 Disable the retention circuit. This is the default value, see Table B2-7 CPUPWRCTLR
Retention Control Field on page B2-188 for more retention control options.
WFI_RET_CTRL, [6:4]
CPU WFI retention control:
000 Disable the retention circuit. This is the default value, see Table B2-7 CPUPWRCTLR
Retention Control Field on page B2-188 for more retention control options.
RES0, [3:1]
RES0 Reserved.
CORE_PWRDN_EN, [0]
Indicates to the power controller using PACTIVE if the core wants to power down when it
enters WFI state.
0 No power down requested.
1 A power down is requested.
Table B2-7 CPUPWRCTLR Retention Control Field
Encoding Number of counter ticks
c
Minimum retention entry delay
(System counter at 50MHz-10MHz)
000
Disable the retention circuit Default Condition.
001
2 40ns-200ns
c
The number of system counter ticks required before the core signals retention readiness on PACTIVE to the power controller. The core does not accept a retention
entry request until this time.
B2 AArch64 system registers
B2.31 CPUPWRCTLR_EL1, Power Control Register, EL1
100798_0300_00_en Copyright © 2016–2018 Arm Limited or its affiliates. All rights
reserved.
B2-188
Non-Confidential

ARM Cortex-A76 Core Specifications

General

Architecture	ARMv8.2-A
Microarchitecture	Cortex-A76
Pipeline Depth	13 stages
Frequency	Up to 3.0 GHz
Process Technology	7nm
Core Type	Out-of-order
NEON	Yes
Power Efficiency	Improved over Cortex-A75
Performance Improvement	35% over Cortex-A75
Core Count	1-4 cores per cluster
ISA Support	AArch64 and AArch32
Branch Prediction	Yes
L1 Data Cache	32KB, per core
L2 Cache	256KB or 512KB, per core
L3 Cache	Up to 4MB
Memory Support	LPDDR4, LPDDR4X, DDR4
DynamIQ Shared Unit (DSU)	DynamIQ Shared Unit (DSU)
Cryptography Extensions	Yes
Virtualization Support	Yes
L1 Cache	64 KB per core
