B2.98 TTBR0_EL3, Translation Table Base Register 0, EL3

The TTBR0_EL3 holds the base address of the translation table for the stage 1 translation of memory

accesses from EL3.

Bit field descriptions

TTBR0_EL3 is a 64-bit register.

BADDR[47:x]

4748 063

CnP

RES0

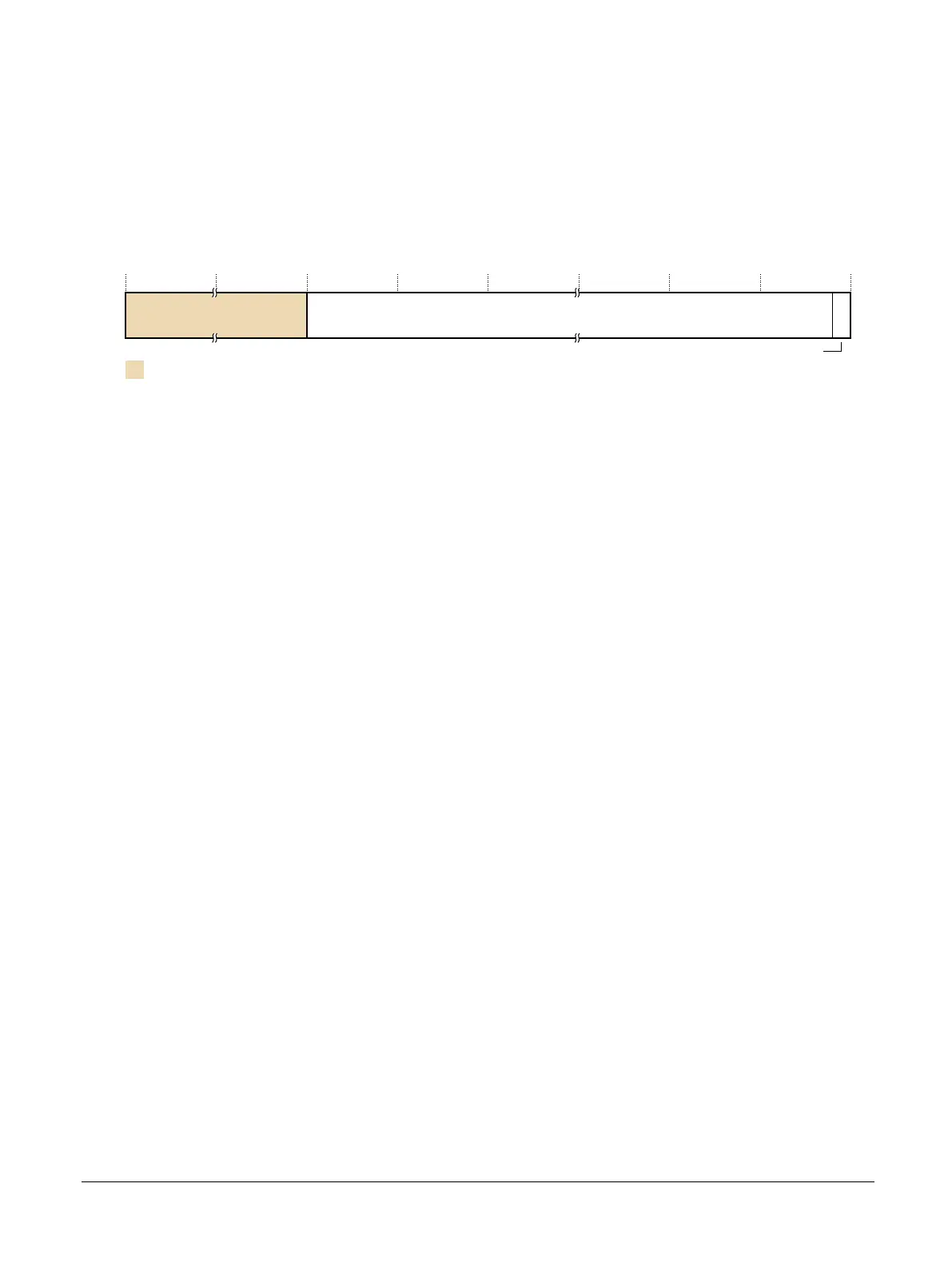

Figure B2-82 TTBR0_EL3 bit assignments

[63:48]

Reserved, RES0.

BADDR[47:x], [47:1]

Translation table base address, bits[47:x]. Bits [x-1:1] are RES0.

x is based on the value of TCR_EL1.T0SZ, the stage of translation, and the memory translation

granule size.

For instructions on how to calculate it, see the Arm

Architecture Reference Manual Armv8, for

Armv8-A architecture profile.

The value of x determines the required alignment of the translation table, that must be aligned to

bytes.

If bits [x-1:1] are not all zero, this is a misaligned translation table base address. Its effects are

CONSTRAINED UNPREDICTABLE, where bits [x-1:1] are treated as if all the bits are zero. The value

read back from those bits is the value written.

CnP, [0]

Common not Private. The possible values are:

0 CnP is not supported.

1 CnP is supported.

Configurations

There are no configuration notes.

Bit fields and details that are not provided in this description are architecturally defined. See the

Arm

Architecture Reference Manual Armv8, for Armv8-A architecture profile.

B2 AArch64 system registers

B2.98 TTBR0_EL3, Translation Table Base Register 0, EL3

reserved.

B2-283

Non-Confidential
