B2.97 TTBR0_EL2, Translation Table Base Register 0, EL2
The TTBR0_EL2 holds the base address of the translation table for the stage 1 translation of memory
accesses from EL2.
Bit field descriptions
TTBR0_EL2 is a 64-bit register, and is part of the Virtual memory control registers functional group.
BADDR[47:x]
4748 063
1
CnP
RES0

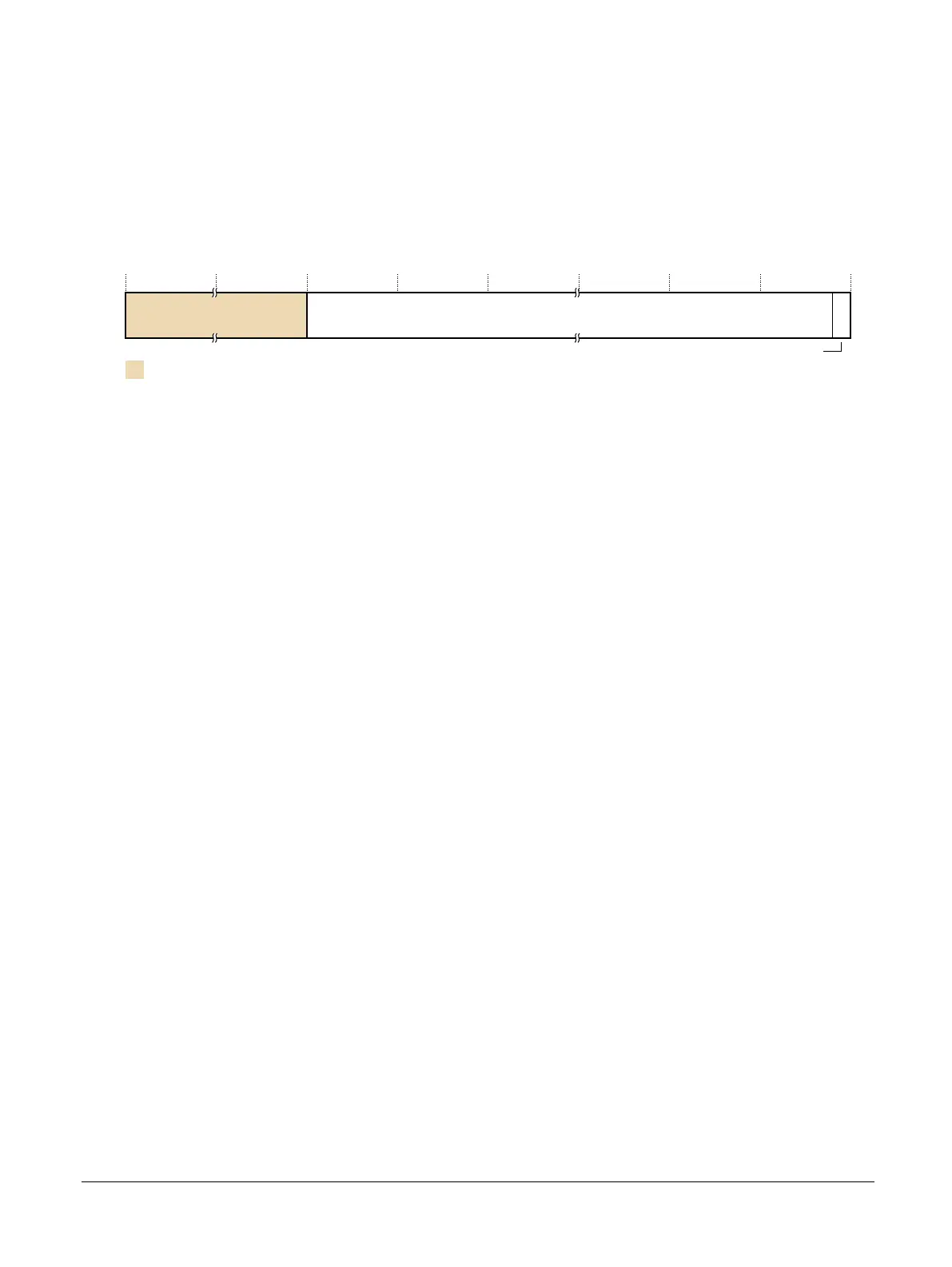

Figure B2-81 TTBR0_EL2 bit assignments
RES0, [63:48]
RES0 Reserved.
BADDR, [47:1]
Translation table base address, bits[47:x]. Bits [x-1:1] are RES0.
x is based on the value of TCR_EL2.T0SZ, the stage of translation, and the memory translation
granule size.
For instructions on how to calculate it, see the Arm
®
Architecture Reference Manual Arm
®
v8, for
Arm
®
v8-A architecture profile.
The value of x determines the required alignment of the translation table, that must be aligned to
2
x
bytes.
If bits [x-1:1] are not all zero, this is a misaligned translation table base address. Its effects are
CONSTRAINED UNPREDICTABLE, where bits [x-1:1] are treated as if all the bits are zero. The value
read back from those bits is the value written.
CnP, [0]
Common not Private. The possible values are:
0 CnP is not supported.
1 CnP is supported.
Configurations
When the Virtualization Host Extension is activated, TTBR0_EL2 has the same bit assignments
as TTBR0_EL1.
Bit fields and details that are not provided in this description are architecturally defined. See the
Arm
®
Architecture Reference Manual Armv8, for Armv8-A architecture profile.
