ARM Cortex-A76 Core User Manual

B5.3 FPSR, Floating-point Status Register
The FPSR provides floating-point system status information.
Bit field descriptions
FPSR is a 32-bit register.
31 08 7
QC IDC
UFC
27 6 5 4 3 2 1
DZC
IXC
OFC
V
C
Z
N
30 29 28
IOC
26
RES0

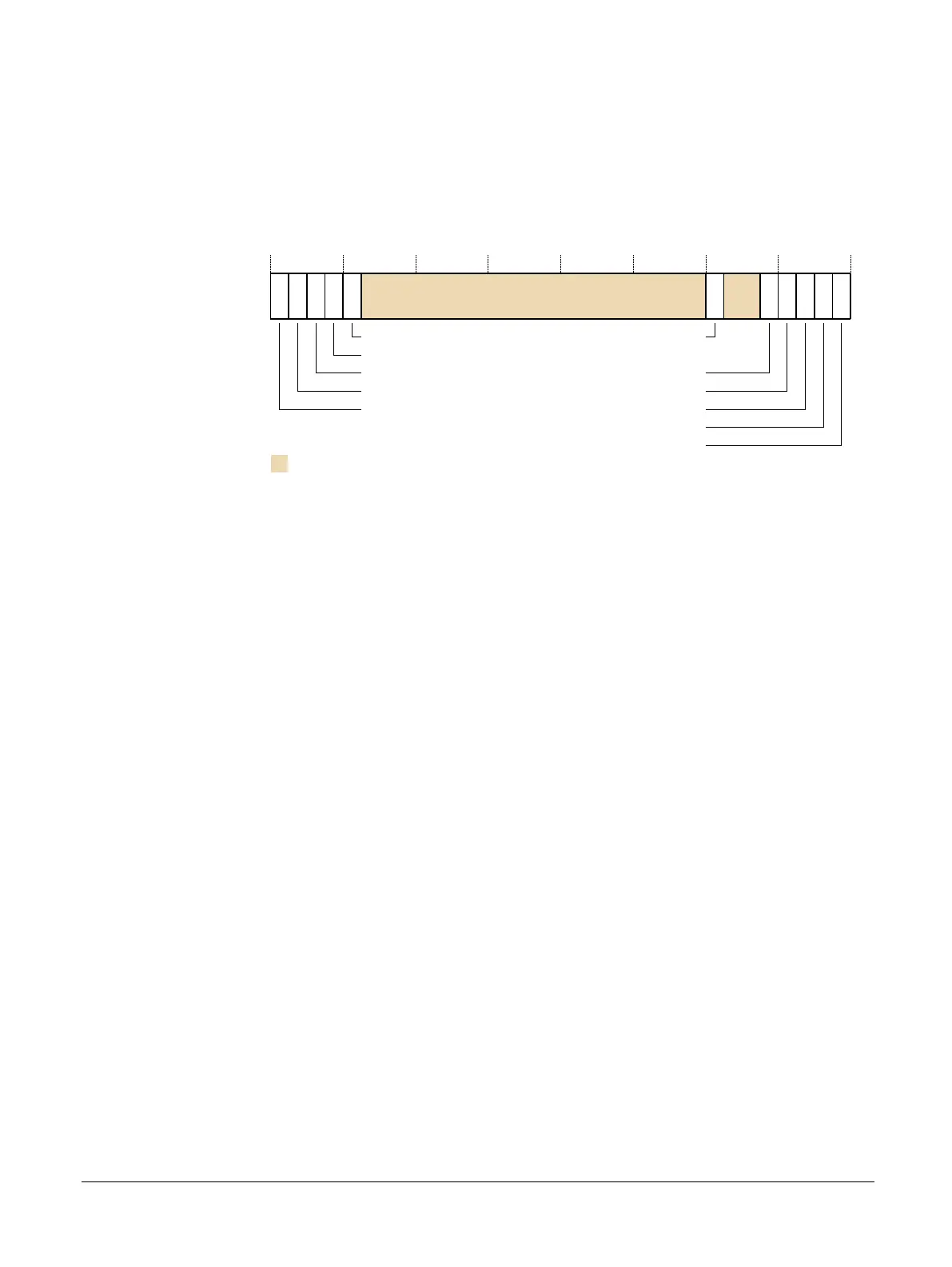

Figure B5-2 FPSR bit assignments
N, [31]
Negative condition flag for AArch32 floating-point comparison operations. AArch64 floating-
point comparisons set the PSTATE.N flag instead.
Z, [30]
Zero condition flag for AArch32 floating-point comparison operations. AArch64 floating-point
comparisons set the PSTATE.Z flag instead.
C, [29]
Carry condition flag for AArch32 floating-point comparison operations. AArch64 floating-point
comparisons set the PSTATE.C flag instead
V, [28]
Overflow condition flag for AArch32 floating-point comparison operations. AArch64 floating-
point comparisons set the PSTATE.V flag instead.
QC, [27]
Cumulative saturation bit. This bit is set to 1 to indicate that an Advanced SIMD integer
operation has saturated since a 0 was last written to this bit.
RES0, [26:8]
Reserved, RES0.
IDC, [7]
Input Denormal cumulative exception bit. This bit is set to 1 to indicate that the Input Denormal
exception has occurred since 0 was last written to this bit.
RES0, [6:5]
Reserved, RES0.
IXC, [4]
Inexact cumulative exception bit. This bit is set to 1 to indicate that the Inexact exception has
occurred since 0 was last written to this bit.
