ARM Cortex-A76 Core User Manual

D9.17 TRCCNTCTLR1, Counter Control Register 1
The TRCCNTCTLR1 controls the counter.
Bit field descriptions
The TRCCNTCTLR1 is a 32-bit register.
31 16 15 14 12 11 8 7 6 4 3 0
RLDSEL CNTSEL
RLDSELF
CNTTYPE
1718
CNTCHAIN
RLDTYPE
RES0

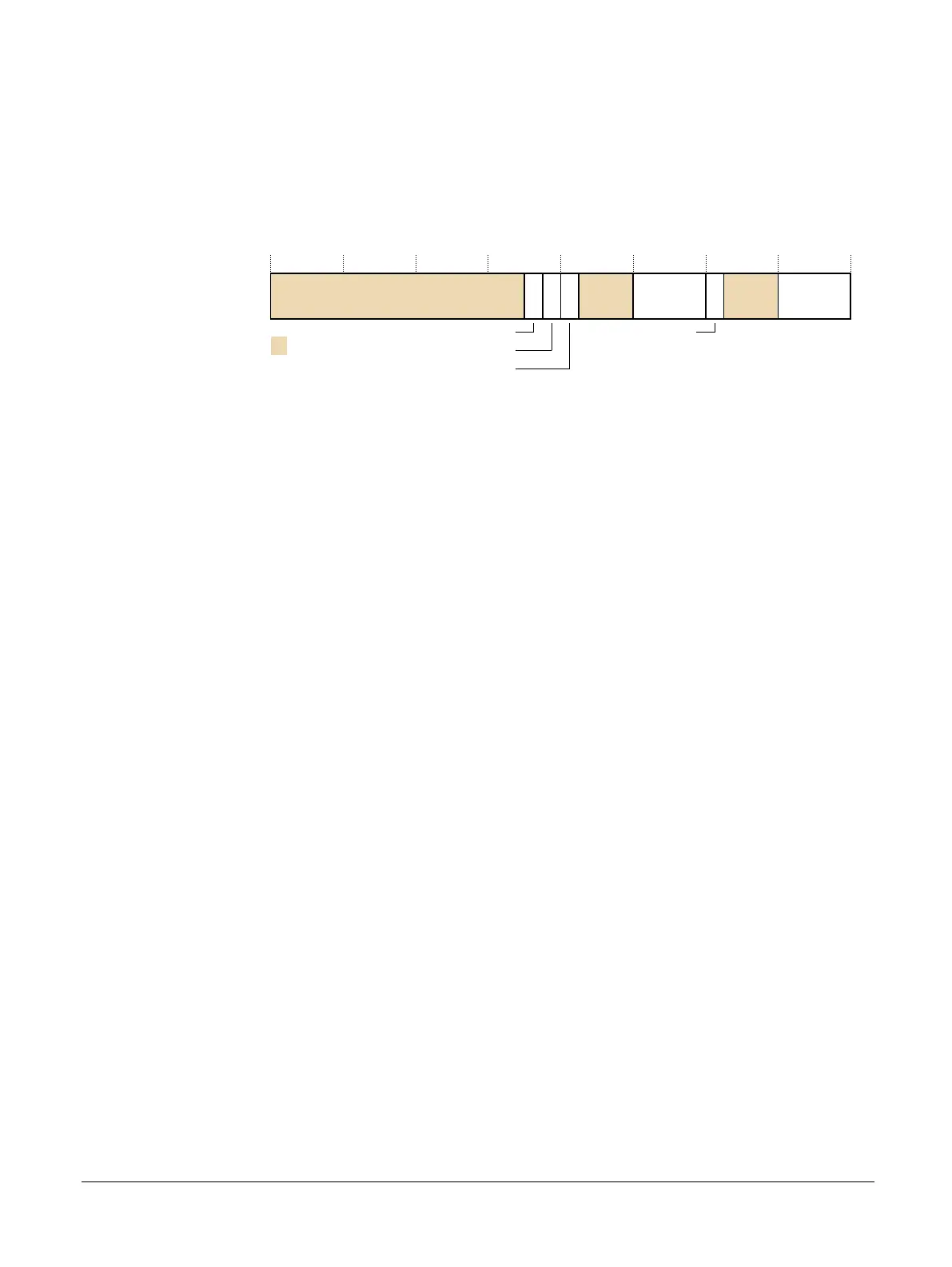

Figure D9-16 TRCCNTCTLR1 bit assignments
RES0, [31:18]
RES0 Reserved.
CNTCHAIN, [17]
Defines whether the counter decrements when the counter reloads. This enables two counters to
be used in combination to provide a larger counter:
0 The counter operates independently from the counter. The counter only decrements
based on CNTTYPE and CNTSEL.
1 The counter decrements when the counter reloads. The counter also decrements when
the resource selected by CNTTYPE and CNTSEL is active.
RLDSELF, [16]
Defines whether the counter reloads when it reaches zero:
0 The counter does not reload when it reaches zero. The counter only reloads based on
RLDTYPE and RLDSEL.
1 The counter reloads when it is zero and the resource selected by CNTTYPE and
CNTSEL is also active. The counter also reloads based on RLDTYPE and RLDSEL.
RLDTYPE, [15]
Selects the resource type for the reload:
0 Single selected resource.
1 Boolean combined resource pair.
RES0, [14:12]
RES0 Reserved.
RLDSEL, [11:8]
Selects the resource number, based on the value of RLDTYPE:
When RLDTYPE is 0, selects a single selected resource from 0-15 defined by bits[3:0].
When RLDTYPE is 1, selects a Boolean combined resource pair from 0-7 defined by bits[2:0].
CNTTYPE, [7]
Selects the resource type for the counter:
D9 ETM registers
D9.17 TRCCNTCTLR1, Counter Control Register 1
