6. BASIC OPERATION
104

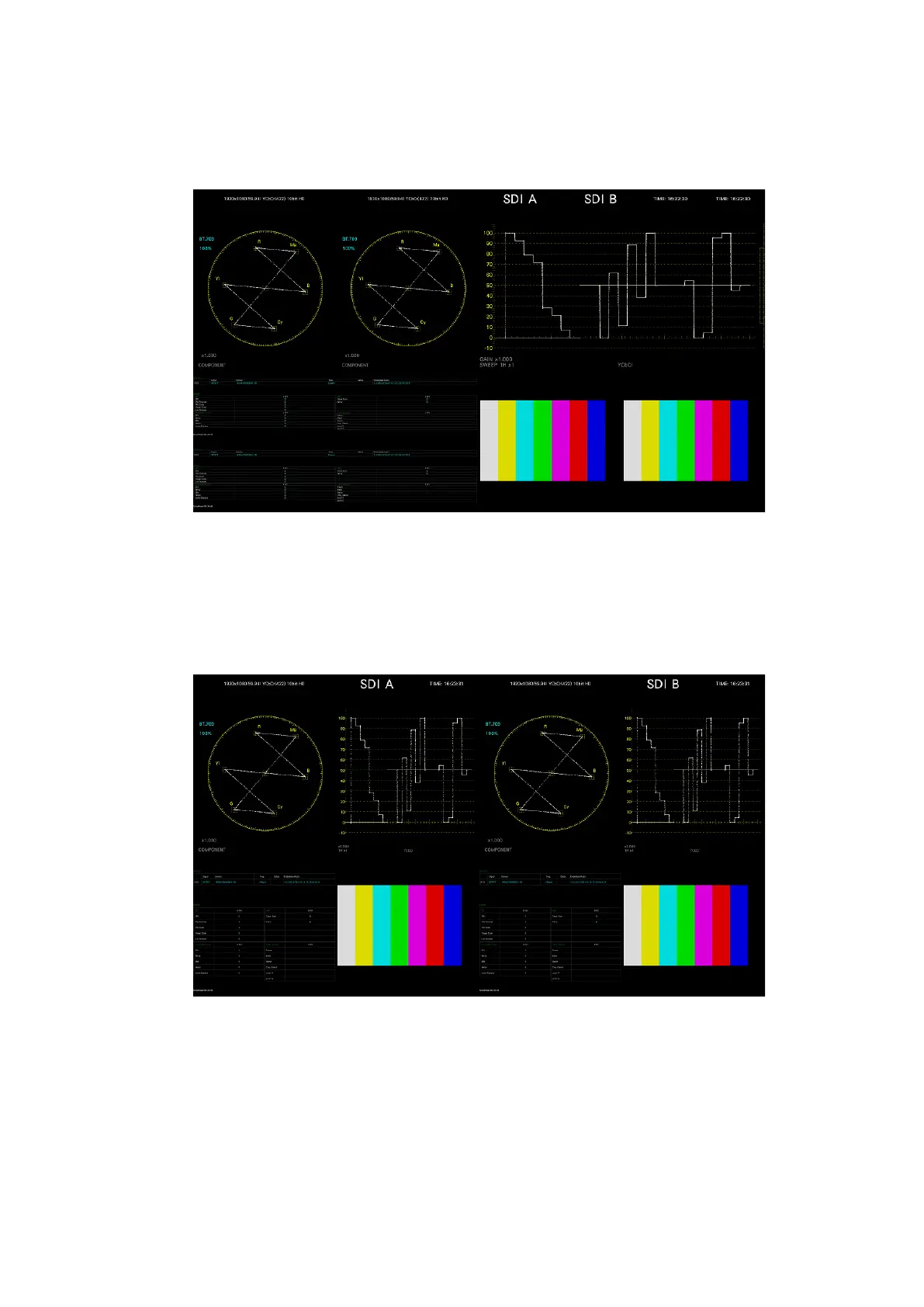

• When Display Mode Is NORMAL
The screen is divided by channel within each item. Select the division format with Style.
TILE (tile the screens) MIX (cascade the screens)
ALIGN-V (arrange vertically) ALIGN-H (arrange horizontally)
Figure 6-45 Normal display
When Display Mode Is TILE
The screen is divided by channel.
Ach Bch
Figure 6-46 Tiled display
