6. BASIC OPERATION
81
4. Apply SDI signals to the SDI INPUT connectors on the rear panel.

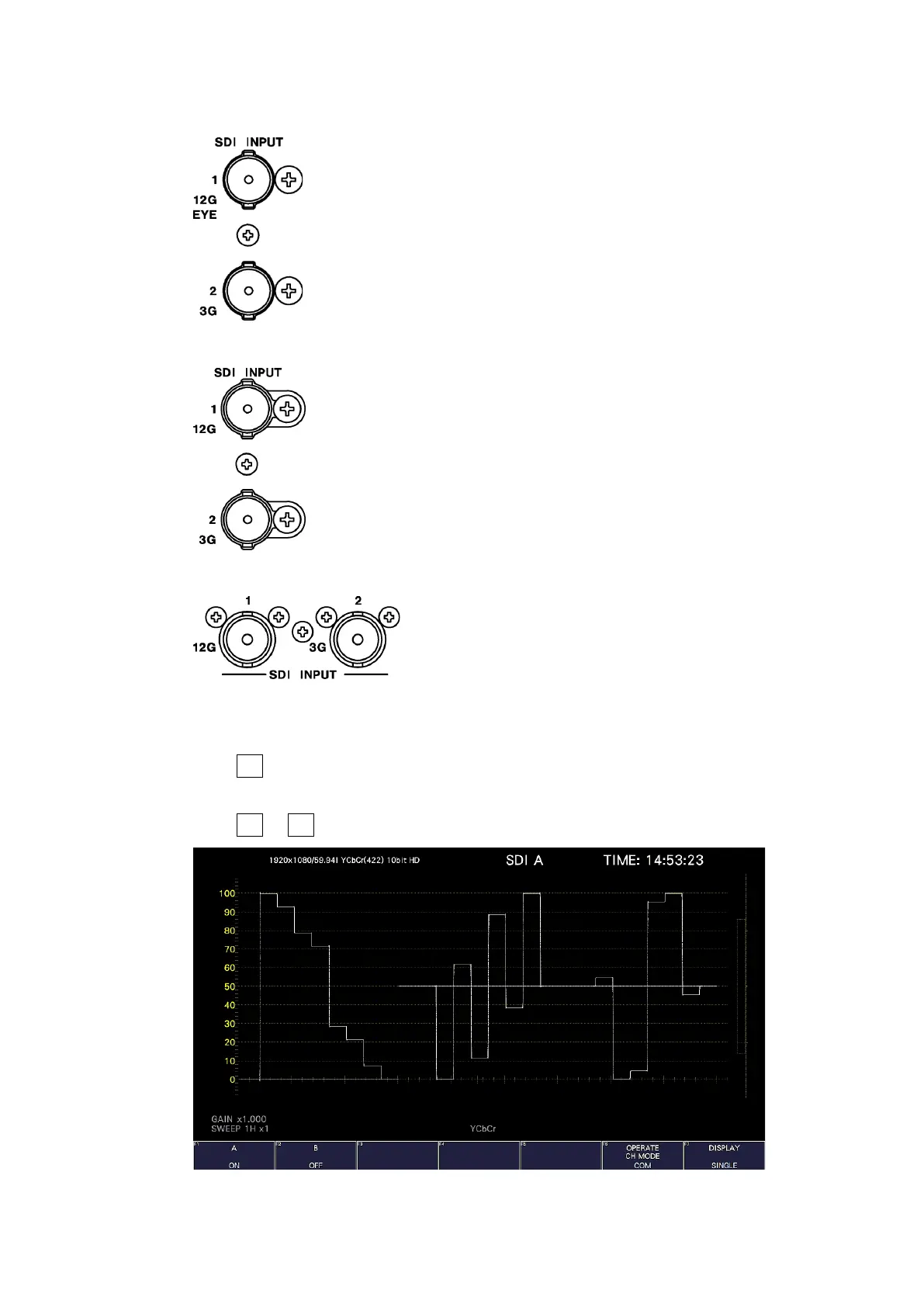

Figure 6-5 LV5300/LV5300A SDI input connectors
Figure 6-6 LV5350 SDI input connectors
Figure 6-7 LV7300 SDI input connectors
5. Press INPUT to select the channels you want to measure.
Press F•7 DISPLAY to select whether to measure a single channel (SINGLE) or multiple
channels (SIMUL).
Press F•1 to F•2 to turn on the channels you want to measure.
Figure 6-8 Measurement screen
