d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-5
4.
d-Color MF4003/MF3303

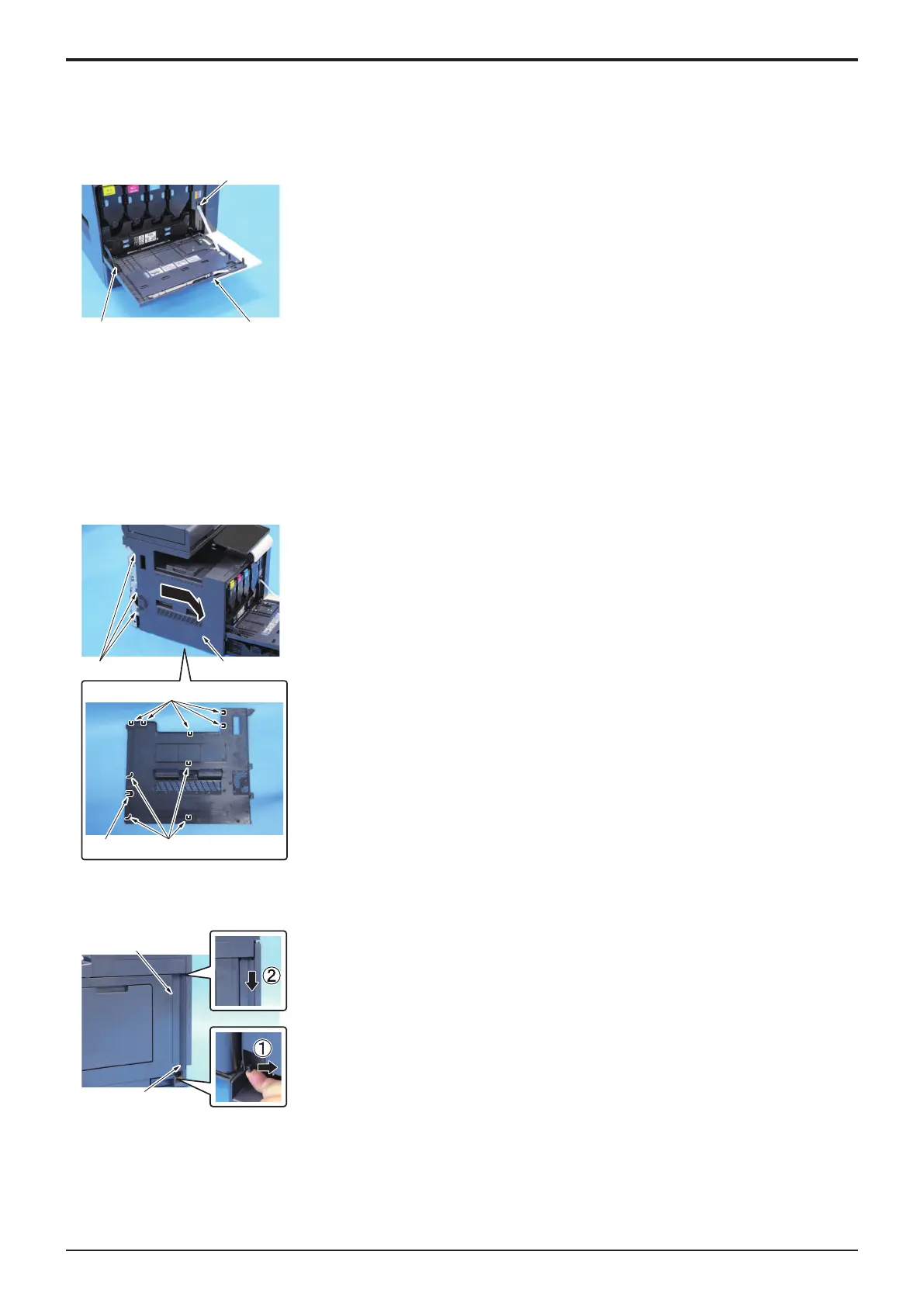

4.1Exterior parts
4.1.1Front door
[1]
[2]
[3]
1. By twisting the ends of the stopper [1], remove it from the main body.
2. Remove the screw [2], and remove the front door [3].
3. To reinstall, reverse the order of removal.
4.1.2Left cover
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Slide out the tray 1.
4. Open the front door.
[1]
[2]
[3]
[3][4]
5. Remove three screws [1], and remove the left cover [2].
NOTE
▪ When mounting the left cover, make sure nine claws [3] and a boss
[4] are attached to the main body.
6. To reinstall, reverse the order of removal.
4.1.3Rear cover
[1]
[2]
1. Remove the screw [1], and remove the cover [2].
Y119930-3
