d-Color MF4003/MF3303

P THEORY OF OPERATION > 3. FS-P04

P-74

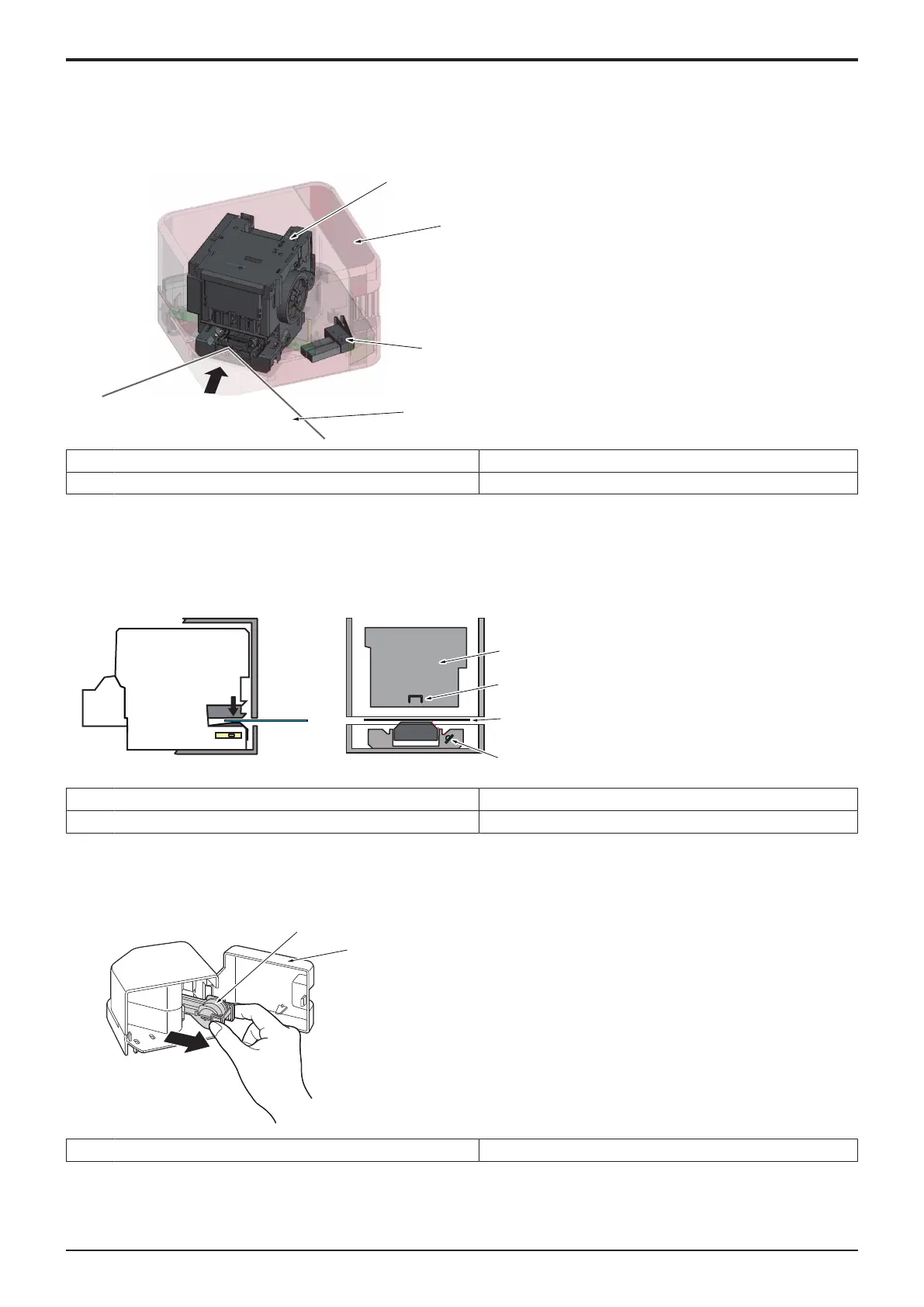

3. FS-P04

3.1Configuration

• A finisher (FS-P04) is composed of a clincher, a staple cartridge and a safety switch, and the power supply is provided from the MFP main

body.

[3]

[1]

[2]

[4]

[1] Clincher [2] Cover

[3] Safety switch [4] Paper

3.2Paper detection

• The reflective sensor installed in the clincher detects the end of paper and execute stapling.

NOTE

▪ Since the reflective sensor cannot detect the end of the paper with solid black image on the back side, or the paper without

border, stapling may not be executed.

[4]

[1]

[3]

[2]

[1] Clincher [2] Staple

[3] Paper [4] Reflective sensor

3.3Safety switch

• When opening the finisher cover, the safety switch turns off to shut off the power supply from the main body. For safety reasons, the

clincher is designed not to operate when replacing a staple cartridge or getting rid of a jam of staples.

[1]

[2]

[1] Staple cartridge [2] Cover

Service Manual

Y119930-3
