F DISASSEMBLY/REASSEMBLY > 10. UK-P19
F-62
[1]
[2]

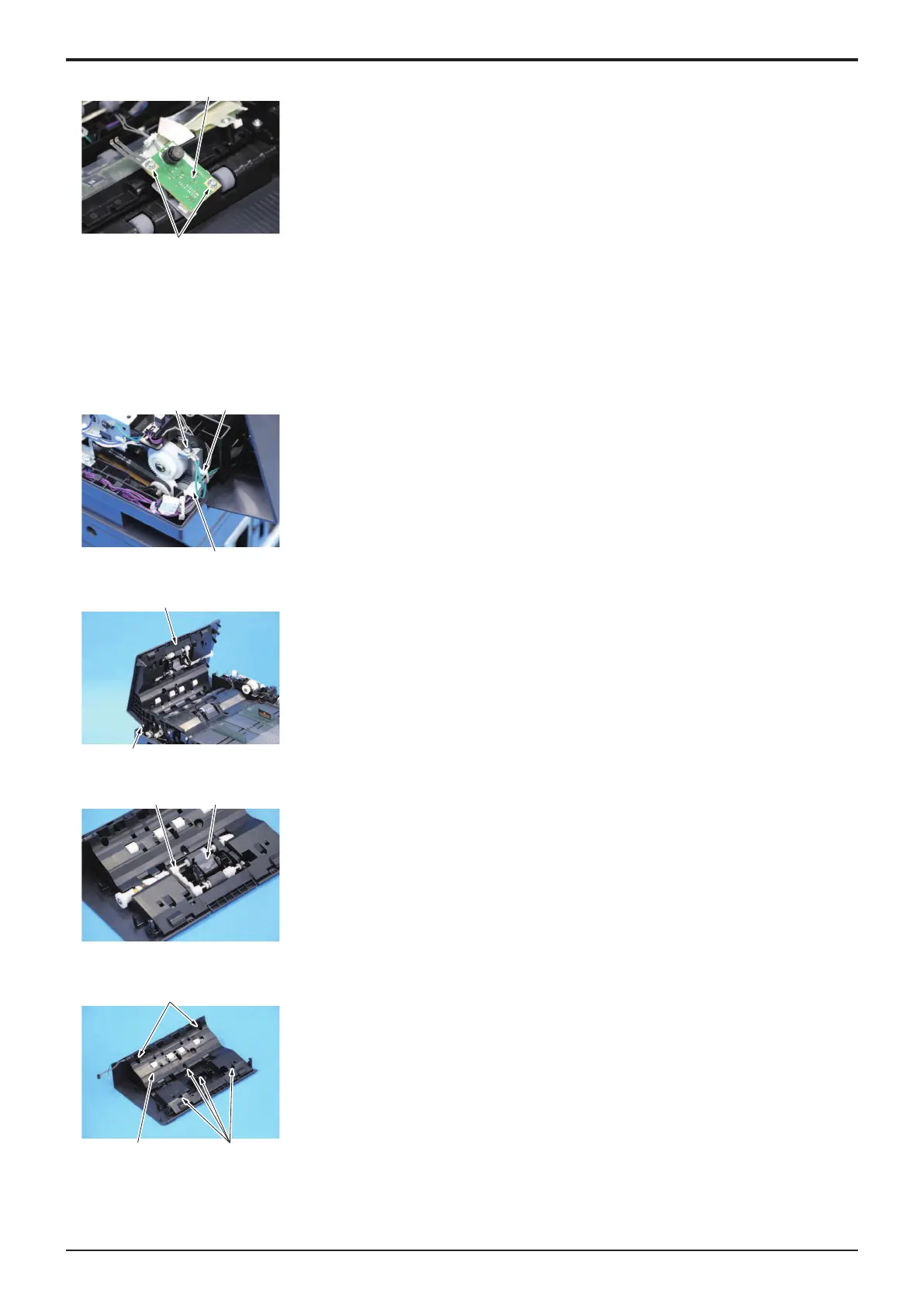

8. Remove two screws [1], and remove the multi feed detection board/TX [2].
9. To reinstall, reverse the order of removal.
10.2Multi feed detection board/RX (MFDB/RX)
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
2. Remove the front cover (ADF).
F.4.1.9 Front cover (ADF)
[2]
[1] [3]
3. Remove the screw [1], disconnect the connector [2], and remove the the
ground wire and the harness from the wire saddle [3].
[1]
[2]
4. Remove the screw [1], and remove the the upper door [2].
[1] [2]
5. Remove the pick-up roller assy [1].
6. Peel off the film [2].
[2]
[1]
[1]
7. Remove six screws [1], and remove the cover [2].
Service Manual
