M PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT DRAWING
M-5
d-Color MF4003/MF3303

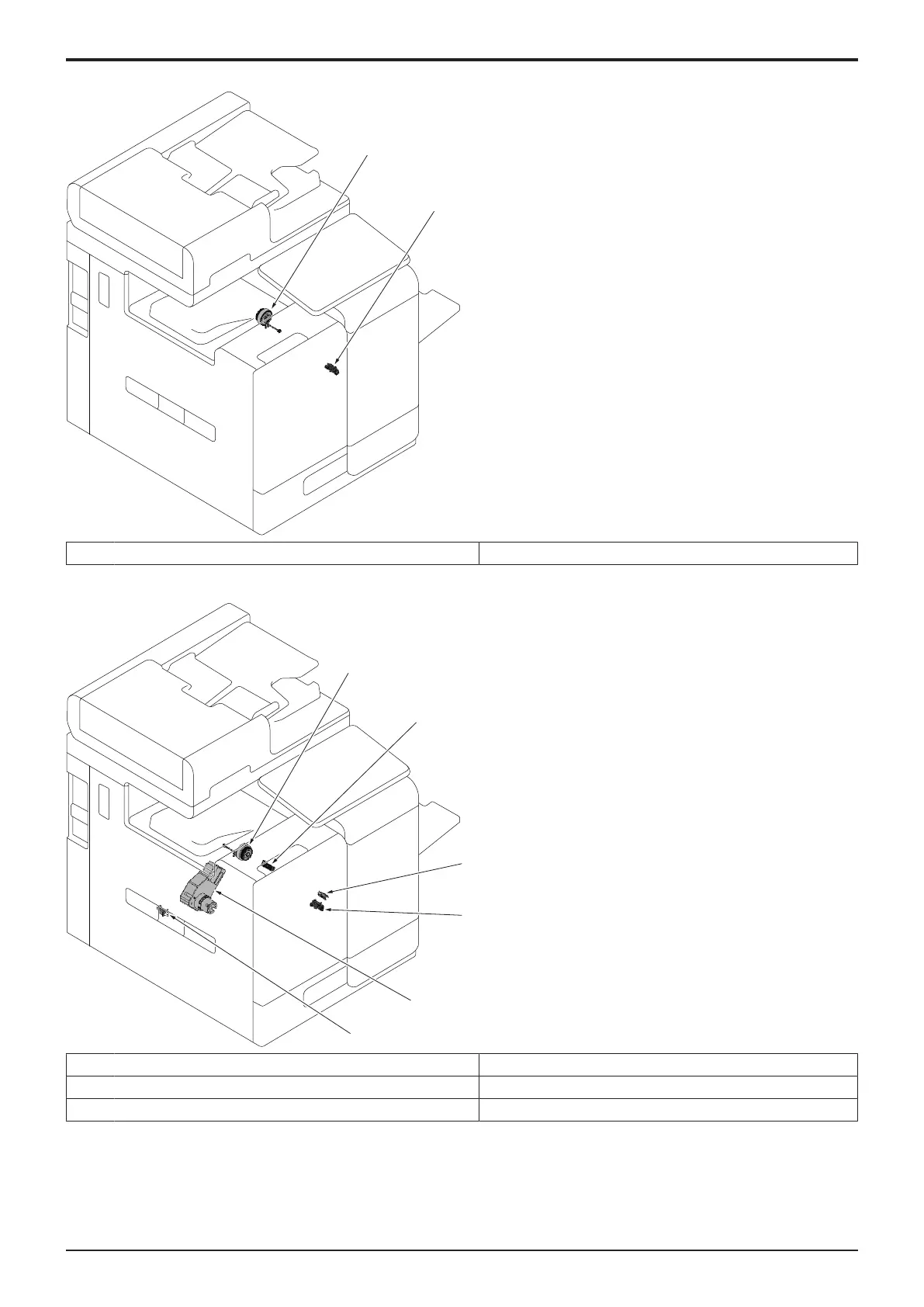

1.1.6Manual bypass tray
[1]
[2]
[1] Bypass tray paper feed clutch (CL2) [2] Bypass tray paper empty sensor (PS4)
1.1.7Tray 1
[1]
[3]
[4]
[5]
[6]
[2]
[1] Tray 1 paper feed clutch (CL3) [2] Tray 1 upper limit sensor (PS7)
[3] Tray 1 paper feed sensor (PS8) [4] Tray 1 paper empty sensor (PS5)
[5] Tray 1 lift-up motor (M6) [6] Tray 1 set switch (SW3)
Y119930-3
Service Manual
