d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-17
[1]
[2]

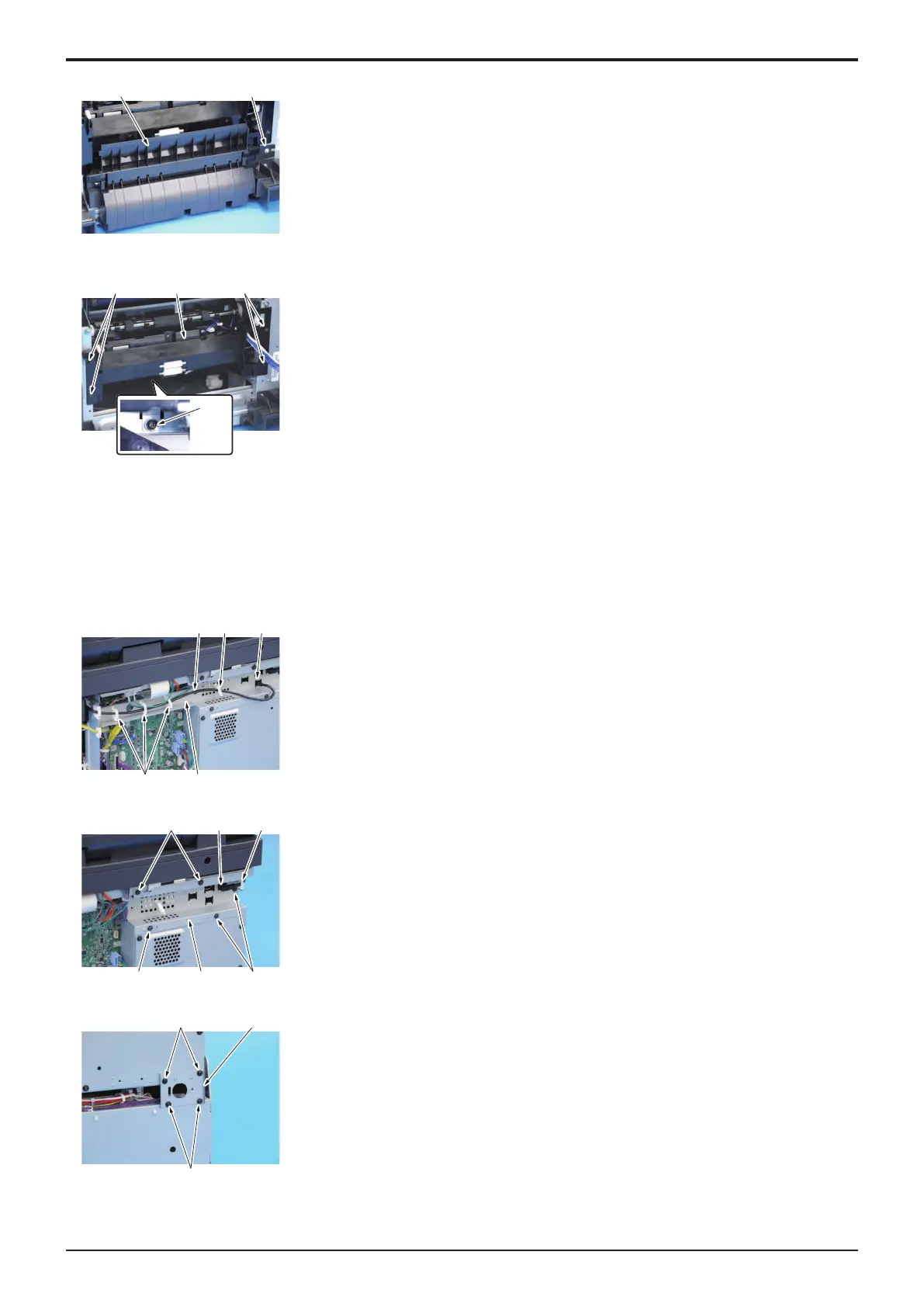

11. Remove the screw [1], and remove the guide [2].
[1][2][1]
[1]
12. Remove five screws [1], and remove the paper feed unit [2].
13. To reinstall, reverse the order of removal.
4.2.7PWB box
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Remove the left cover.
F.4.1.2 Left cover
[1] [4]
[1]
[2][3]
4. Remove the cable and ground wire from four wire saddles [1], and disconnect
the connector [2].
5. Remove the screw [3], and remove the plate [4].
[1]
[3]
[3]
[2]
[4]
[3]
6. Remove the cable from the edge cover [1], and disconnect the connector [2].
7. Remove five screws [3], and remove the plate [4].
[2]
[1]
[1]
8. Remove four screws [1], and remove the plate [2].
Y119930-3
