M PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT DRAWING
M-1
MPARTS/CONNECTOR LAYOUT DRAWING
1. PARTS LAYOUT DRAWING
1.1d-Color MF4003/MF3303

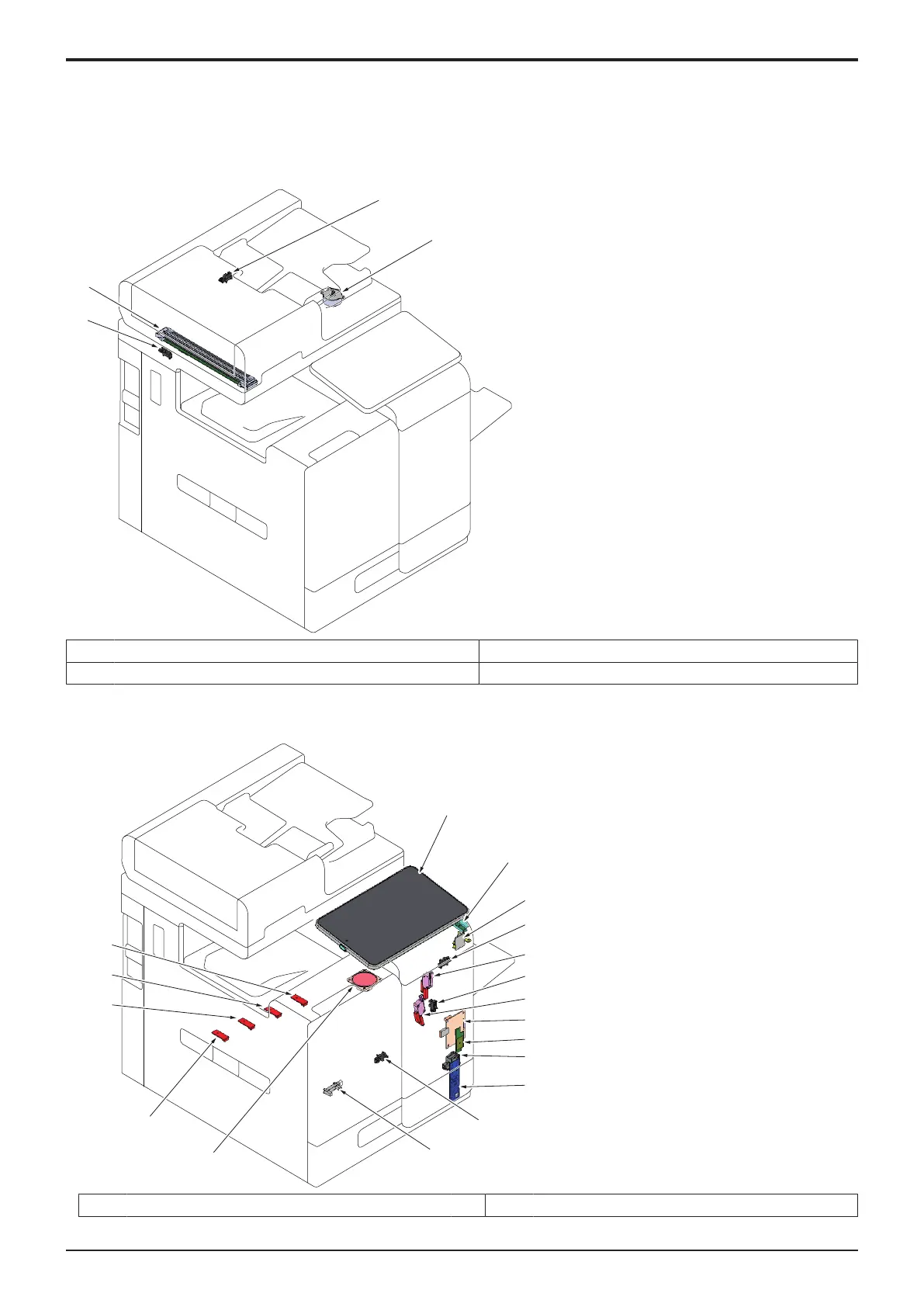

1.1.1Scanner section
[3]
[4]
[1]
[2]
[1] Angle sensor (PS22) [2] Scanner motor (M9)
[3] Scanner home sensor (PS21) [4] CIS module (IR CIS)
1.1.2Front side section
(1)Board/switch/sensor/others
[6]
[5]
[12]
[7]
[10]
[11]
[8]
[9]
[13]
[14]
[15]
[16]
[17]
[18]
[1]
[2]
[4]
[3]
[1] Control panel unit [2] Machine condition monitor board/Edg (MCMB/Edg)
