d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-45
[2]
[1]
[3]
[2]

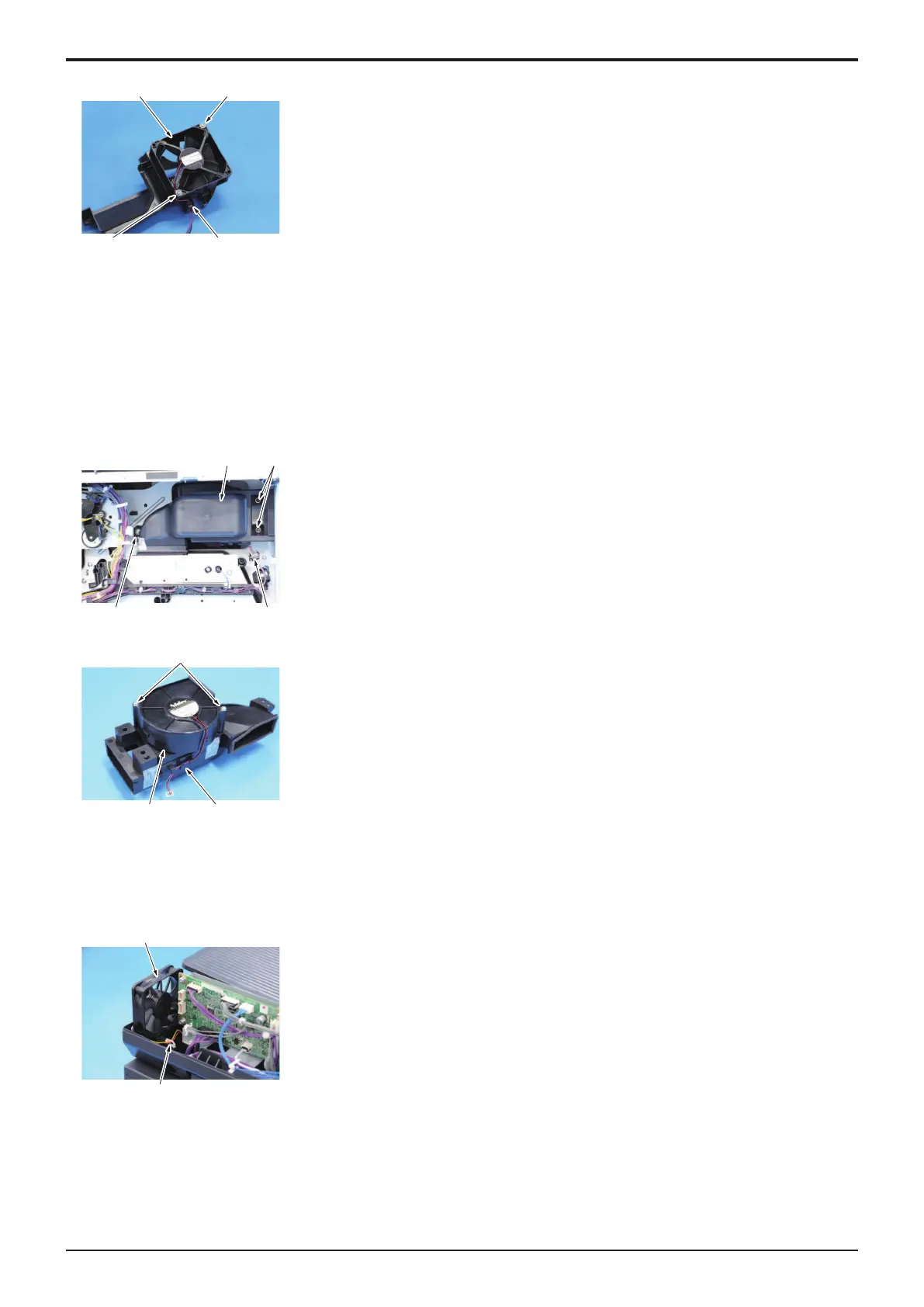

6. Remove the harness from the harness guide [1].
7. Remove two screws [2], and remove the machine cooling fan [3].
8. To reinstall, reverse the order of removal.
4.6.2Toner suction fan (FM2)
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Remove the left cover.
F.4.1.2 Left cover
4. Remove the PWB box.
F.4.2.7 PWB box
[3]
[1]
[2]
[2]
5. Disconnect the connector [1].
6. Remove three screws [2], and remove the toner suction fan assy [3].
[2]
[3]
[1]
7. Remove the harness from the harness guide [1].
8. Remove two screws [2], and remove the toner suction fan [3].
9. To reinstall, reverse the order of removal.
4.6.3DF cooling fan motor (FM4)
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
[1]
[2]
2. Remove the harness from the wire saddle [1], and slide out the DF cooling fan
motor [2].
Y119930-3
Service Manual
