d-Color MF4003/MF3303
E MAINTENANCE > 3. Periodical replacement procedure
E-10

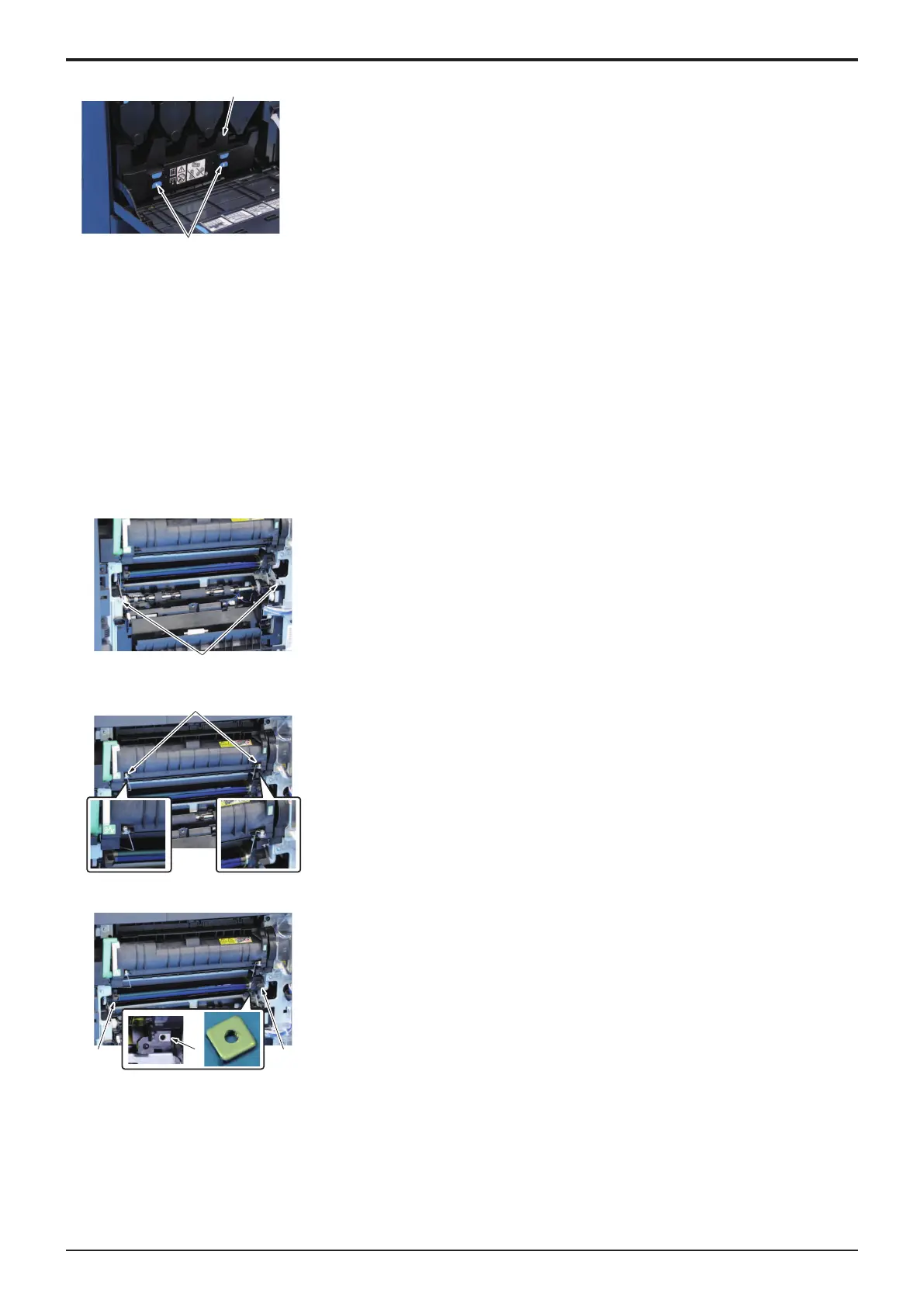

2. Hold the both handles [1], and remove the waste toner bottle [2].
3. Clean the surface around the waste toner collecting port.
E.5.1.10 Cleaning of the area around the waste toner collecting port
4. Reinstall the above parts following the removal steps in reverse.
3.1.10Replacing the transfer belt unit
(1)Removal procedure
1. Remove the toner cartridge.
E.3.1.6 Replacing the toner cartridge
2. Remove the waste toner bottle.
E.3.1.9 Replacing the waster toner bottle
3. Remove the imaging unit.
E.3.1.7 Replacing the imaging unit
4. Remove the IDC sensor assy.
F.4.7.1 IDC sensor (IDCS1)
5. Remove two screws [1].
6. Hook two transfer unit pressers [1] on the fusing unit.
7. Hold the handle [1] of the transfer belt unit, and pull it out.
NOTE
â–ª Make sure not to drop or lose the plate nut [2].
To Next Page
