d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 6. PF-P20/PF-P21
F-51

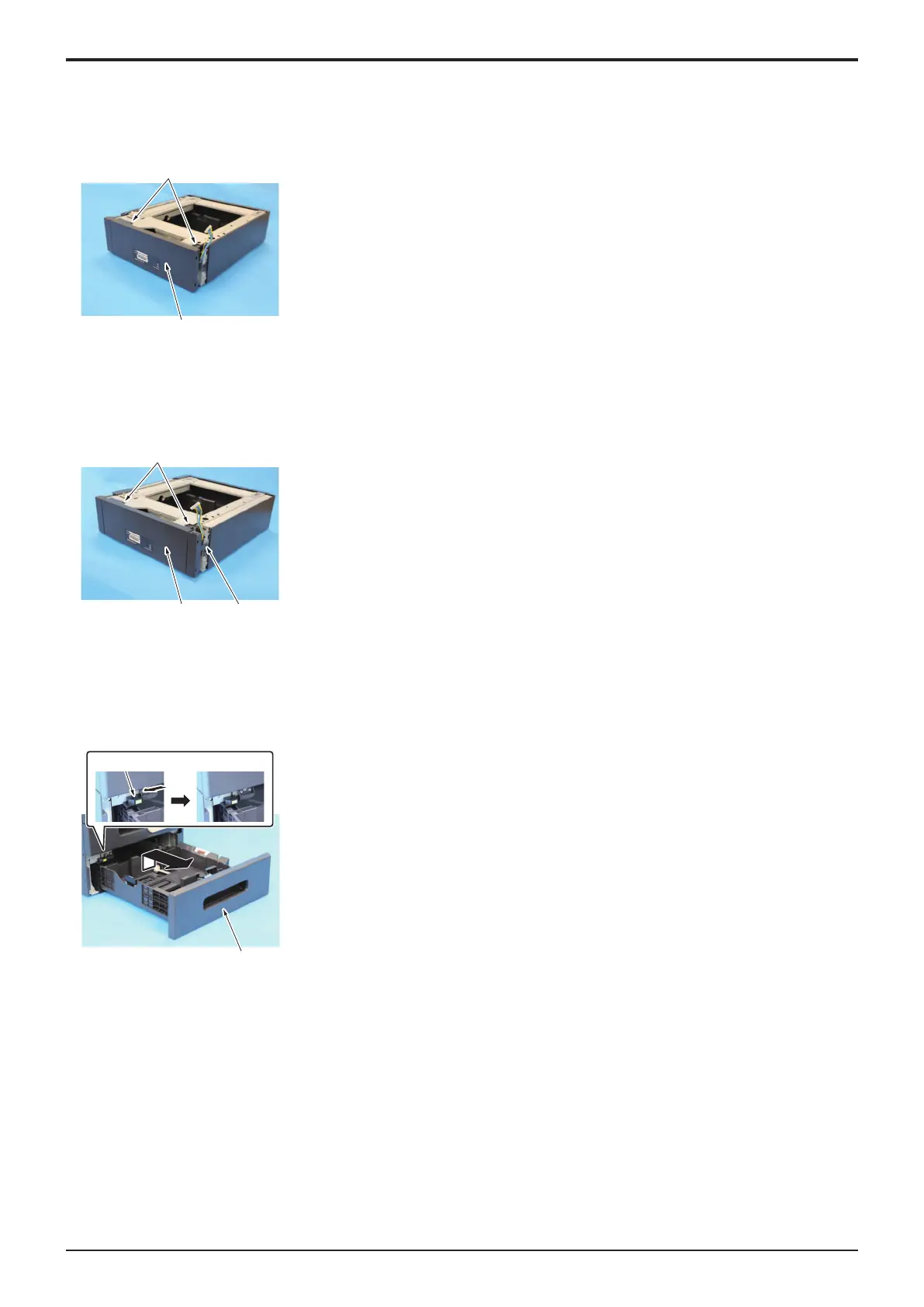

6. PF-P20/PF-P21
6.1Rear cover (PF-P20)
1. Remove the paper feed unit from the main body.
F.6.4 Paper Feed Unit (PF-P20)
2. Remove two screws [1], and remove the rear over [2].
3. To reinstall, reverse the order of removal.
6.2Rear cover (PF-P21)
1. Remove the paper feed unit from the main body.
F.6.5 Paper Feed Unit (PF-P21)
2. Remove three screws [1], and remove the rear over [2].
3. To reinstall, reverse the order of removal.
6.3Tray 2, tray 3 (PF-P20/PF-P21)
NOTE
â–ª The tray 2 and the tray 3 have same mechanism. This procedure shows the steps taken for the tray 2.
1. Slide out the tray 2 and unload paper from it.
2. Slide the stopper [1].
3. Hold up the tray 2 [2] to remove it.
4. To reinstall, reverse the order of removal.
6.4Paper Feed Unit (PF-P20)
NOTE
â–ª Assign an appropriate number of persons for moving the machine.
â–ª Whenever removing or reinstalling the paper feed unit, be sure first to unplug the power cord of the printer from the power outlet.
1. Remove the rear cover.
F.4.1.3 Rear cover
2. Remove the tray 1.
F.4.1.7 Tray1
3. Slide out the tray 2.
