10. UK-P19
10.1Multi feed detection board/TX (MFDB/TX)
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
2. Remove the front cover (ADF).
F.4.1.9 Front cover (ADF)
[2]
[1]

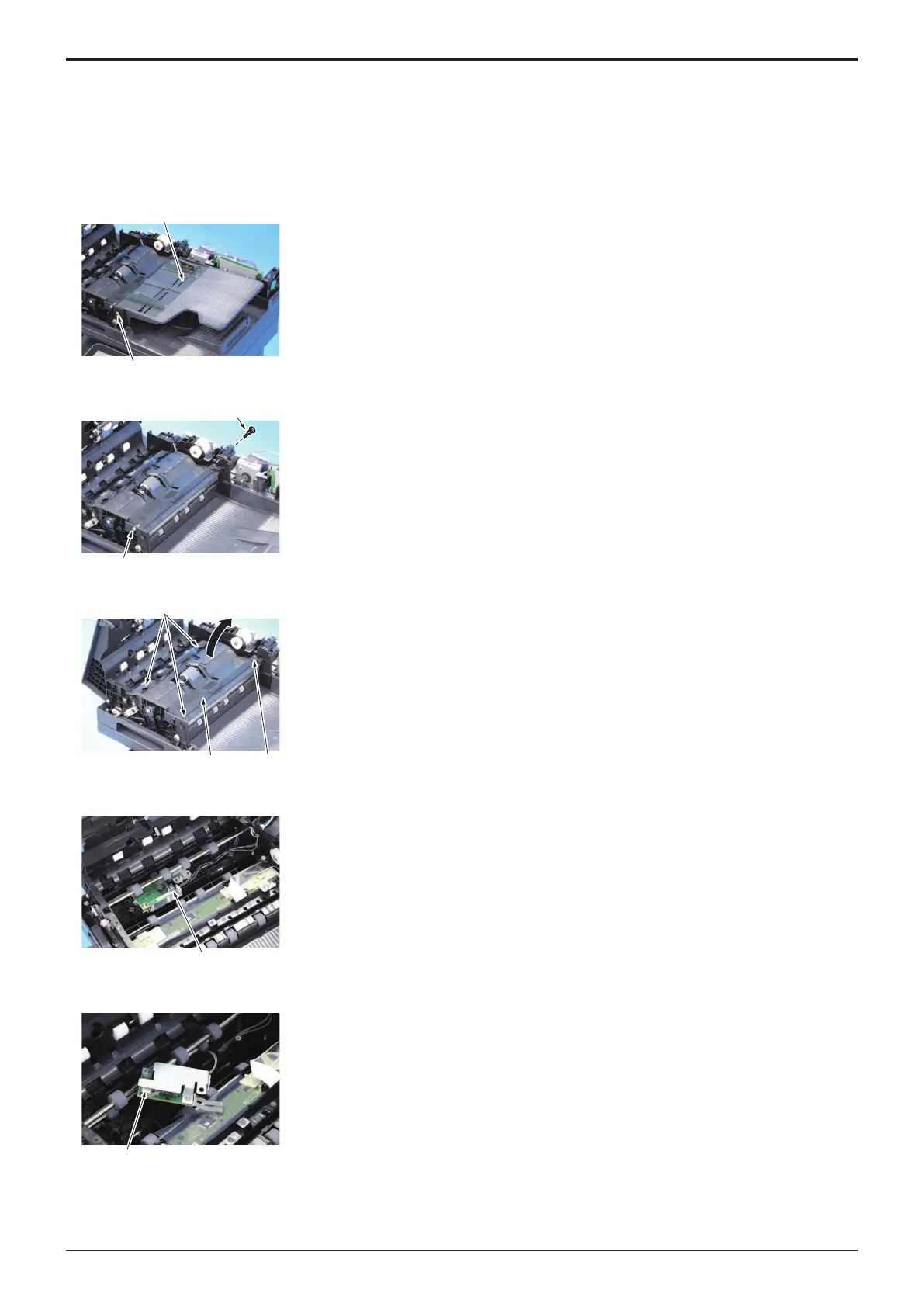

3. Remove the screw [1], and remove the document feed tray [2].
[1]
[1]
4. Remove two screws [1].
[1]
[2] [1]
5. Remove four screws [1], and evacuate the DF lower guide assy [2].
[1]
6. Remove the screw [1], and pull out the multi feed detection board/TX assy [2].
[1]
7. Disconnect the connector [1].
Y119930-3
