d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 11. CU-202 (Only for Europe)
F-64

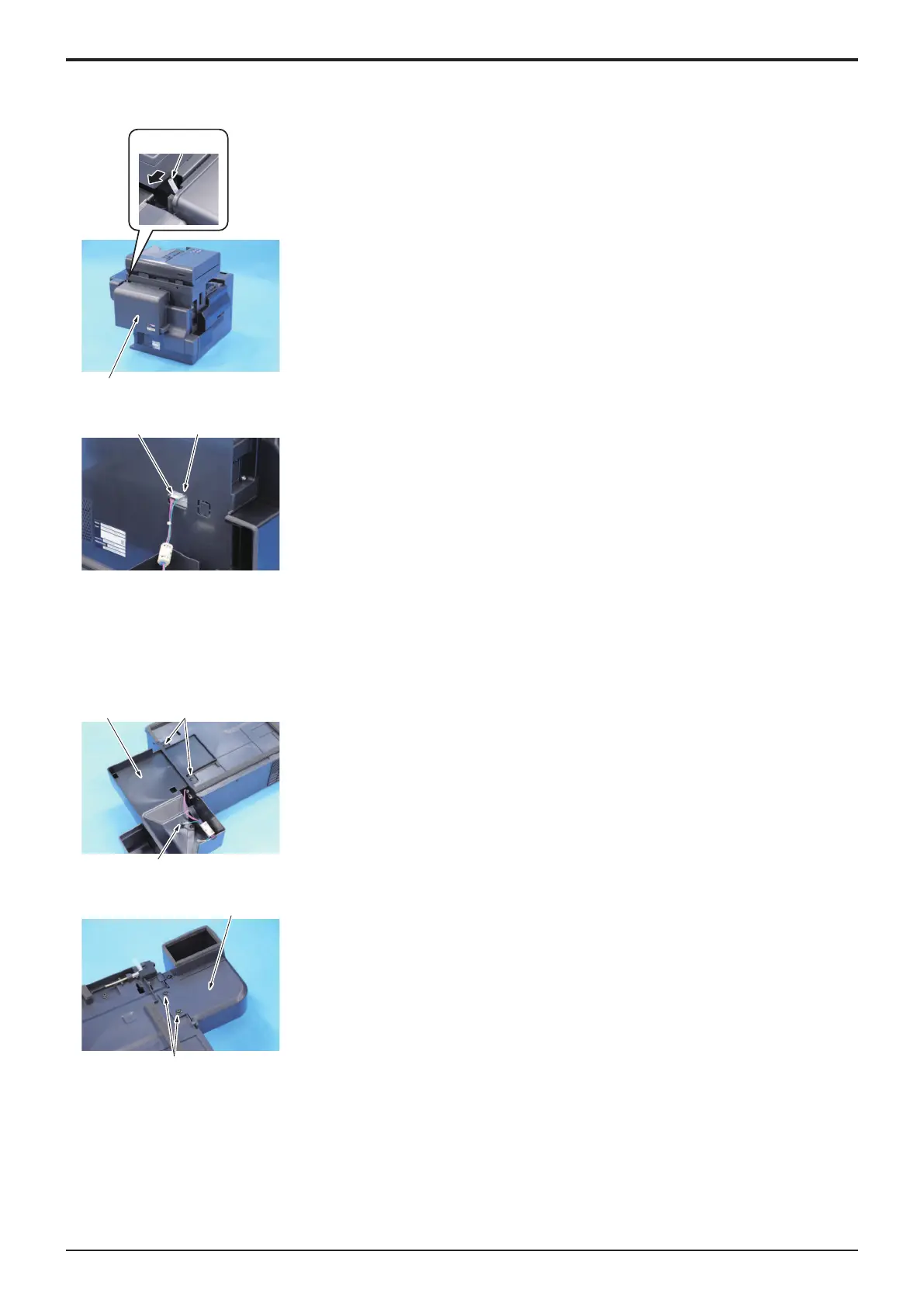

11. CU-202 (Only for Europe)
11.1Clean unit (CU-202)
[1]
[2]
1. Push the lock shaft [1] to the left, and remove the clean unit [2].
[1] [2]
2. Disconnect the connector [1].
3. Remove the screw [2], and remove the earth cable.
4. To reinstall, reverse the order of removal.
11.2UFP filter
1. Remove the clean unit.
F.11.1 Clean unit (CU-202)
[3]
[1]
[2]
2. Remove the screw [1], and remove the earth cable.
3. Remove two screws [2], and remove the duct [3].
[2]
[1]
4. Remove two screws [1], and remove the duct [2].
Service Manual
Y119930-3
