d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 9. KP-102
F-60
9.
KP-102
9.1Keypad (KP-102)
[1]
[2]

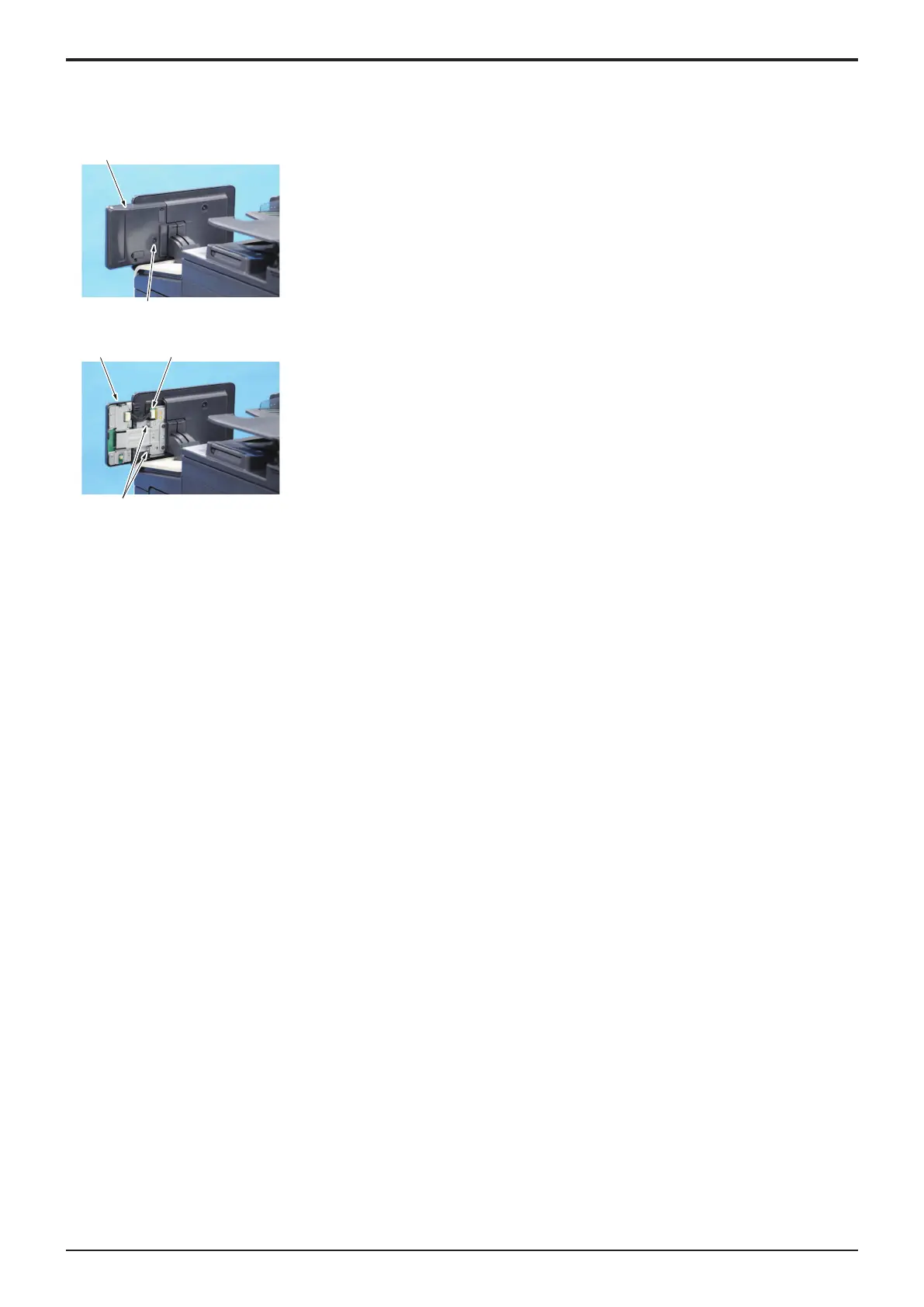

1.
Remove the screw [1], and remove the cover [2].
[2]
[3]
[1]
2.
Disconnect the connector [1].
3.
Remove two screws [2], and remove the keypad [3].
4.
To reinstall, reverse the order of removal.
Service Manual
Y119930-3
157
159
