Olivetti d-Color MF4003 User Manual

M PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT DRAWING
M-6
d-Color MF4003/MF3303

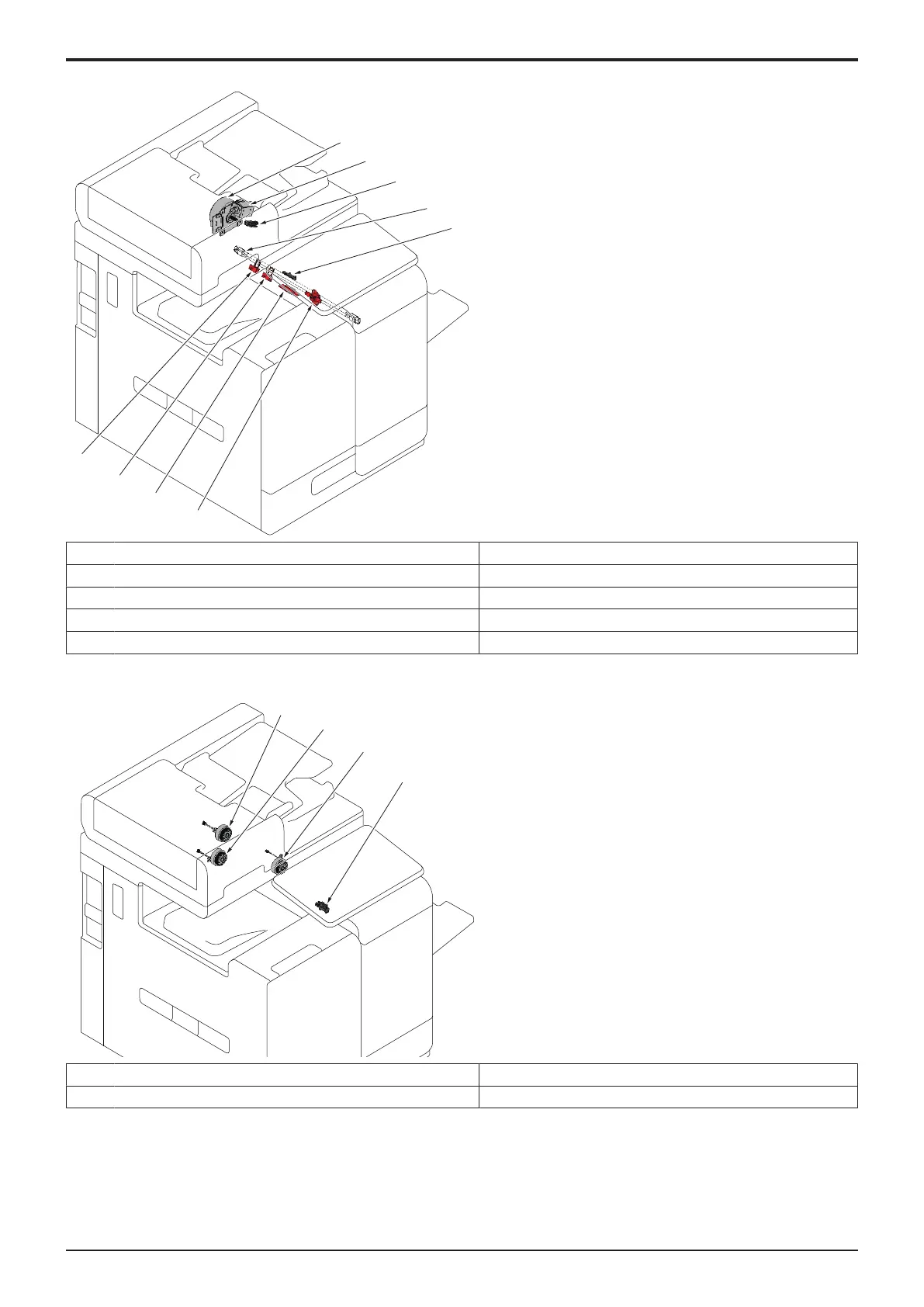

1.1.8Fusing/paper exit section
[1]
[6]
[7]
[8]
[9]
[2]
[3]
[4]
[5]
[1] Fusing motor (M3) [2] Exit path switch solenoid (SD1)
[3] Paper exit sensor (PS13) [4] Fusing heater lamp (HL1)
[5] Fusing loop sensor (PS10) [6] Heating roller thermostat (TS1)
[7] Heating roller temperature sensor (TEMS) [8] Heating roller thermistor/Ctr (TH2)
[9] Heating roller thermistor/Edg (TH1) - -
1.1.9Duplex section
[1]
[2]
[3]
[4]
[1] ADU reverse rotation clutch (CL7) [2] ADU forward rotation clutch (CL6)
[3] ADU transport clutch (CL5) [4] ADU transport sensor (PS11)
Service Manual
Y119930-3
