d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-43
[1] [2]
[1]
[1]
[2]

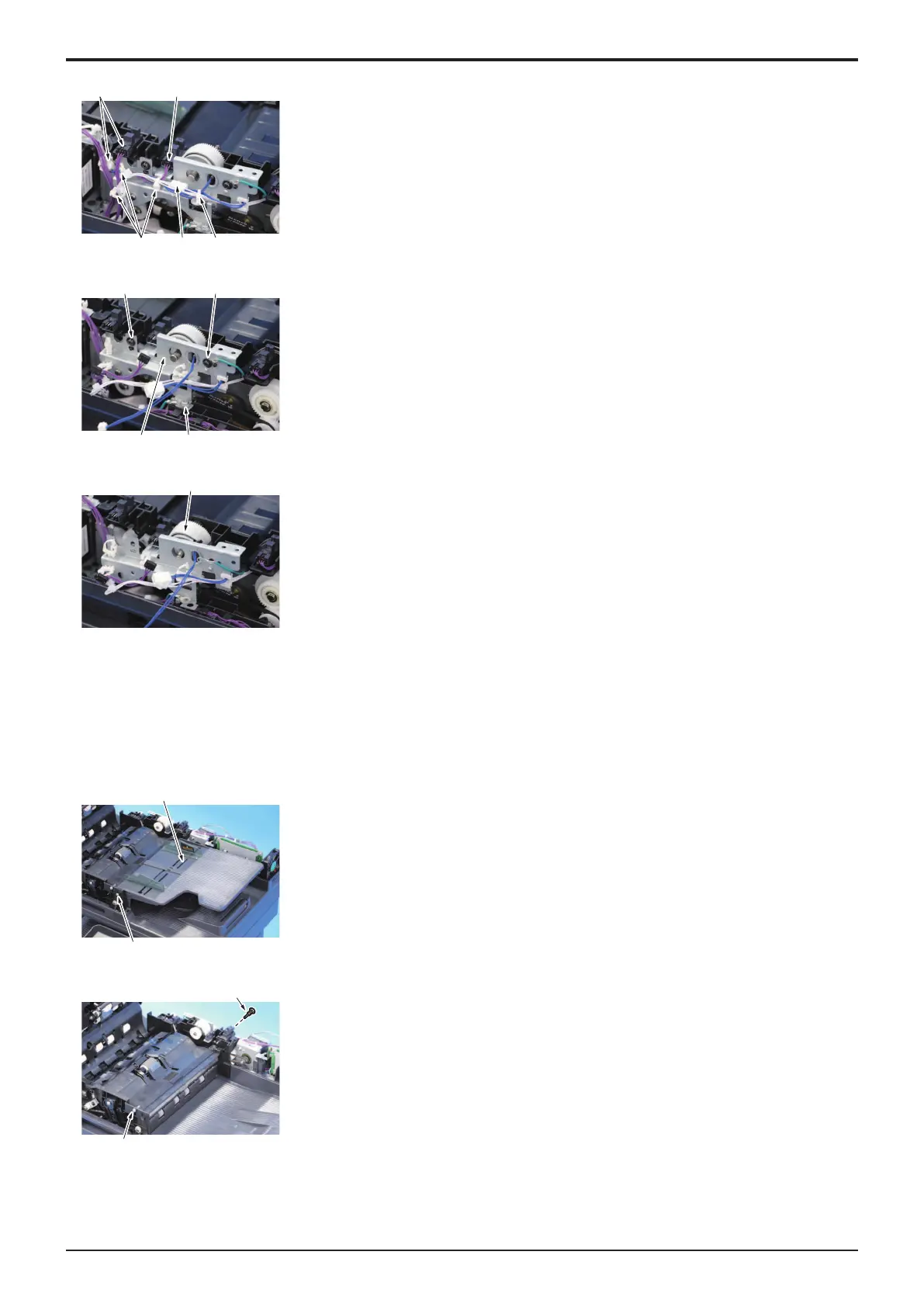

4. Disconnect four connectors [1], and remove all harnesses from four wire
saddles [2].
[1]
[1]
[1]
[2]
5. Remove three screws [1], and remove the plate [2].
[1]
6. Remove the document paper feed clutch [1].
7. To reinstall, reverse the order of removal.
4.5.7Document registration clutch (CL9)
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
2. Remove the front cover (ADF).
F.4.1.9 Front cover (ADF)
[2]
[1]
3. Remove the screw [1], and remove the document feed tray [2].
[1]
[1]
4. Remove two screws [1].
Y119930-3
Service Manual
