d-Color MF4003/MF3303
E MAINTENANCE > 3. Periodical replacement procedure
E-6
[2] [3]
[1]

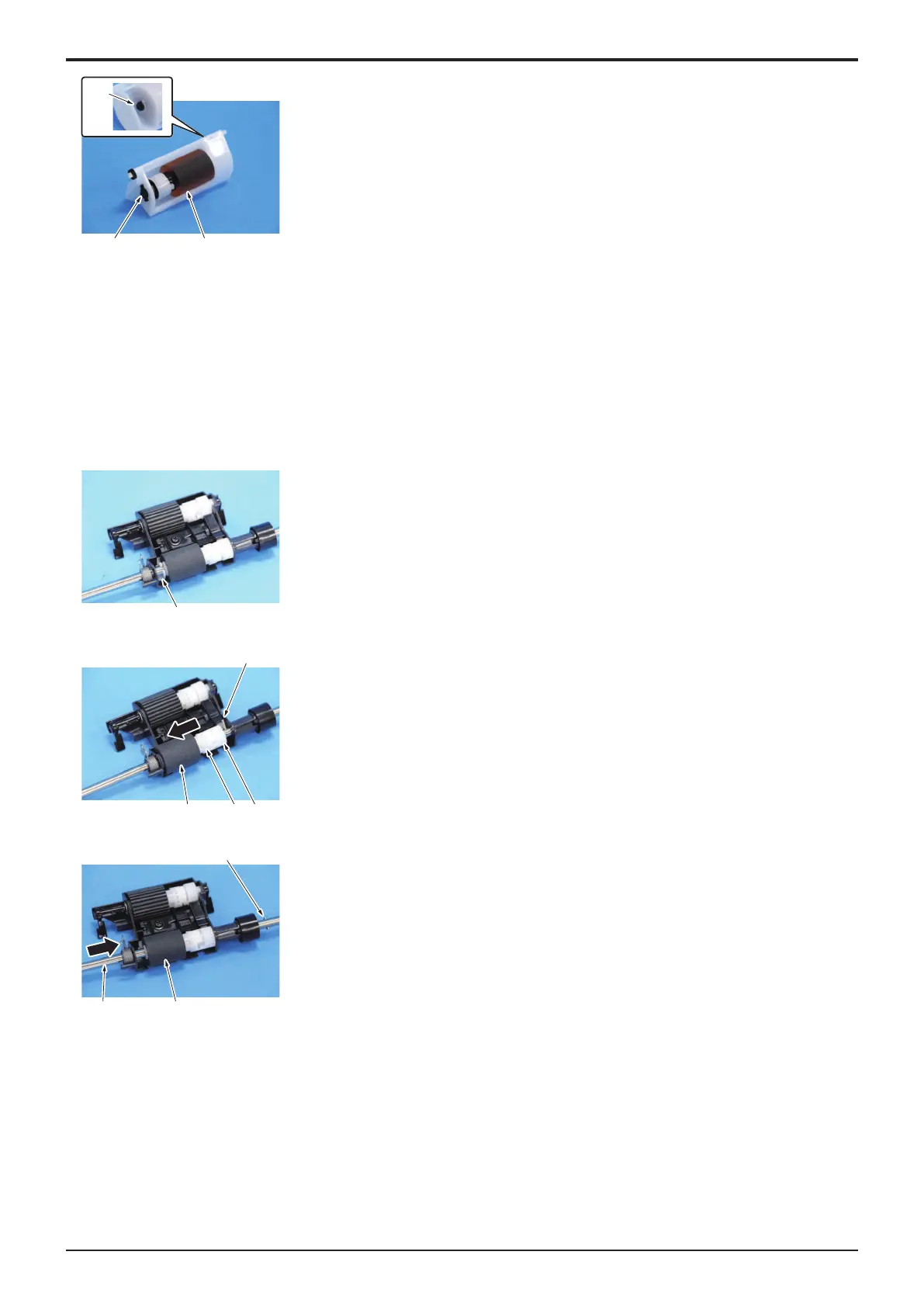

5. Remove the C-clip [1], pull out the shaft [2], and remove the tray 1 separation
roller assy [3].
6. To reinstall, reverse the order of removal.
7. Select [Service Mode] -> [Counter] -> [Life] and clear the count of [1st Feed Count].
3.1.3Replacing the manual bypass tray feed roller
1. Open the right door.
2. Remove the manual bypass tray unit.
F.4.2.1 Manual bypass tray unit
3. Remove the bypass tray paper feed clutch.
F.4.5.1 Bypass tray paper feed clutch (CL2)
4. Remove the manual bypass tray roller unit.
F.4.2.5 Manual bypass tray roller unit
[1]
5. Remove the C-clip [1].
[2] [1][3]
[4]
6. Slide the gear [1], gear [2] and feed roller [3], and remove the pin [4].
NOTE
▪ Be careful not to loss the pin.
[2]
[1] [3]
7. Slide the shaft [1], and remove the pin [2].
NOTE
▪ Be careful not to loss the pin.
8. Pull out the haft [1], and remove the feed roller [3].
9. To reinstall, reverse the order of removal.
10. Select [Service Mode] -> [Counter] -> [Life] and clear the count of [Manual Tray Feed Count].
3.1.4Replacing the manual bypass tray pick-up roller
1. Open the right door.
2. Remove the manual bypass tray unit.
F.4.2.1 Manual bypass tray unit
3. Remove the bypass tray paper feed clutch.
F.4.5.1 Bypass tray paper feed clutch (CL2)
4. Remove the manual bypass tray roller unit.
F.4.2.5 Manual bypass tray roller unit
Service Manual
Y119930-3
