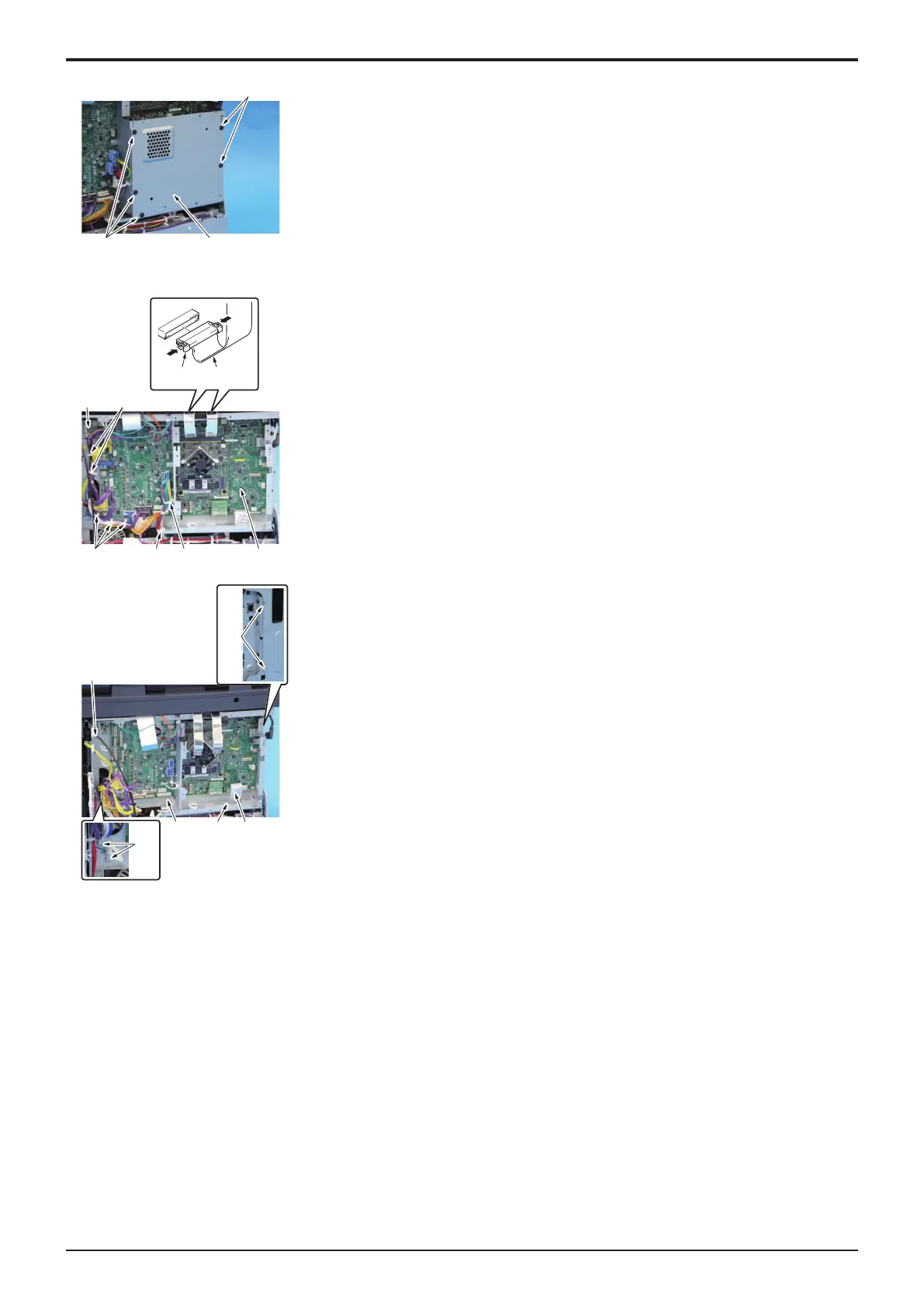

9. Remove five screws [1], and remove the plate [2].
10. Remove the fax kit.
F.5.1 Fax Kit
[1]
[4][2] [1]
[1][3]
[6] [5]
11. Remove the harness from six wire saddles [1] and the edge cover [2].
12. Remove all connectors and flat cables on the backup board [3] and the base
board [4].
NOTE
â–ª When removing the flat cable [5], unlock the connector [6], and
remove the cable together with the connector.
13. Pass the flat cable [1] through the hole [2].
14. Remove five screws [3], and remove the PWB box [4].
15. To reinstall, reverse the order of removal.
4.2.8Fusing drive unit
1. Remove the fusing unit.
E.3.1.12 Replacing the fusing unit
2. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
3. Remove the rear cover.
F.4.1.3 Rear cover
4. Remove the left cover.
F.4.1.2 Left cover
5. Remove the PWB box.
F.4.2.7 PWB box
