d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-19
[1]

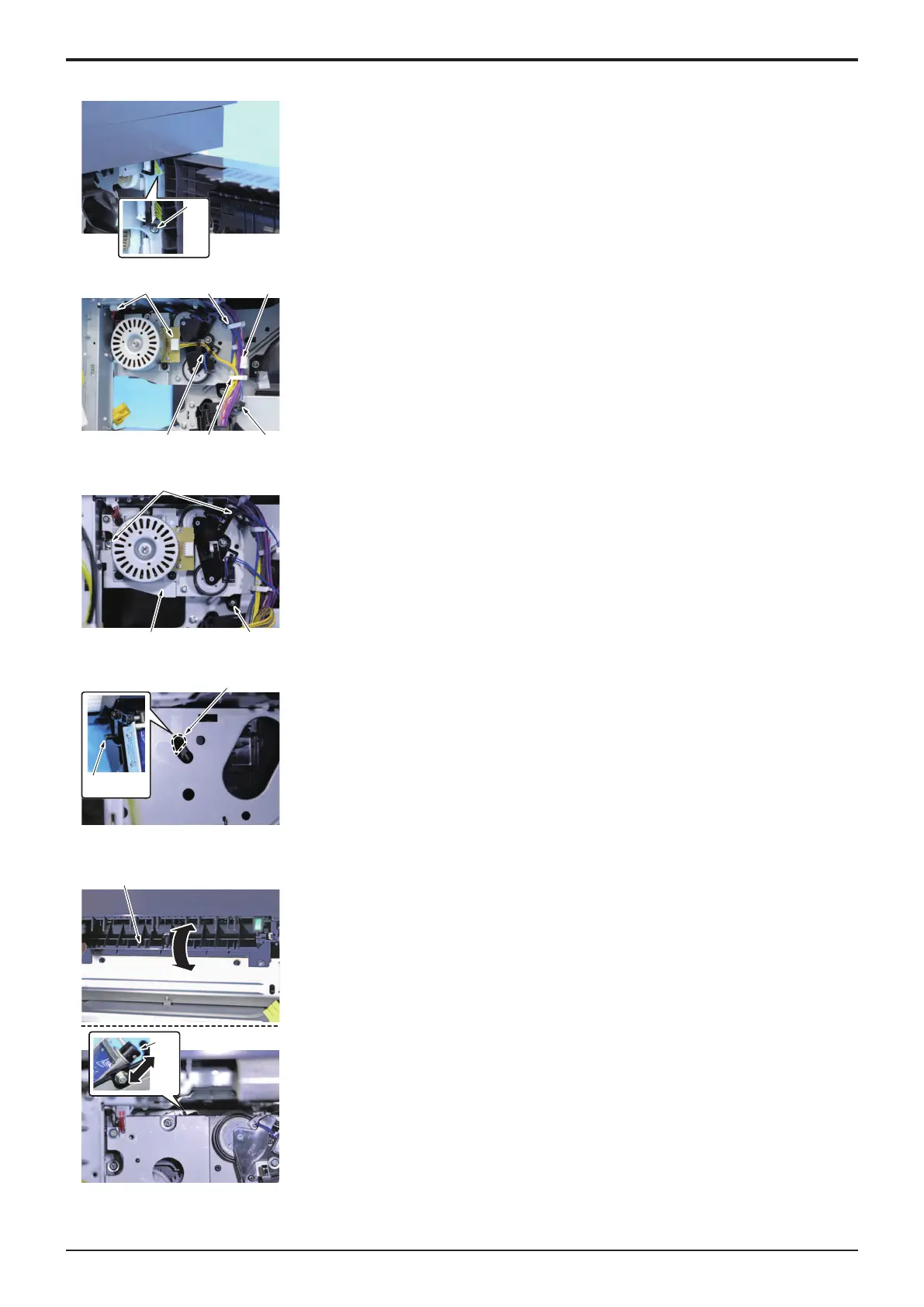

6. Remove the screw [1].
[1]
[1]
[3]
[3]
[3]
[2]
7. Remove the harness from the two wire saddles [1] and the harness guide [2].
8. Disconnect four connectors [3].
[1]
[2]
[1]
9. Remove three screws [1], and remove the fusing drive unit [2].
[2]
[1]
10. NOTE
▪ When installing the fusing drive unit, make sure insert the tip of the
exit path switch solenoid lever [1] to the position [2] as shown in the
illustration (placing state the edge of lever [1] on the guide in the
back of the plate).
[1]
[2]
11. NOTE
▪ After installing the fusing drive unit, check that the edge of the exit
path switch solenoid [2] operates together, moving the switchback
guide [1] up and down.
12. To reinstall, reverse the order of removal.
Y119930-3
