F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-37

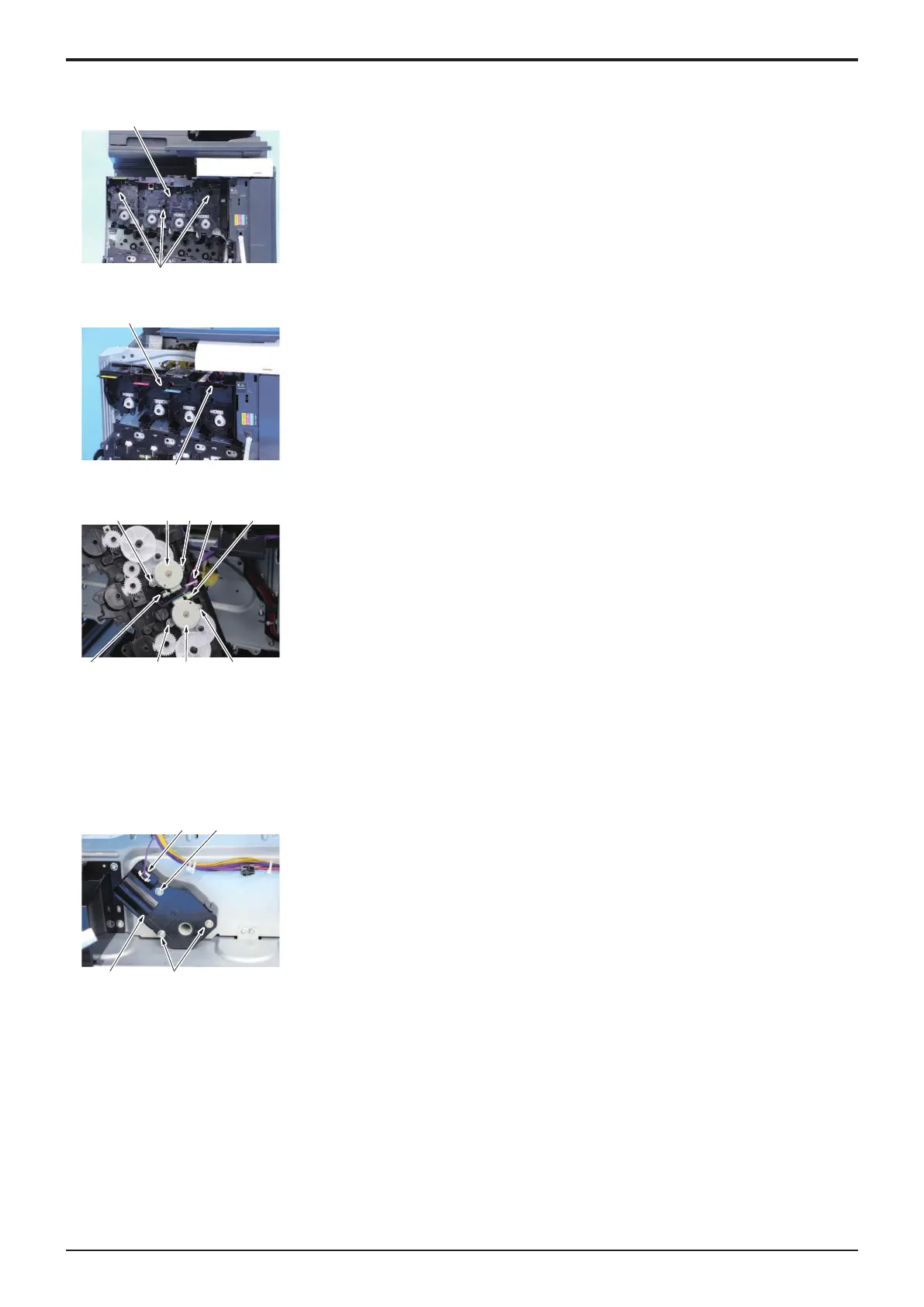

4. Remove the exit cover.
F.4.1.4 Exit cover
[2]
[1]
5. Remove three screws [1], and remove the toner supply unit [2].
[1]
[2]
6. Remove the harness from the harness guide [1].
7. Remove the toner supply unit [2].
[1]
[2]
[2][4]
[3]
[5] [5][7]
[6]
8. Remove the harness from the wire saddle [1].
9. Remove two screws [2] and the connector [3], and remove the toner supply
motor/YM [4].
10. Remove two screws [5] and the connector [6], and remove the toner supply
motor/CK [7].
11. To reinstall, reverse the order of removal.
4.4.5Tray 1 lift-up motor (M6)
1. Remove the rear cover.
F.4.1.3 Rear cover
2. Remove the DC power supply.
F.4.3.4 DC power supply (DCPS)
[1]
[2]
[2]
[3]
3. Disconnect the connector [1].
4. Remove three screws [2], and remove the tray 1 lift-up motor [3].
5. To reinstall, reverse the order of removal.
4.4.6Document main motor (M8)
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
Y119930-3
