E MAINTENANCE > 3. Periodical replacement procedure
E-12
[1]
[2]

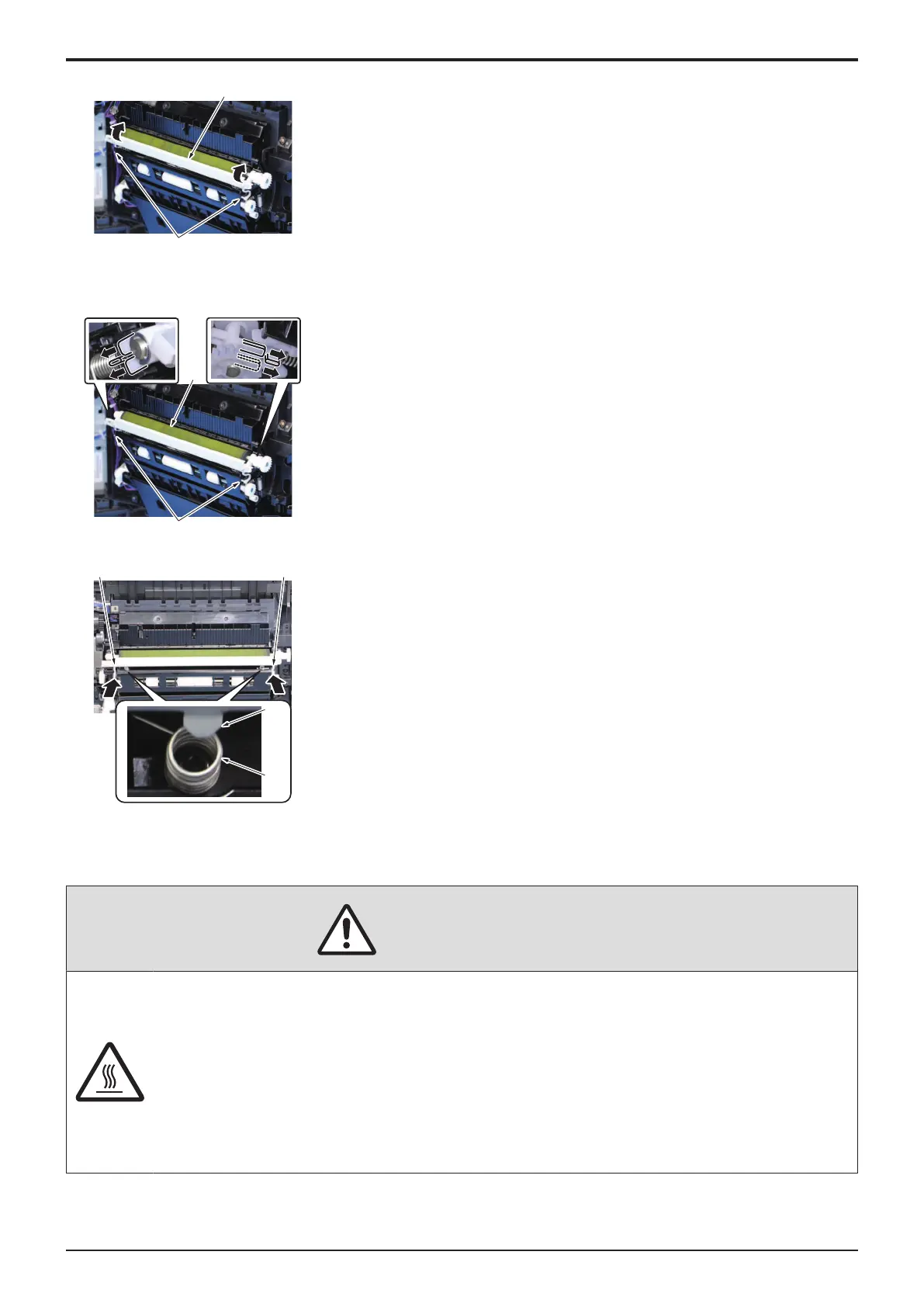

2. Unlock the lock levers [1] of the transfer roller unit (at two places).
3. Holding onto the lock levers [1] (at two places), remove the transfer roller unit
[2].
(2)Reinstall procedure
[1]
[2]
1. Holding onto the lock levers [1] (at two places), mount the new transfer roller
unit [2].
NOTE
▪ The transfer roller unit must be engaged in the transfer roller unit
supporter.
[2]
[1]
[3]
[3]
2. Insert two protrusions [1] of the transfer roller unit into the center of the
pressure spring [2].
3. Lock the lock levers [3] (at two places).
NOTE
▪ Make sure that the levers are locked in position both at front and
rear.
4. Close the right door.
5. Carry out the [Service Mode] -> [Counter] -> [Life] -> [New Release].
3.1.12Replacing the fusing unit
CAUTION
• The temperature gets high in the vicinity of the fusing unit.
You may get burned when you come into contact with the
area.
Before replacement operations, make sure that more
than 20 minutes have elapsed since the main power
switch was turned off.
1. Open the right door.
Service Manual
Y119930-3
