d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-25

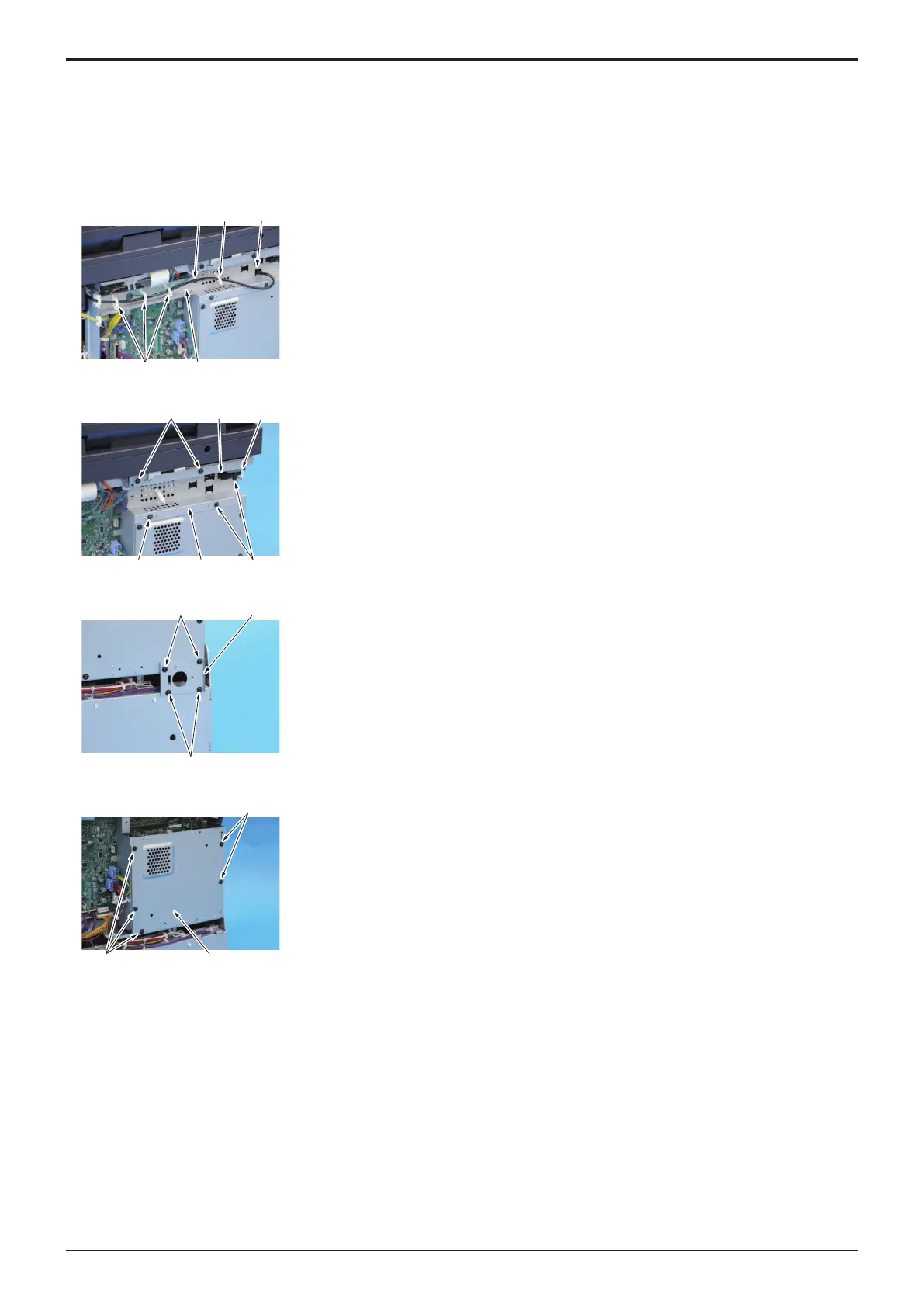

4.3.2Storage board (STRGB)
NOTE
▪ Never use the combination of the used storage board removed from another machine and the CPU board. This combination
causes corruption of stored data. Note that the combination of the original storage board and the used CPU board removed from
another machine also causes the same problem.
▪ Never replace the storage board and CPU board with new one at the same time.
1. Remove the rear cover.
F.4.1.3 Rear cover
[1] [4]
[1]
[2][3]
2. Remove the cable and ground wire from four wire saddles [1], and disconnect
the connector [2].
3. Remove the screw [3], and remove the plate [4].
[1]
[3]
[3]
[2]
[4]
[3]
4. Remove the cable from the edge cover [1], and disconnect the connector [2].
5. Remove five screws [3], and remove the plate [4].
[2]
[1]
[1]
6. Remove four screws [1], and remove the plate [2].
[1]
[1]
[2]
7. Remove five screws [1], and remove the plate [2].
8. Remove the fax kit.
F.5.1 Fax Kit
Y119930-3
Service Manual
