F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-46
[2]
[1]

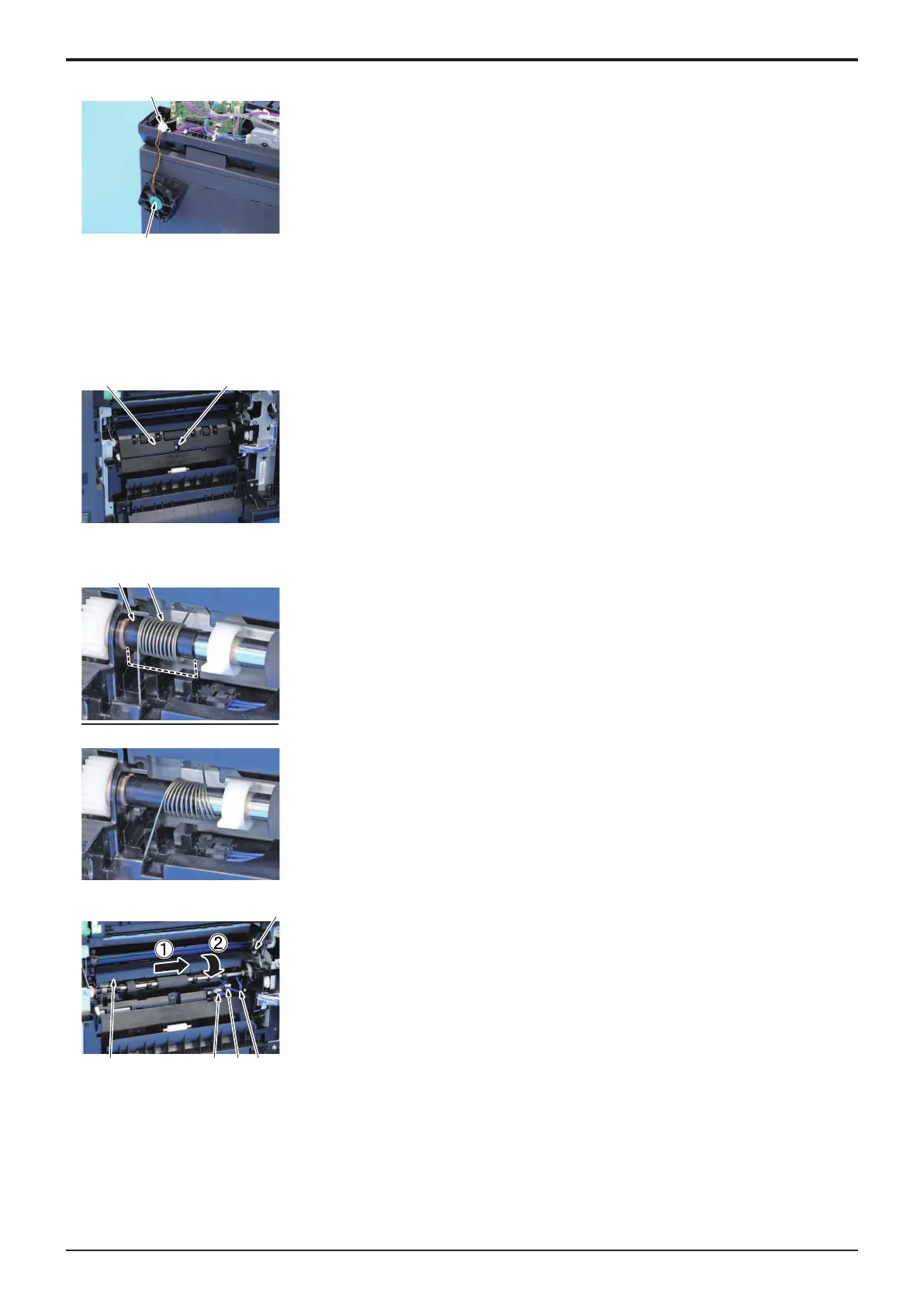

3. Disconnect the connector [1], and remove the Df cooling fan motor [2].
4. To reinstall, reverse the order of removal.
4.7Others
4.7.1IDC sensor (IDCS1)
1. Open the right door.
[1]
[2]
2. Remove the screw [1], and remove the cover [2].
[2]
[1]
< OK >
< NG >
3. NOTE
▪ When mounting the cover, make sure the spring [1] locates within
the spring supporting [2].
[4]
[1]
[2][5]
[3]
4. Disconnect connector [1], and remove the harness from the harness guide [2]
and the wire saddle [3].
5. Remove the screw [4], and remove the IDC sensor assy [5].
Service Manual
Y119930-3
