d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-30
[3]
[2] [1][3]

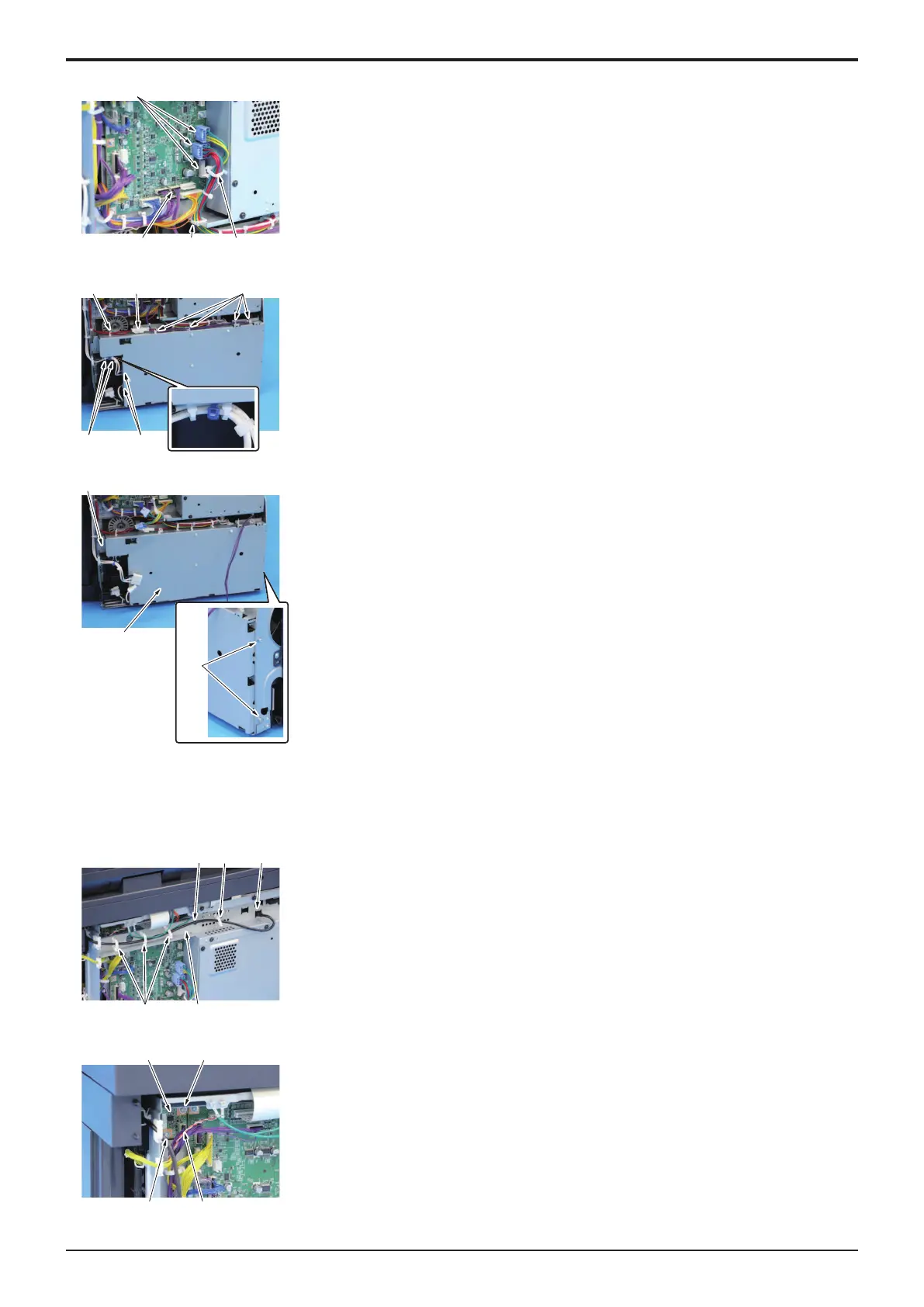

3. Remove the harness from the wire saddle [1] and the edge cover [2], and
disconnect four connectors [3].
[1]
[1][1] [2]
[2]
4. Remove the harness from seven wire saddles [1], and disconnect three
connectors [2].
NOTE
▪ When installing the DC power supply, make sure the position of the
tie band.
[1]
[2]
[1]
5. Remove three screws [1], and remove the DC power supply [2].
6. To reinstall, reverse the order of removal.
4.3.5Backup board (ERB)
1. Remove the rear cover.
F.4.1.3 Rear cover
[1] [4]
[1]
[2][3]
2. Remove the cable and ground wire from four wire saddles [1], and disconnect
the connector [2].
3. Remove the screw [3], and remove the plate [4].
[2]
[2]
[3]
[1]
4. Disconnect the connector [1].
5. Remove two screws [2], and remove the backup board [3].
Service Manual
Y119930-3
