F DISASSEMBLY/REASSEMBLY > 11. CU-202 (Only for Europe)
F-65
[2]
[1]
[1]

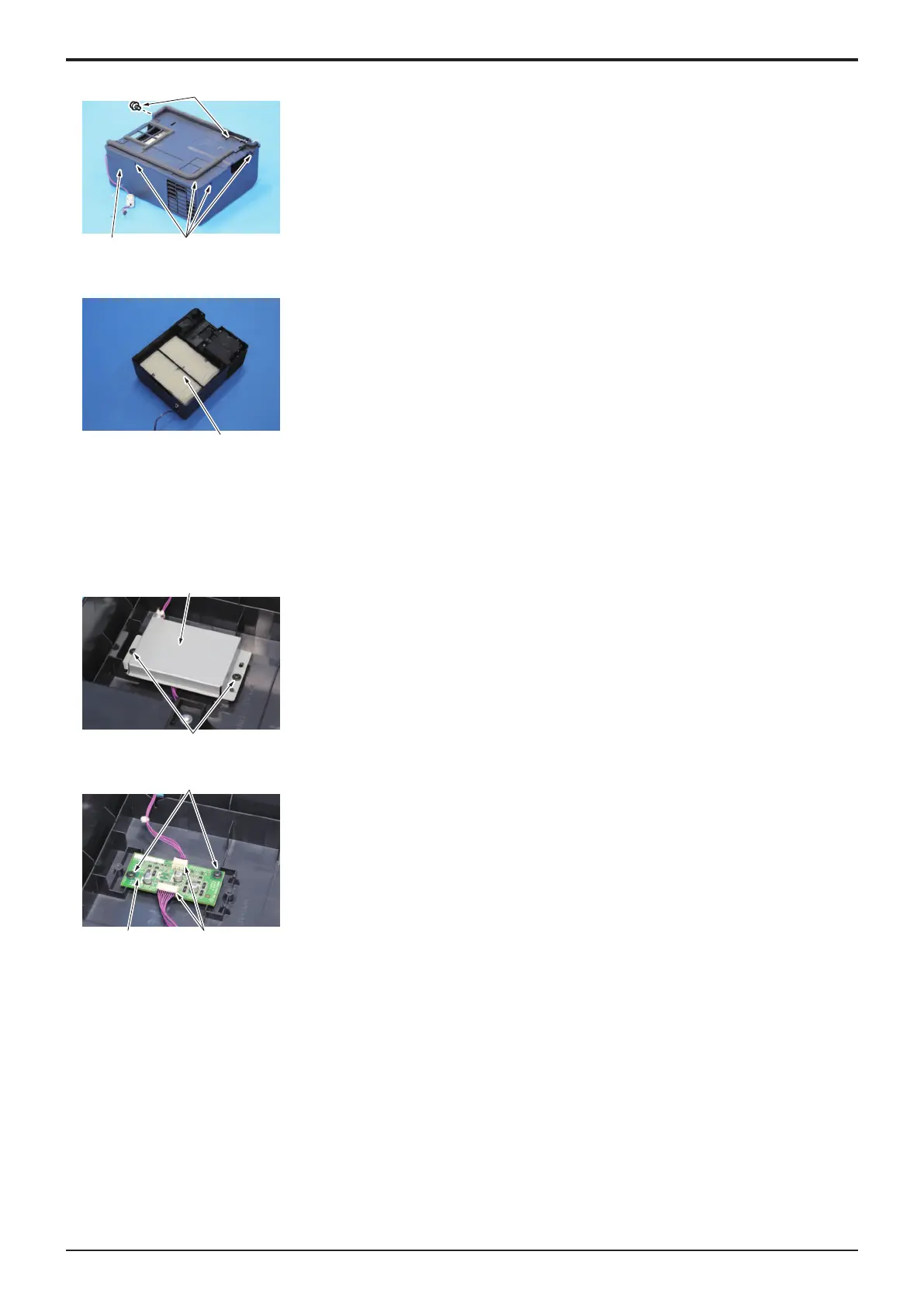

5. Remove six screws [1], remove the clean unit cover assy [2].
[1]
6. Remove the UFP filter [1].
11.3Clean unit drive board (CUDB)
1. Remove the clean unit.
F.11.1 Clean unit (CU-202)
2. Remove the UFP filter.
F.11.2 UFP filter
[2]
[1]
3. Remove two screws [1], and remove the cover [2].
[3]
[1]
[2]
4. Disconnect two connectors [1], and remove two screws [2].
5. Remove the clean unit drive board [3].
6. To reinstall, reverse the order of removal.
11.4Exhaust fan/1 (FM1)
1. Remove the clean unit.
F.11.1 Clean unit (CU-202)
2. Remove the UFP filter.
F.11.2 UFP filter
