d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 6. PF-P20/PF-P21
F-53
[2]
[1]

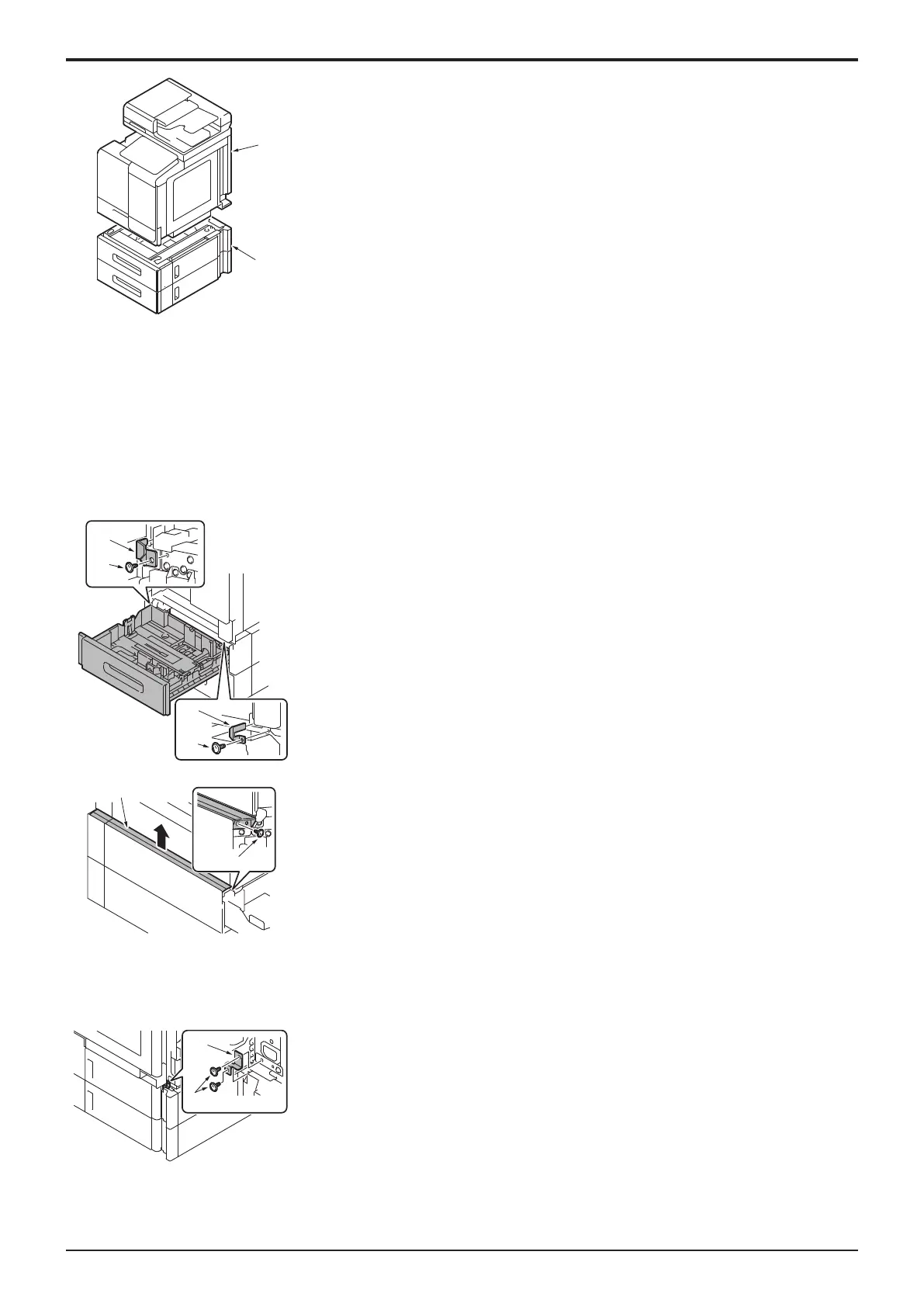

11. Lift the main body [1] and then remove the paper feed unit [2] from the main
body.
6.5Paper Feed Unit (PF-P21)
NOTE
â–ª Assign an appropriate number of persons for moving the machine.
â–ª Whenever removing or reinstalling the paper feed unit, be sure first to unplug the power cord of the printer from the power outlet.
1. Remove the rear cover.
F.4.1.3 Rear cover
2. Remove the tray 1.
F.4.1.7 Tray1
3. Slide out the tray 2.
[1]
[2]
[1]
[2]
4. Remove two screws [1], and remove the two plates [2].
[2]
[1]
5. Remove the screw [1], and remove the cover [2].
6. Slide the tray 2 back in.
7. Install the tray 1.
[2]
[1]
8. Remove two screws [1], and remove the plate [2].
Y119930-3
Service Manual
