E MAINTENANCE > 3. Periodical replacement procedure
E-5
3. Periodical replacement procedure
NOTE
▪ The alcohol described in the cleaning procedure of maintenance represents the isopropyl alcohol.
3.1d-Color MF4003/MF3303

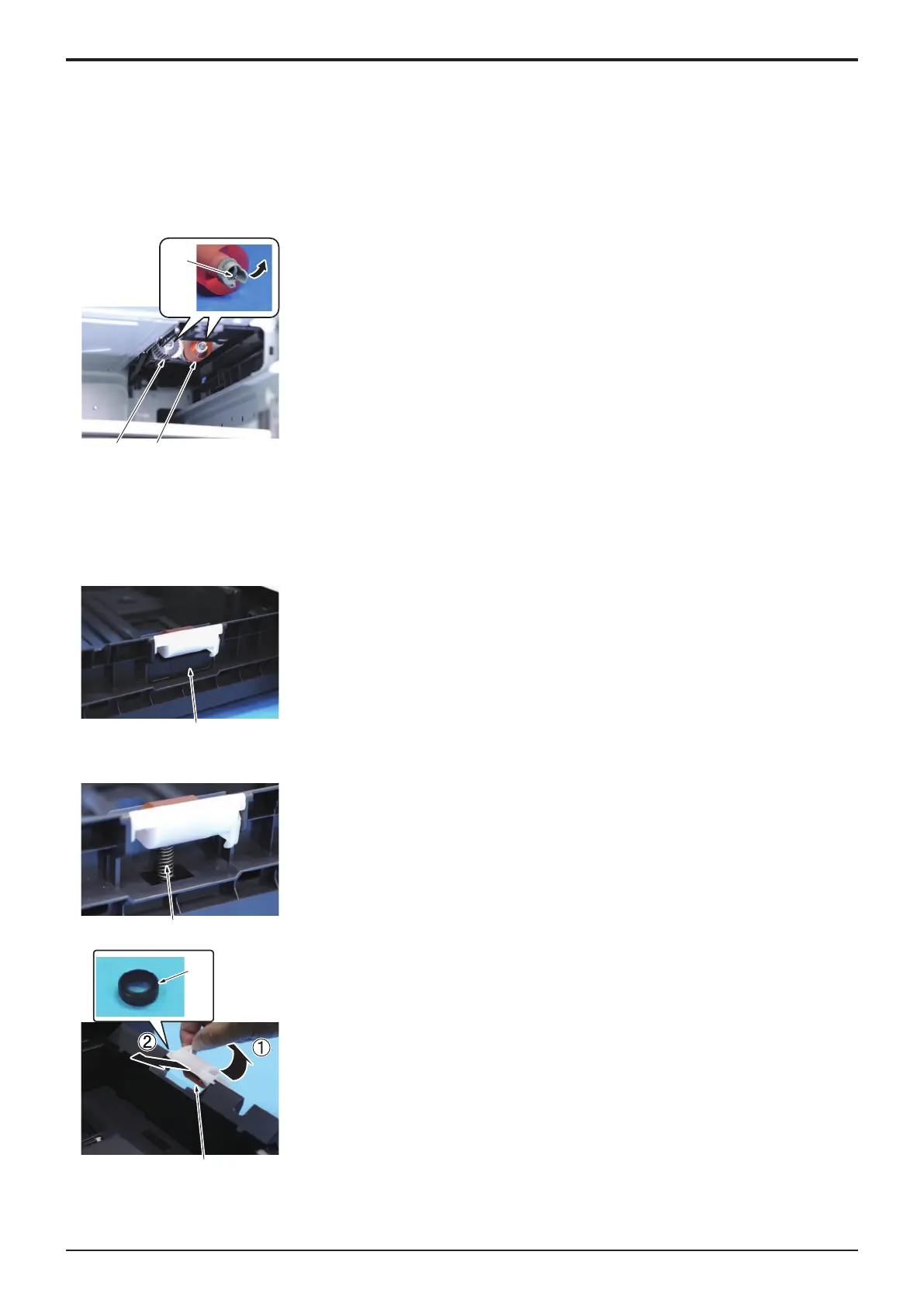

3.1.1Replacing the tray 1 pick-up roller, tray 1 feed roller
1. Remove the tray 1.
F.4.1.7 Tray1
[3] [2]
[1]
2. Release the tab [1] of each roller, and remove the tray 1 feed roller [2] and tray
1 pick-up roller [3].
3. To reinstall, reverse the order of removal.
4. Select [Service Mode] -> [Counter] -> [Life] and clear the count of [1st Feed Count].
3.1.2Replacing the tray 1 separation roller
1. Slide out the tray 1.
[1]
2. Remove the cover [1].
[1]
3. Remove the spring [1].
[1]
[2]
4. Remove the tray 1 separation roller assy [1].
NOTE
▪ Make sure not to lose the collar [2] when removing the tray 1
separation roller assy.
Y119930-3
Service Manual
