M PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR LAYOUT
DRAWING
M-14
d-Color MF4003/MF3303

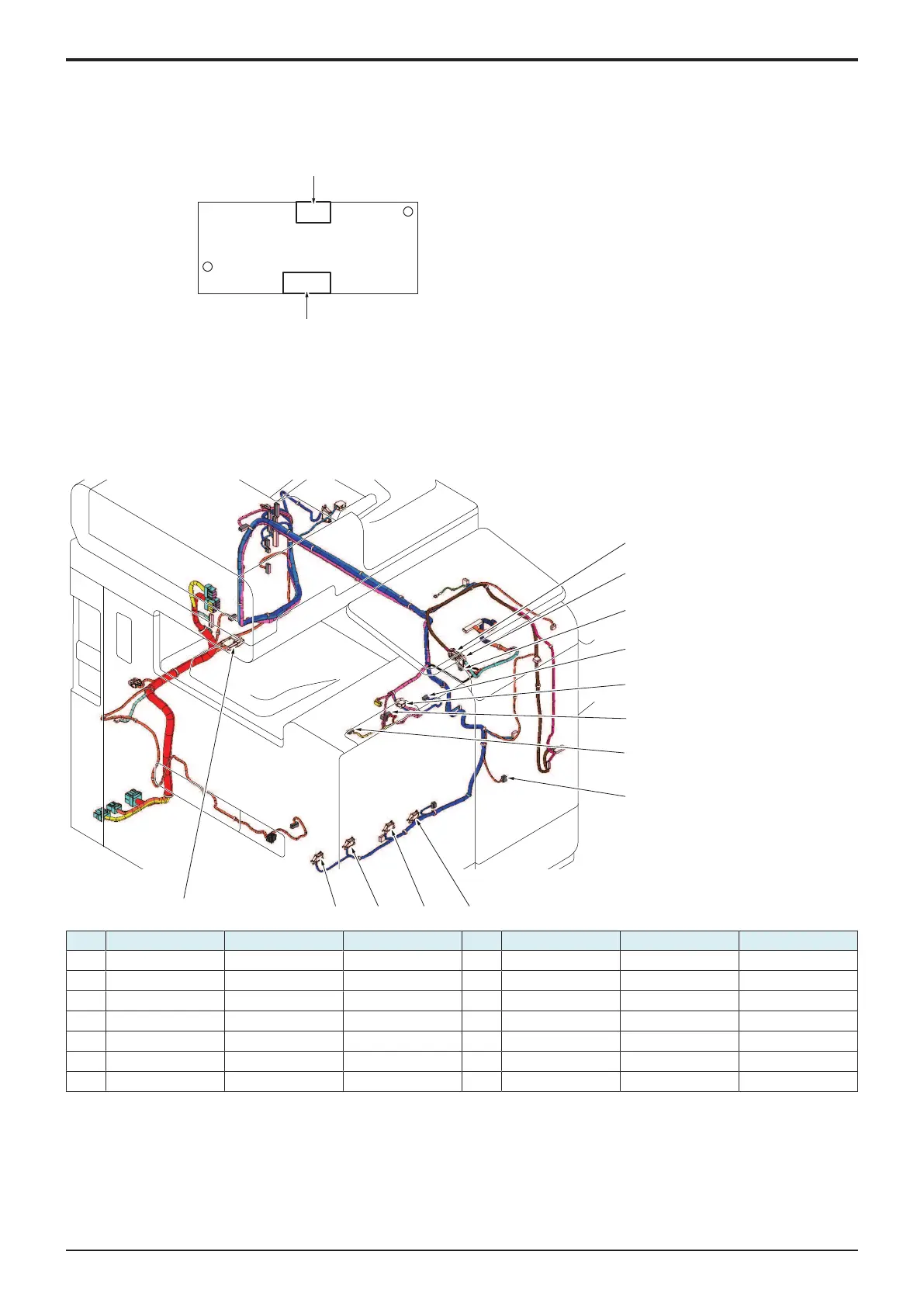

2.1.6 CU-202
Clean unit drive board (CUDB)
CN1 (6pin)
CN2 (9pin)
2.2RELAY CONNECTOR LAYOUT DRAWING
2.2.1d-Color MF4003/MF3303
(1)Main body
[7]
[6]
[5]
[10] [9]
[8]
[11][12]
[13]
[4]
[3]
[2]
[1]
No. CN No. Pin Location No. CN No. Pin Location
[1] CN53 6 Pin 2-W [2] CN52 10 Pin 2-W
[3] CN103 3 Pin 11-J [4] CN102 3 Pin 10-J
[5] CN75 2 Pin 4-D [6] CN101 3 Pin 10-J
[7] CN100 3 Pin 10-J [8] CN37 3 Pin 11-D
[9] CN6 5 Pin 7-J [10] CN5 5 Pin 7-J
[11] CN8 5 Pin 8-J [12] CN7 5 Pin 8-J
[13] CN36 2 Pin 9-R - - - -
Service Manual
Y119930-3
