F DISASSEMBLY/REASSEMBLY > 6. PF-P20/PF-P21
F-54
[1]

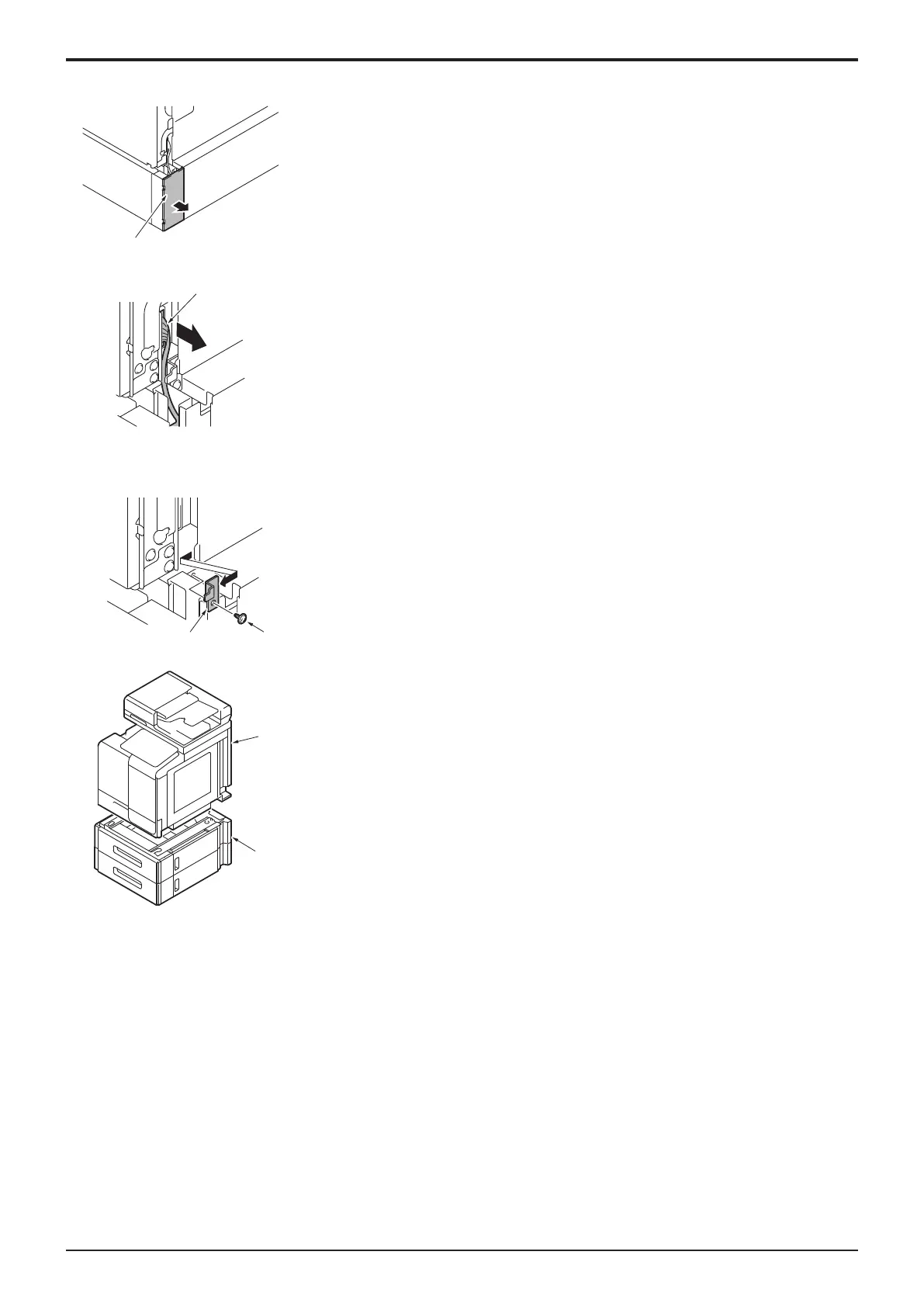

9. Remove the cover [1].
[1]
10. Disconnect the connector [1].
[2] [1]
11. Remove the screw [1], and remove the plate [2].
[2]
[1]
12. Lift the main body [1] and then remove the paper feed unit [2] from the main
body.
6.6PC control board (PCCB) (PF-P20/PF-P21)
1. Remove the rear cover.
F.6.1 Rear cover (PF-P20)
F.6.2 Rear cover (PF-P21)
2. Remove the drive motor.
Service Manual
Y119930-3
