I SERVICE MODE > 16. FAX
I-84
d-Color MF4003/MF3303

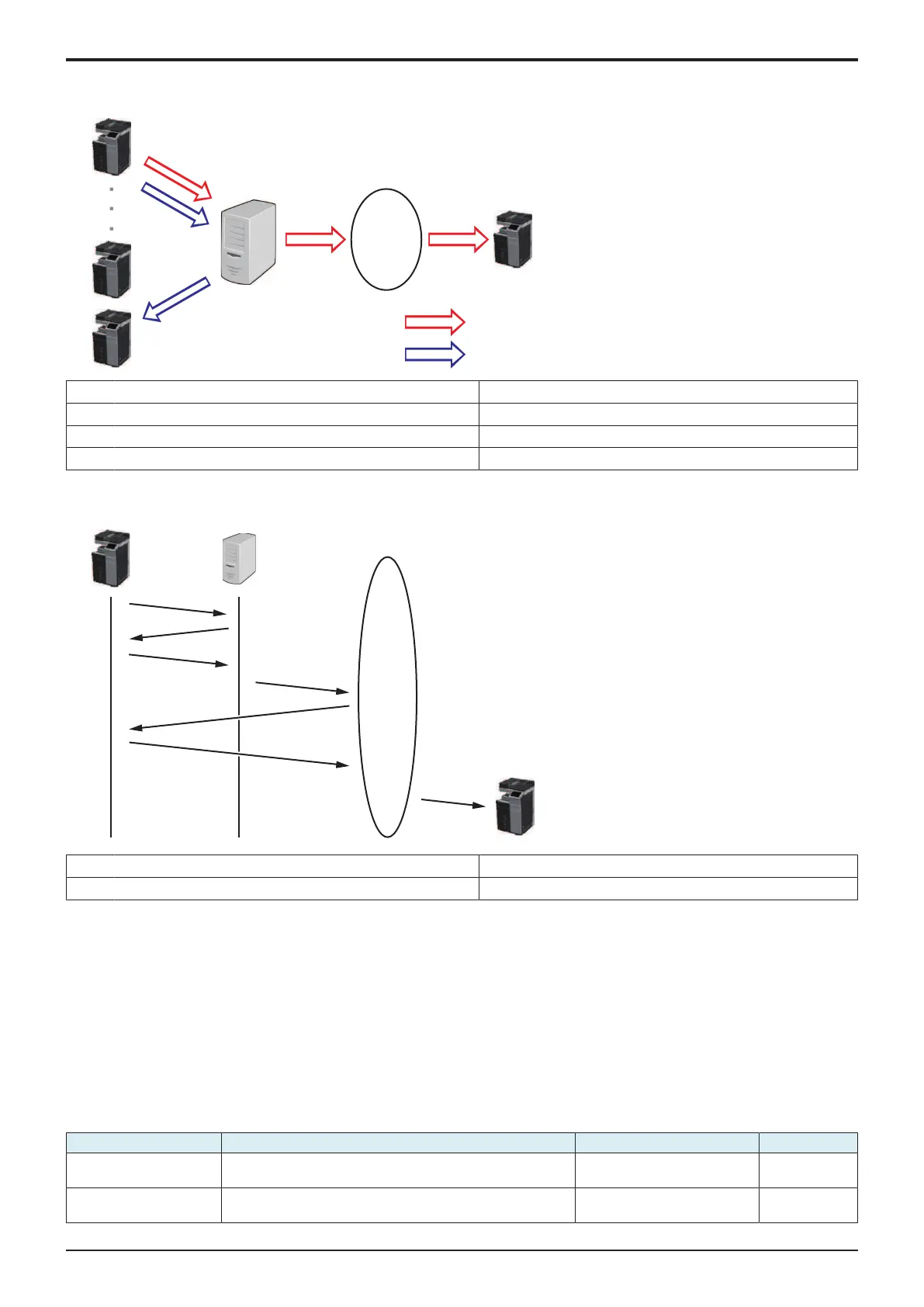

16.1.1PBX operating environment
Overview
࣭࣭࣭
[6]
[7]
[2]
[3]
[4]
[5]
[1]
[1] Fax source [2] PBX (Private Branch Exchange)
[3] Public line [4] Fax destination (external line)
[5] Fax destination (internal line) [6] External fax communication
[7] Internal fax communication - -
External fax communication flow
①
②
③④
⑤
⑥
⑦
[1] [2] [3]
[4]
[1] Fax source [2] PBX (Private Branch Exchange)
[3] Public line [4] Fax destination (external line)
<External communication flow>
1. Call from the fax source to the PBX. (In an off-hook state)
2. From the PBX, a PBX dial tone signal is sent to a fax source, which informs that connection is established.
3. The fax source detects the PBX dial tone signal, and sends an external number.
• Make settings in [Network Settings4] to properly detect the PBX dial tone signal.
4. When the external number is received, the PBX connects to the public line.
5. From the public line, the 1st dial tone signal is sent to the fax source, which informs that connection is established.
6. The fax source detects the 1st dial tone signal, and sends a fax destination number.
• To properly detect the 1st dial tone signal, make settings in [Network Settings5].
7. The public line connects to the fax destination, and starts the fax communication.
16.2Modem/NCU
V34
Setting item Contents Setting value Default setting
RX Max. Bit Speed To set the max. bit speed for reception in V.34. 2400 to 33600 bps
(step: 2400 bps)
33600 bps
TX Max. Bit Speed To set the max. bit speed for transmission in V.34. 2400 to 33600 bps
(step: 2400 bps)
33600 bps
