Olivetti d-Color MF4003 User Manual

F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-12
d-Color MF4003/MF3303

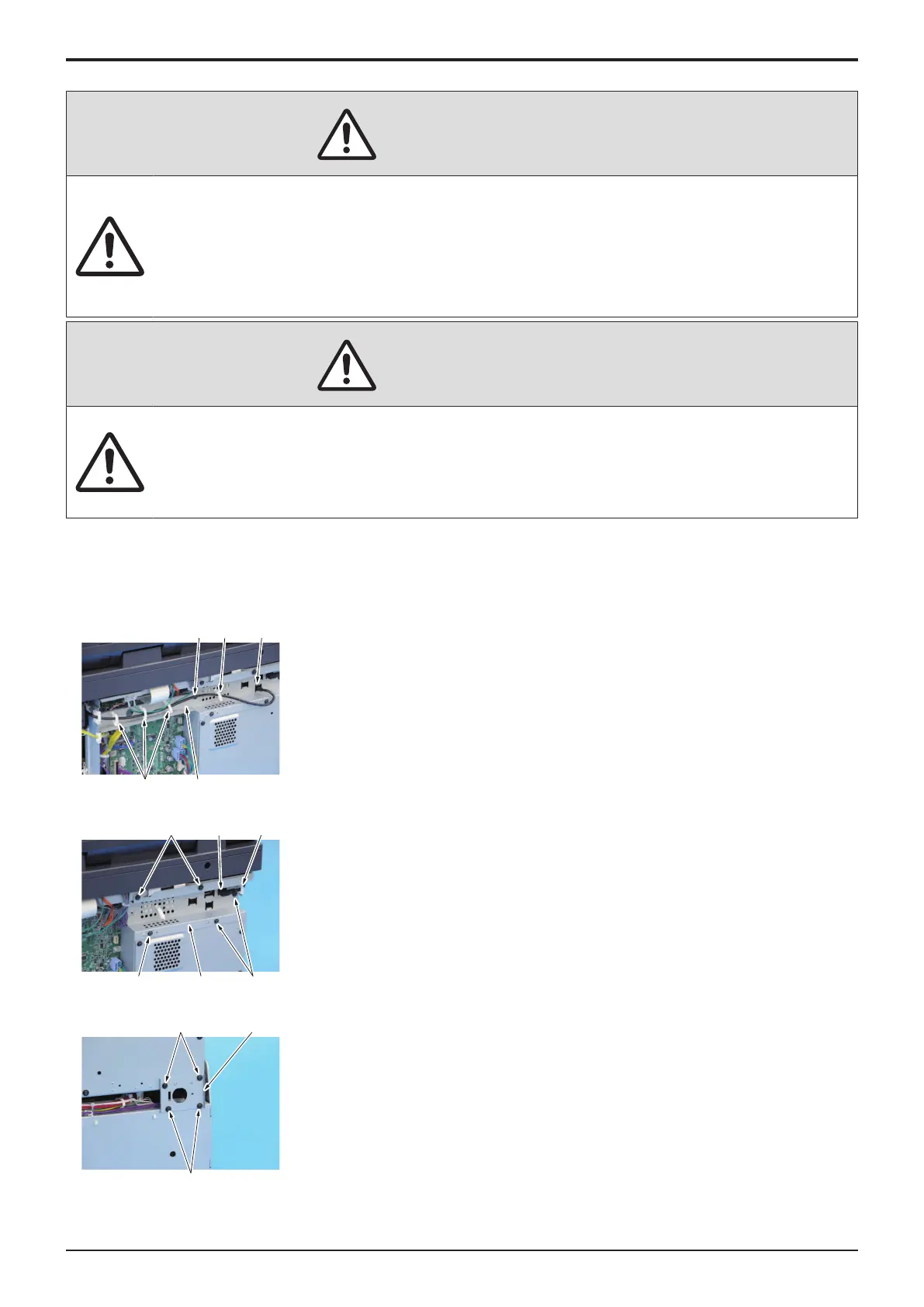

4.2.2PH unit
CAUTION
• Do not replace the printer head unit with the power cord
being connected.
Laser beam generated during the above mentioned
activity may cause blindness.
CAUTION
• Do not disassemble or adjust the printer head unit.
Laser beam generated during the above mentioned
activity may cause blindness.
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Remove the left cover.
F.4.1.2 Left cover
[1] [4]
[1]
[2][3]
4. Remove the cable and ground wire from four wire saddles [1], and disconnect
the connector [2].
5. Remove the screw [3], and remove the plate [4].
[1]
[3]
[3]
[2]
[4]
[3]
6. Remove the cable from the edge cover [1], and disconnect the connector [2].
7. Remove five screws [3], and remove the plate [4].
[2]
[1]
[1]
8. Remove four screws [1], and remove the plate [2].
Service Manual
Y119930-3
