G MECHANICAL ADJUSTMENT > 1. d-Color MF4003/MF3303
G-1
d-Color MF4003/MF3303
GMECHANICAL ADJUSTMENT
1.
d-Color MF4003/MF3303

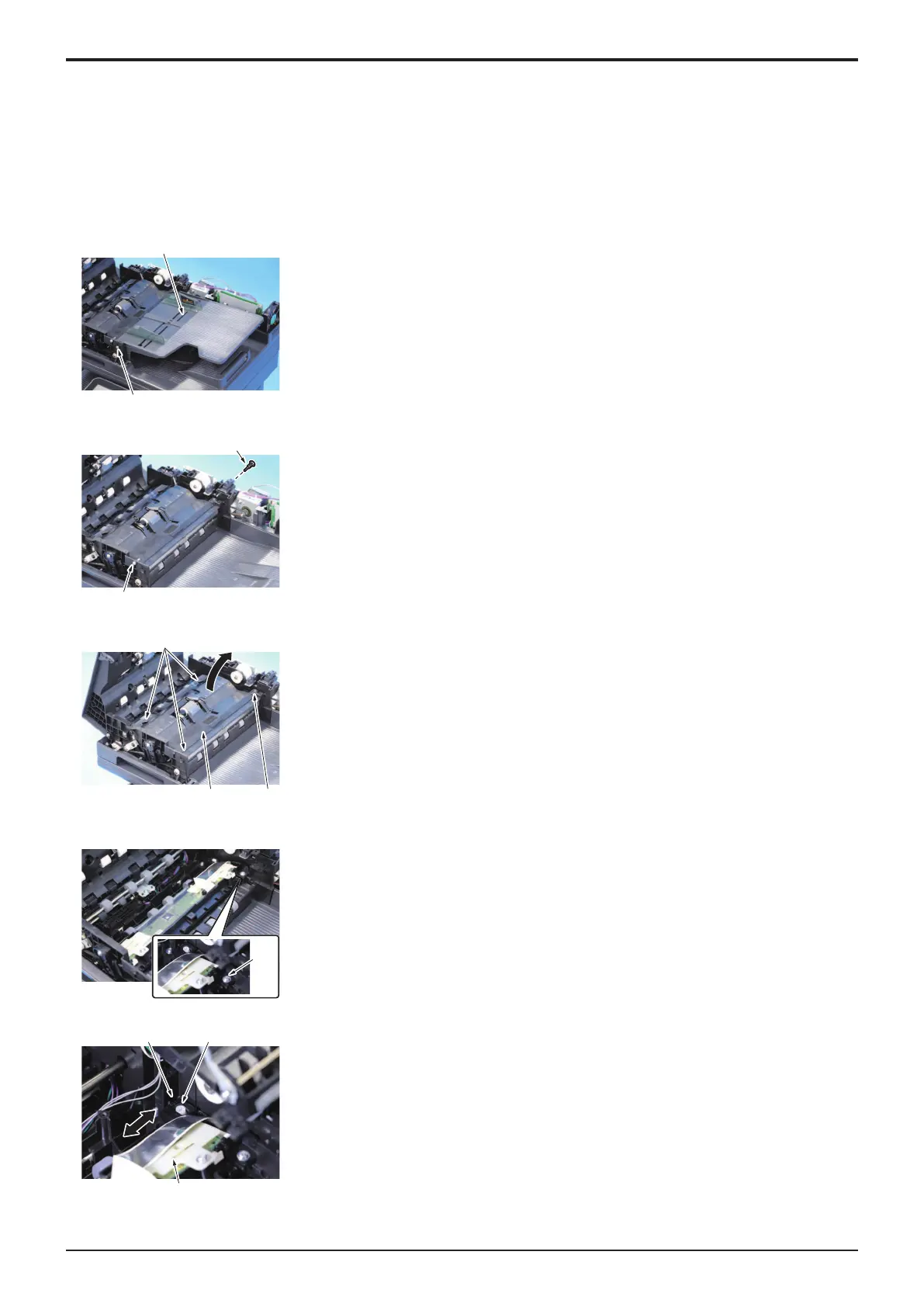

1.1Adjusting CIS reading start position
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
2. Remove the front cover (ADF).
F.4.1.9 Front cover (ADF)
[2]
[1]
3. Remove the screw [1], and remove the document feed tray [2].
[1]
[1]
4. Remove two screws [1].
[1]
[2] [1]
5. Remove four screws [1], and evacuate the DF lower guide assy [2].
[1]
6. Loosen the screw [1].
[1][2]
[3]
7. Rotate the adjustment screw [1], and slide the DF CIS module assy [3] while
referring the graduation [2] to make adjustment.
8. After completing the adjustment, tighten the screw loosened in step 6.
Y119930-3
Service Manual
