Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 7. UK-221
F-58
7. UK-221

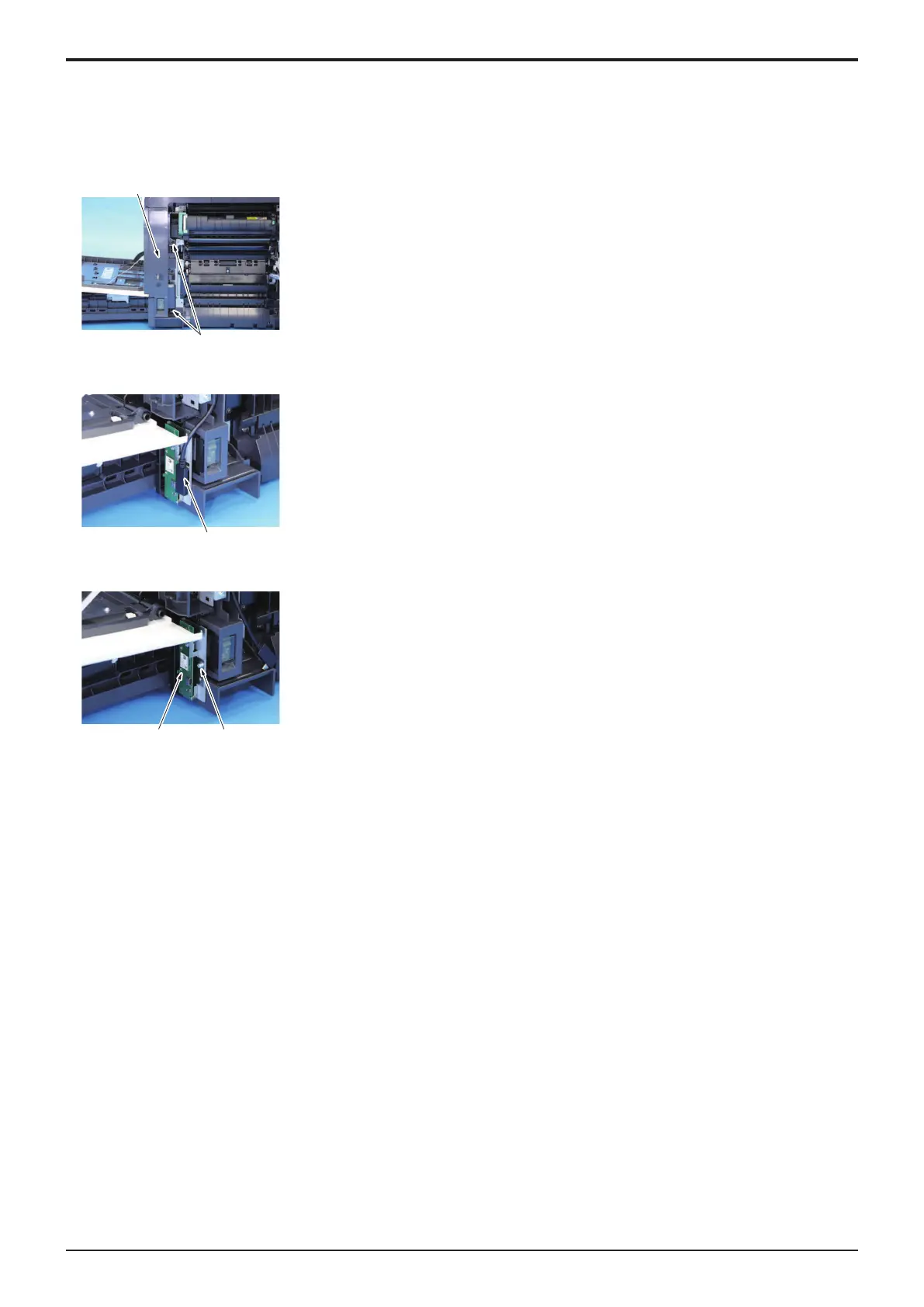

7.1Wireless LAN board (UK-221)
1. Slide out the tray 1.
2. Open the front door.
3. Open the right door.
[1]
[2]
4. Remove two screws [1], and remove the front right cover/1 [2].
[1]
5. Disconnect the USB cable [1].
[1][2]
6. Remove the screw [1], and remove the wireless LAN board [2].
7. To reinstall, reverse the order of removal.
Service Manual
Y119930-3
