Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
E MAINTENANCE > 3. Periodical replacement procedure
E-11
[1]
[2]

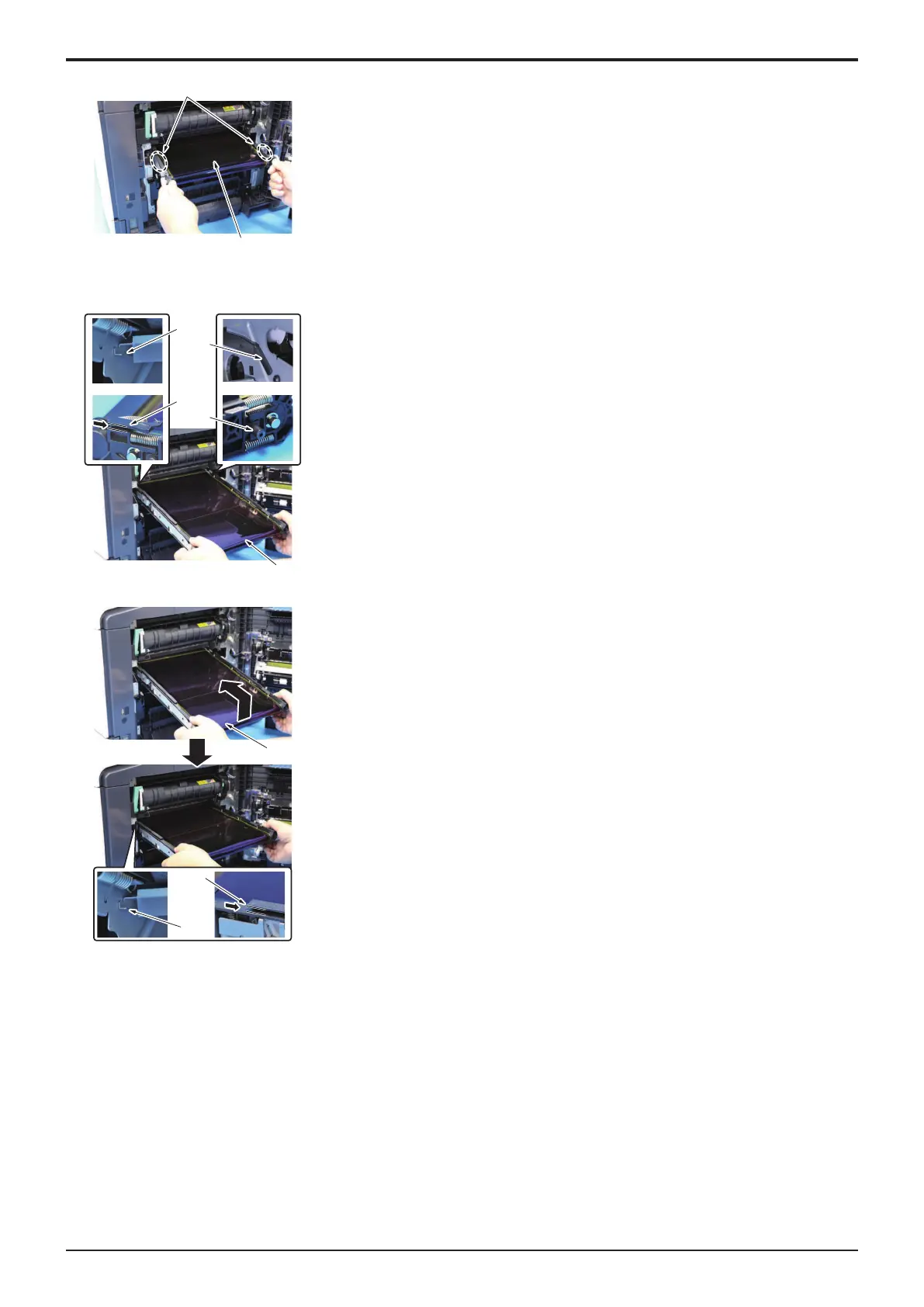

8. Hold the position [1] and remove the transfer belt unit [2].
NOTE
▪ Do not touch the surface of the transfer belt unit.
▪ Cover the transfer belt unit with something such shade cloth to
protect its surface from dust or foreign matter.
▪ If accidentally touched the surface of the transfer belt, lightly wipe
it using the Hydro-wipe (65AA-99##). Do not clean with alcohol or
water.
(2)Reinstall procedure
[2]
[1]
[4]
[3]
[5]
1. Insert the transfer belt unit [1] so that the left groove [2] in the tip is along the
rail [3], and the right shaft [4] on the tip is along the rail [5].
NOTE
▪ Insert the transfer belt unit with care not to allow its docking gear
to be damaged by hitting it against the rail or associated part.
▪ Do not touch the surface of the transfer belt unit.
▪ If accidentally touched the surface of the transfer belt, lightly wipe
it using the Hydro-wipe (65AA-99##). Do not clean with alcohol or
water.
[2]
[3]
[1]
2. Hold up the transfer belt [1], and insert the transfer belt unit so that the
groove [2] is along the rail [3].
3. To reinstall, reverse the order of removal.
4. Carry out the [Service Mode] -> [Counter] -> [Life] -> [New Release].
5. Select [Service Mode] -> [Machine] -> [Color Registration Adjustment] to adjust the value for correcting the color shift to 0.
6. Select [Service Mode] -> [Imaging Process Adjustment] -> [Stabilizer] -> [Initialize + Image Stabilization] and perform the function.
7. Select [Service Mode] -> [Machine] -> [Main Scanning Direction Zoom] to adjust the zoom in main scanning direction.
8. Select [Service Mode] -> [Imaging Process Adjustment] -> [Stabilizer] -> [Stabilization Only] and perform the function.
9. Repeat the step 6 and 7 until the Main Scanning Direction Zoom Adjustment is met.
10. Select [Service Mode] -> [Machine] -> [Color Registration Adjustment] and perform the adjustment for correcting the color shift.
3.1.11Replacing the transfer roller unit
(1)Removal procedure
1. Open the right door.
Y119930-3
